    24VDC 42mm Diameter Brushless DC Motor 42CBL Series BLDC Motor For Home

    Ask Lasest Price
    Brand Name : Junqi
    Model Number : 42CBL
    Certification : CE, RoHs, REACH
    Price : USD6-12/PC Negotialbe
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000set/month
    Delivery Time : 4weeks after get payment (base on order),
    • Product Details
    • Company Profile

    24VDC 42mm Diameter Brushless DC Motor 42CBL Series BLDC Motor For Home

    Junqi 24VDC 42mm Diameter Brushless DC Motor, 42CBL Series BLDC Motor For Home Applicance


    Quick Details:

    Model

    Frame

    Size

    Body

    Length

    (mm)

    Rated

    Voltage

    (VDC)

    Rated

    Torque

    (Nm)

    Rated

    Speed

    (RPM)

    42CBL6042mm60240.0685900
    42CBLA6042mm60240.123200
    42CBL6642mm66240.154000

    Features:

    1. Wide speed range, Smooth torque output

    2. Excellent Speed Stability

    3. Compact and High Power

    4. High Efficiency and Energy-Saving.


    Characteristics:


    ItemSpecification
    Winding TypeStar connection
    Hall Effect AngleElectrical Angle of 120 degree
    Radial Play0.02mm@450g
    Axial Play0.08mm@450g
    Max radial force15N( 10mm from the flange)
    Max axial force10N
    Dielectric Stength600VAC/1S
    Insulation Resistance100MΩ,500VDC
    Ambient Temperature-20℃~+50℃
    Insulation ClassClass B

    Electric Connection:

    Pin No.ColorGaugeFunctions
    1RedUL1430 AWG26Vcc Hall +5Vdc to +24VDC
    2BlueHall A
    3GreenHall B
    4WhiteHall C
    5BlackGND Hall
    6YellowUL1430 AWG22Phase U
    7RedPhase V
    8BlackPhase W

    Electricl Specification:

    ItemUnit42CBL6042CBLA6042CBL66
    Number of poles8
    Number of Phase3
    Rated VoltageVDC24
    Rated TorqueN.m0.0680.120.15
    Rated SpeedRPM590032004000
    Peak TorqueN.m0.0820.1440.18
    Peak CurrentA6.36.711.2
    Line to Line resistanceohms@20℃0.61.20.75
    Line to Line InductancemH0.631.60.8
    Torque ConstantmN.m81.6144180
    Rotor Inertiag.cm2444455
    Motor Lengthmm606060
    Weightg350350440

    **Notes: The motor can be designed &manufactured with customized request!!

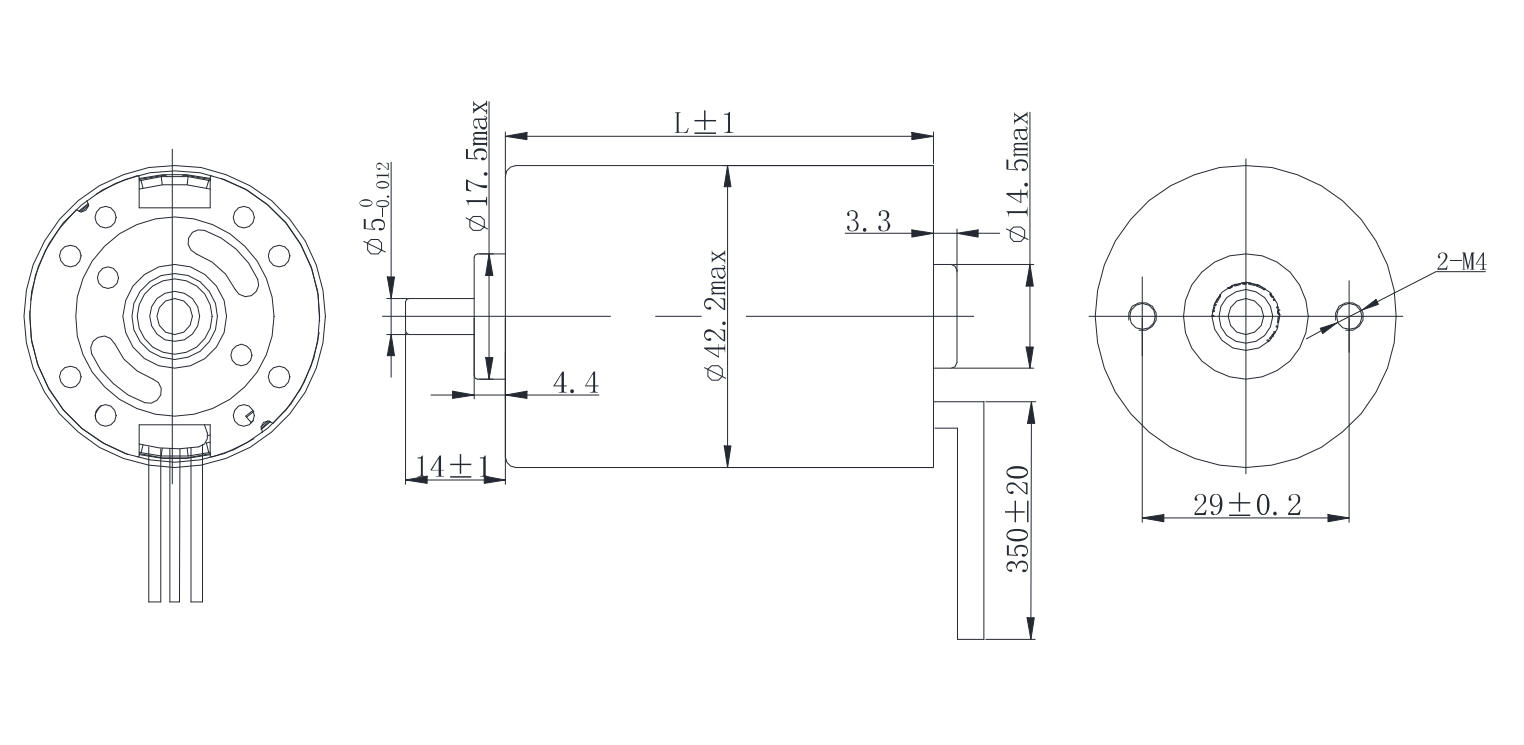

    Mechanical Size:





    FAQ:


    Q:How long is the lead time of orders?

    A:Lead time : 4 weeks after receive the deposit


    Q:What is your trade Assurance?

    A:100% product quality protection.

    100% product on time shipment protection.

    100% payment protection for your covered amount.


    Q: What’s Moq?

    A: 5PCS. Small Order Welcome.


    Q:Do You Make Customized Product?

    A:Yes,We Accpet IT.


    Q:About After Sale Serive?

    A: After Sales Services 24/7.


    Q: What should I do if I'm not satisfied with your product?

    A: If there are defects in its quality, we can exchange a good one for you.

    Generally, this problem is rare.


    Q:What is the payment term?

    A:T/T and Paypal is used more,please contact us for details


    Q:What is the quality level of your product?

    A:We produce good quality, refuse to produce low quality.
