NEMA23 94mm body length BLDC Motor with planetary gear box, rated torque 1.1N.m to 45N.m
Brushless DC motor technology offer several advantages including high torque to weight ratio, increased efficiency and reliability, reduced noise and longer lifetime compared to brushed DC motors. The Delta Line portfolio offers a wide variety of BLDC motors technologies such as Slotted, Slotless, Flat and Frameless motors in sizes from 14 to 90mm diameter
Brushless gear motor we have Precision and transmission gearbox for optonal; Planetary gearbox and spur gearbox for optional; different carrying capacity and deceleration ration for optional; Straight and helical teeth for optional. Also can be designed and manufactured with customized request.
Features:
1. Wide Speed Range, Flat Torque
2. Compact And High Power
3. Excellent Speed Stability
4. High Efficiency And Energy-Saving
Wire Diagram:
| Type | Color | Functions |
UL1430 AWG26 | Reb | Vcc |
| Blue | Ha | |
| Green | Hb | |
| White | Hc | |
| Black | GND | |
UL1332 AWG18 | Yellow | Phase U |
| Red | Phase V | |
| Black | Phase W |
Driving Motor Specification:
| Item | Unit | JQ57BL94-3655 | JQ57BL94-3650 |
| Number of poles | 4 | 6 | |
| Number of Phase | 3 | 3 | |
| Rated Voltage | VDC | 36 | 36 |
| No-Load Speed | rpm | 5000 | 5000 |
| Rated Speed | rpm | 4000 | 4000 |
| Rated Torque | N.m | 0.33 | 0.6 |
| Rated Power | W | 138 | 249 |
| Peak Torque | N.m | 1.0 | 1.8 |
| Peak Current | A | 16 | 42 |
| Line to Line resistance | ohms@20℃ | 0.45 | 0.25 |
| Line to Line Inductance | mH | 1.5 | 0.3 |
**Notes: Above is standard motor, we can be designed
&manufactured with customized request!!

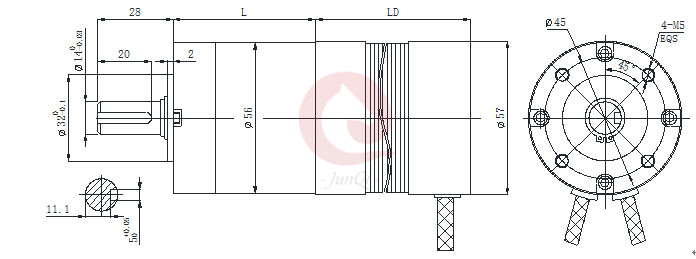

Mechanical Size:
Brushless DC Gear Motor Technical Data:
JQ57BL94-3650/56JM300K Gear Motor data(LD=93.6mm)
| Reduction Ratio | 3.60 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | |
| Number of Gear Trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Gearbox Length(L) | mm | 40.3 | 40.3 | 40.3 | 53.8 | 53.8 | 53.8 | 53.8 | 53.8 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 |
| No-load speed | rpm | 1389 | 1176 | 938 | 385 | 333 | 278 | 217 | 179 | 116 | 96 | 82 | 69 | 52 | 41 |
| Rated Speed | rpm | 1111 | 941 | 750 | 308 | 267 | 222 | 174 | 143 | 93 | 77 | 66 | 56 | 42 | 33 |
| Rated Torque | N.m | 1.9 | 2.3 | 2.9 | 6.3 | 7.3 | 8.7 | 11 | 14 | 19 | 23 | 27 | 32 | 42 | 45 |
Max.Permissible load in a short time | N.m | 12 | 12 | 12 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 |
JQ57BL94-3655/56JM450K Gear Motor data(LD=93.6mm)
| Reduction Ratio | 3.60 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | 154 | 187 | 220 | |
| Number of Gear Trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | |
| Gearbox Length(L) | mm | 40.3 | 40.3 | 40.3 | 53.8 | 53.8 | 53.8 | 53.8 | 53.8 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 80.6 | 80.6 | 80.6 |
| No-load Speed | rpm | 1528 | 1294 | 1032 | 423 | 367 | 306 | 239 | 196 | 128 | 106 | 90 | 76 | 57 | 45 | 36 | 29 | 25 |
| Rated Speed | rpm | 1111 | 941 | 750 | 308 | 267 | 222 | 174 | 143 | 93 | 77 | 66 | 56 | 42 | 33 | 26 | 21 | 18 |
| Rated Torque | N.m | 1.1 | 1.3 | 1.6 | 3.5 | 4.0 | 4.8 | 6.1 | 7.5 | 10 | 13 | 15 | 17 | 23 | 29 | 33 | 40 | 45 |
Max.Permissible load in a short time | N.m | 12 | 12 | 12 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 | 90 |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: Brake, connector , Encoder
Customized Design: Customized Winding, Customized Flange, Customized Shaft....

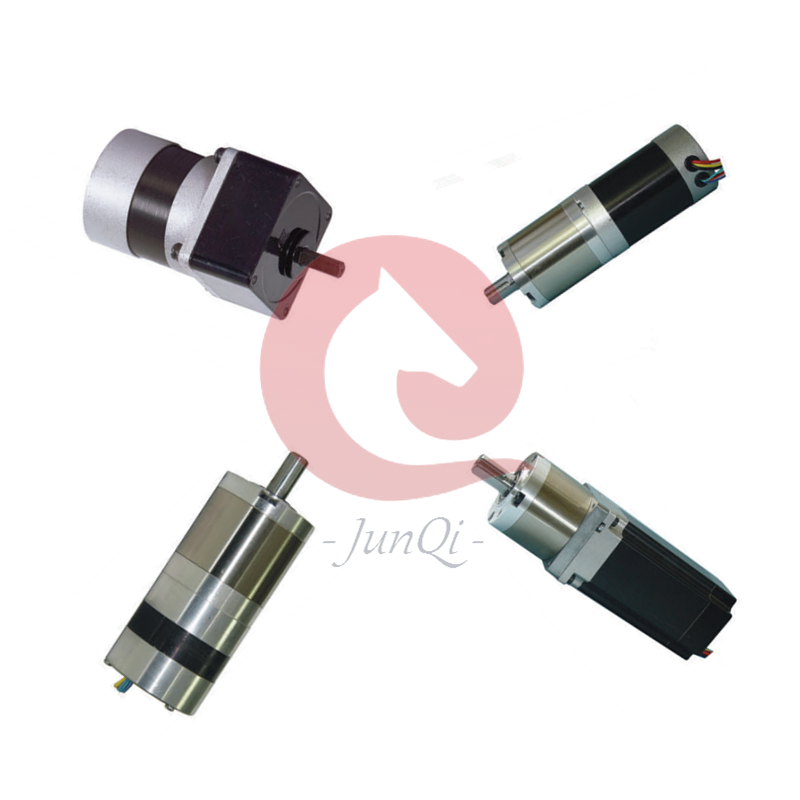

Motor pictures:
