| Brand Name : | JEUNKEI |
| Model Number : | JQ573P79-5806A |
| Certification : | IS9001, TS16949,CE |
| Price : | as confirmed |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 10000pcs/month |
| Delivery Time : | as confirmed |
JUNQI 57 Stepper Motor 573P Series Nema23 3 Phase torque 1.5Nm for Laser Cutting Engraving machines
General Specification:
| Item | Specifications |
| Step Angle | 1.2° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 28N (20mm from the flange) |
| Max.Axial Force | 10N |
| Dielectric Strength | 900VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electrical Specifications:
| Model No. | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Detent Torque | # of leads | Rotor inertia | Length | Weight |
| Single shaft | A | Ω | mH | N.m | N.m | # | g-cm2 | mm | kg |
| JQ573P42-4206A | 5.2 | 1.3 | 1.4 | 0.45 | 0.021 | 6 | 110 | 42 | 0.45 |
| JQ573P56-5606A | 5.6 | 0.7 | 1.7 | 0.9 | 0.040 | 6 | 300 | 56 | 0.75 |
| JQ573P79-5806A | 5.8 | 1.05 | 2.4 | 1.5 | 0.068 | 6 | 480 | 79 | 1.1 |
Notes:The motor can be designed &manufactured with customized request.
Mechanical Size:

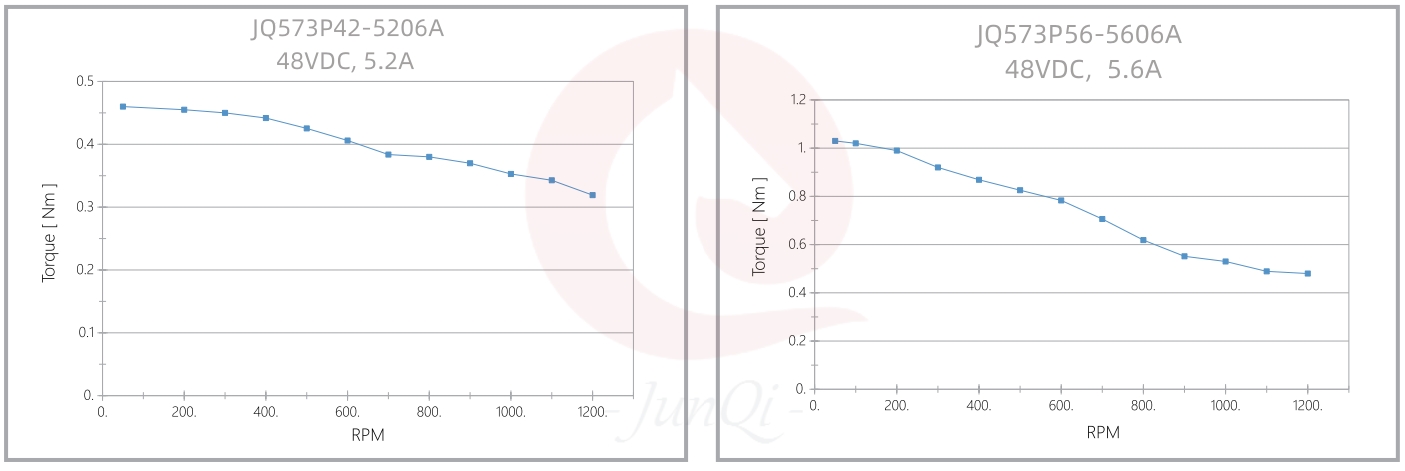

Motor pull out torque curve:
Wiring Diagram:
Customized Shaft ( diameter, double output, holde, flats, screw......) :
Applications:
Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor
System;Barrier Opening System;Door Opening System.
Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine;
TV System
Office Automation: Printer, 3D Printer
Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System
Bank Equipment: ATM machine
New Energy: Solar Tracking System
Robotics: Telepresence Robot; Humanoid Robot; Lawn Mower Robot;
Robot Arm.
Agriculture Machinery: Fertiliser Distribution System; Harvesting
Machines; Hydraulic Equipment Replacement; Precision Seed Drills;
Pruning Scissors; Robotic Milking Machines
