| Brand Name : | Junqi |
| Model Number : | JQ57HS82 series |
| Certification : | CE, RoHs, REACH |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 10000set/month |
| Delivery Time : | 4weeks after get payment (base on order), |
JQ57HS82 Electric Stepper Motor 1.8 Degree Nema23 Hybrid Step Motor 82mm Body Length High Torque CNC Motor
Quick Details:
| Item | Specifications |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃～+50℃ |
| Dielectric Strength | 100MΩMin.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max.(450g-load) |
| Shaft Axial Play | 0.08Max.(450g-load) |

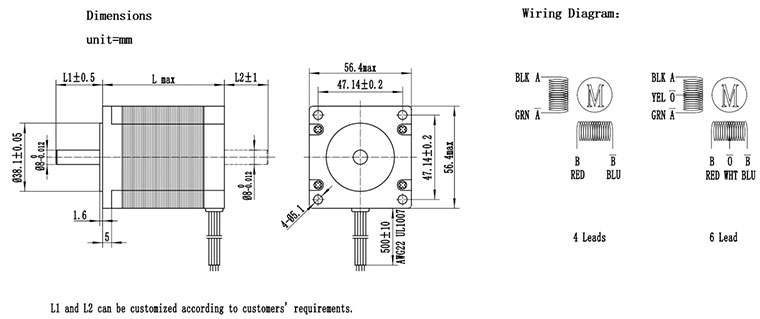

Mechanical Size and Electric Connection:
Electricl Specification:
| Model No | Step Angle (°) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Torque (Kg.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight (Kg) |
| JQ57HS41-2004 | 1.8 | 2 | 2 | 1 | 1.2 | 3.2 | 210 | 120 | 41 | 4 | 0.45 |
| JQ57HS41-1004 | 1.8 | 5.4 | 1 | 5.4 | 9.5 | 5.5 | 210 | 120 | 41 | 4 | 0.45 |
| JQ57HS41-2004 | 1.8 | 2 | 2 | 1 | 2.2 | 5 | 210 | 120 | 41 | 4 | 0.45 |
| JQ57HS51-1504 | 1.8 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 360 | 275 | 51 | 4 | 0.65 |
| JQ57HS51-2004 | 1.8 | 2.4 | 2 | 1.2 | 3 | 9 | 360 | 275 | 51 | 4 | 0.65 |
| JQ57HS51-2006 | 1.8 | 2 | 2 | 1 | 1.6 | 7 | 360 | 275 | 51 | 6 | 0.65 |
| JQ57HS56-1504 | 1.8 | 5.7 | 1.5 | 3.8 | 12 | 13.5 | 400 | 300 | 56 | 4 | 0.7 |
| JQ57HS56-3004 | 1.8 | 2.85 | 3 | 0.95 | 2.8 | 12 | 400 | 300 | 56 | 4 | 0.7 |
| JQ57HS56-2006 | 1.8 | 3.6 | 2 | 1.8 | 2.8 | 9 | 400 | 300 | 56 | 6 | 0.7 |
| JQ57HS64-3004 | 1.8 | 3.9 | 3 | 1.3 | 2.2 | 15 | 500 | 380 | 64 | 4 | 0.8 |
| JQ57HS76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 680 | 480 | 76 | 4 | 1 |
| JQ57HS76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 680 | 480 | 76 | 4 | 1 |
| JQ57HS76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 680 | 480 | 76 | 4 | 1 |
| JQ57HS82-3004 | 1.8 | 4.2 | 3 | 1.4 | 5 | 22 | 700 | 510 | 82 | 4 | 1.2 |
| JQ57HS82-4004 | 1.8 | 3 | 4 | 0.75 | 3.5 | 20 | 700 | 510 | 82 | 4 | 1.2 |
| JQ57HS100-3004 | 1.8 | 3 | 3 | 1 | 4.5 | 25 | 1000 | 680 | 100 | 4 | 1.4 |
| JQ57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 1200 | 800 | 112 | 4 | 1.7 |
| JQ57HS112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 1200 | 800 | 112 | 4 | 1.7 |
| Above only for representative products, products of special request can be made according to the customer request. | |||||||||||
**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
Motor details:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Professional Factory:
Certificate Photos :
Packing:
Transportation:

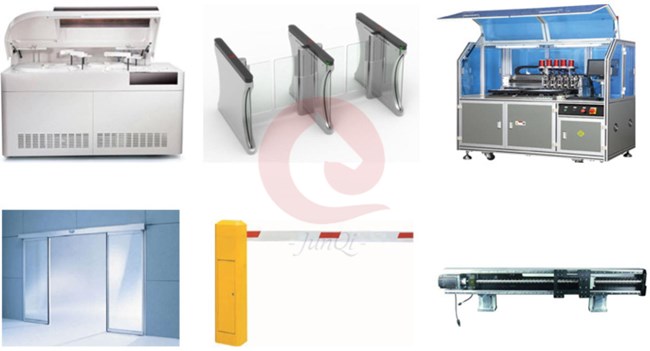

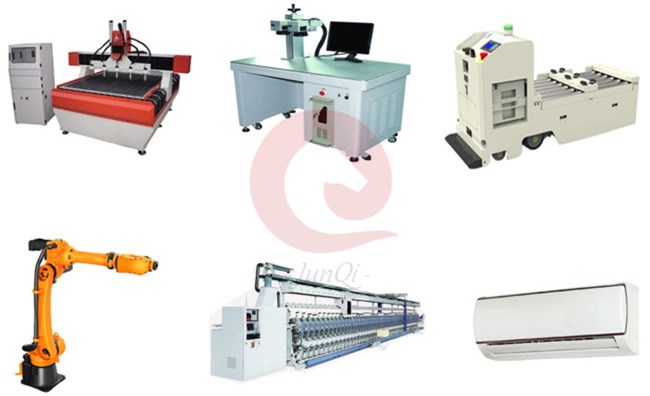

Motor Application Fields:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
