| Brand Name : | Junqi |
| Model Number : | JQ57HS112 Series |
| Certification : | CE, RoHs, REACH |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 10000set/month |
| Delivery Time : | 4weeks after get payment (base on order), |
2Phase 1.8 Degree JQ57HS112 3N.m Torque Electric DC Hybrid Stepping Motor, Nema23 Stepper Motor 112mm Body Length
Quick Details:
| Item | Specifications |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃～+50℃ |
| Dielectric Strength | 100MΩMin.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max.(450g-load) |
| Shaft Axial Play | 0.08Max.(450g-load) |
Mechanical Size and Electric Connection:
Electricl Specification:
| Model No | Step Angle (°) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Torque (Kg.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight (Kg) |
| JQ57HS41-2004 | 1.8 | 2 | 2 | 1 | 1.2 | 3.2 | 210 | 120 | 41 | 4 | 0.45 |
| JQ57HS41-1004 | 1.8 | 5.4 | 1 | 5.4 | 9.5 | 5.5 | 210 | 120 | 41 | 4 | 0.45 |
| JQ57HS41-2004 | 1.8 | 2 | 2 | 1 | 2.2 | 5 | 210 | 120 | 41 | 4 | 0.45 |
| JQ57HS51-1504 | 1.8 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 360 | 275 | 51 | 4 | 0.65 |
| JQ57HS51-2004 | 1.8 | 2.4 | 2 | 1.2 | 3 | 9 | 360 | 275 | 51 | 4 | 0.65 |
| JQ57HS51-2006 | 1.8 | 2 | 2 | 1 | 1.6 | 7 | 360 | 275 | 51 | 6 | 0.65 |
| JQ57HS56-1504 | 1.8 | 5.7 | 1.5 | 3.8 | 12 | 13.5 | 400 | 300 | 56 | 4 | 0.7 |
| JQ57HS56-3004 | 1.8 | 2.85 | 3 | 0.95 | 2.8 | 12 | 400 | 300 | 56 | 4 | 0.7 |
| JQ57HS56-2006 | 1.8 | 3.6 | 2 | 1.8 | 2.8 | 9 | 400 | 300 | 56 | 6 | 0.7 |
| JQ57HS64-3004 | 1.8 | 3.9 | 3 | 1.3 | 2.2 | 15 | 500 | 380 | 64 | 4 | 0.8 |
| JQ57HS76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 680 | 480 | 76 | 4 | 1 |
| JQ57HS76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 680 | 480 | 76 | 4 | 1 |
| JQ57HS76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 680 | 480 | 76 | 4 | 1 |
| JQ57HS82-3004 | 1.8 | 4.2 | 3 | 1.4 | 5 | 22 | 700 | 510 | 82 | 4 | 1.2 |
| JQ57HS82-4004 | 1.8 | 3 | 4 | 0.75 | 3.5 | 20 | 700 | 510 | 82 | 4 | 1.2 |
| JQ57HS100-3004 | 1.8 | 3 | 3 | 1 | 4.5 | 25 | 1000 | 680 | 100 | 4 | 1.4 |
| JQ57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 1200 | 800 | 112 | 4 | 1.7 |
| JQ57HS112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 1200 | 800 | 112 | 4 | 1.7 |
| Above only for representative products, products of special request can be made according to the customer request. | |||||||||||
**Notes: Above is standard motor, we can be designed &manufactured with customized request!!

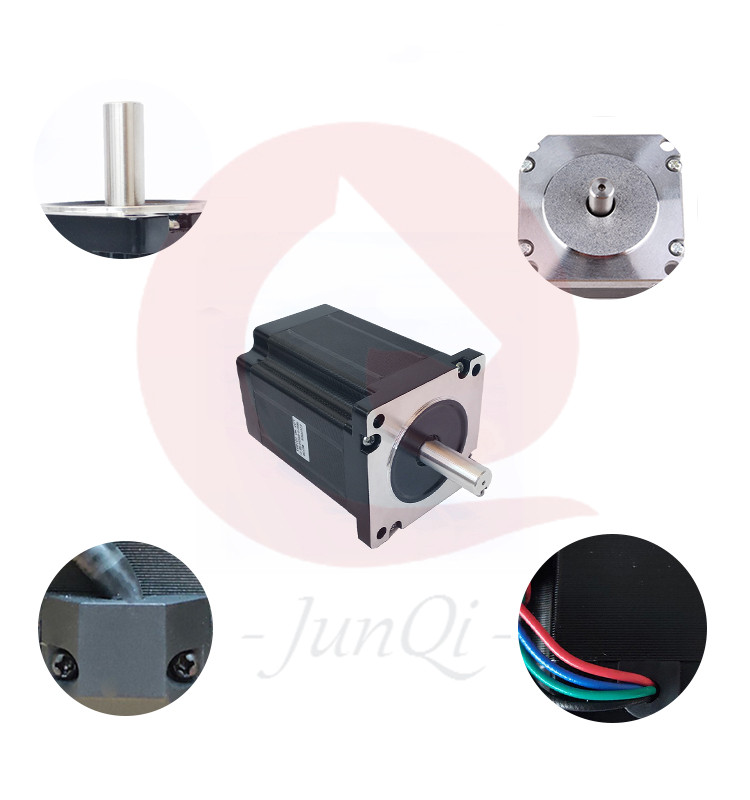

Motor details:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Certificate Photos :
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
Stepper motor technology can be a good choice whenever controlled movement is required. They can be used to an advantage in applications where you need to control rotation angle, speed, position and synchronism. Delta Line portfolio offers wide options of micro stepper motors technology such as Hybrid, Flat, Hollow shaft or IP65 stepper motors, in sizes from 15 to 110mm.
Supply Stepper motor types as below:
1. PM stepper motors
2. Hybrid stepper motors
3. 3-Phase Stepper Motors
4. Hollow shaft stepper motors
5. Flat stepper motors
6. Stepper motors with encoder
7. IP65 Stepper motors
|
|
