    Industrial Chiller High Efficiency 24v Dc Brushless Water Pump JQ-P6201

    12V/ 24VDC Brushless Water Pump for Industrial Chiller, High Efficiency, JQ-P6201


    Features:
    ◆Centrifugal pump
    ◆Magnetic force transmission (shield pump structure)
    ◆High efficiency brushless DC motor, low power consumption, high efficiency,
    long service life.
    ◆With wide range operating temperature
    ◆PWM signal speed controlling
    ◆With constant flow controlling
    ◆Reverse polarity protection (optional)
    ◆Dry running protection (optional)


    Technical Parameters:


    Model No.JQ-P6201
    Rated Voltage12VDC24VDC
    Max. Power36W55W
    Max.Head8m11m
    Max Flow17L/min21L/min
    Working Temperature0~70℃
    Protection LevelIP67
    OEM is accept, also can customized PWM control function

    Dimensions:

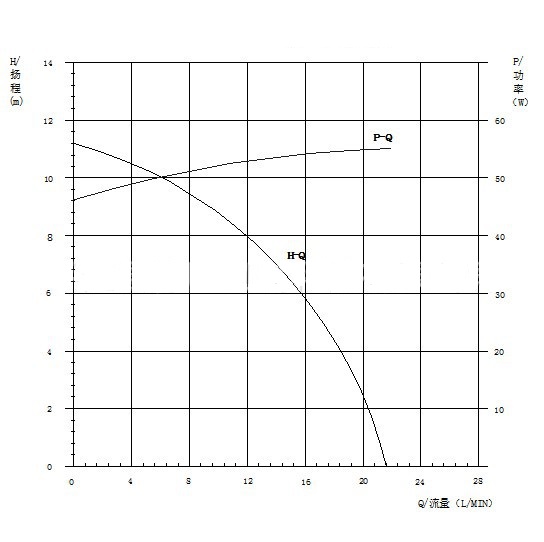

    Performance Curve:


    Applications:



    The medium and small laser chillers

    Beauty equipment,medical equipment

    LED cooling,semiconductor cooling

    Other equipments that need pressurization and refrigeration
