JP200 Brushless DC Motor Water Pump 100L/Min For Hybrid Bus Motor Control Cooling

Ask Lasest Price
Brand Name :	junqi
Model Number :	JP200-2Pin-24V
Certification :	IS9001, TS16949,CE
Price :	Negotialbe
Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	1000set/month
Delivery Time :	base on order,

Add to Cart

Product Details
Company Profile

JP200 Brushless DC Motor Water Pump 100L/Min For Hybrid Bus Motor Control Cooling

Junqi JP200 Brushless DC Motor water pump high flow 100L/min for Pure Electric Bus and Hybrid Bus Motor control cooling

Technical Parameters Table:

No.		Technical Parameters
1	Medium Liquid	50% Glycol aqueous solution(Preferred choose Organic Type,grain size≯0.35,ppm≯0.1g/L)
2	working temperature	-40℃~85℃
3	Normal Medium Temperature	10℃~90℃
4	Storage Temperature	-50℃~90℃
5	Extreme	-40℃~105℃
6	Flow Rate	6000L/H
7	Head	5.5m
8	Rated Voltage	DC24V
9	Voltage Range	DC18~32V
10	Power	180W±10W
11	Customer choice	PWM/ Fauilt feedback/CAN Function
12	Protection Level	IP68
13	Weight	≤1.5kg(without Bracket)
14	Noise	≤58dB(A)
15	Service Life	＞20000h
16	OD of inlet/outlet	φ38
17	Lead wire Type	Integrated with pump body or lead wires with connectors
18	Protection Function	Over Current Protection, Over/Low Voltage Protection, Over Temperature Protection, Locked-Rotor Protection,Dry-Running Protection, Reverse Polarity Protection.

2. Mechanical installation

2.1 The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed

vertically, the outlet port should be upward .

2.2 In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should

be vertical or in the upper of the impeller. (see figure 1 )

2.3 The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air

discharged easily, the outlet pipe should not be used less than 90 degrees elbow (see figure 2).

2.4 Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid

medium .

Performance Curve:

Attentions:

1. Please add a fuse in the water pump power supply circuit to cut off the power supply when appearance the failure.

2. Avoid the water pump is covered or blocked and affected by the surrounding devices heating. The installation space is convenient for maintenance and replacement operation.

3. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature

4. The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.

5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump

6.Please use the pump far from the dusty environment, the dust is harmful to reduce the service life

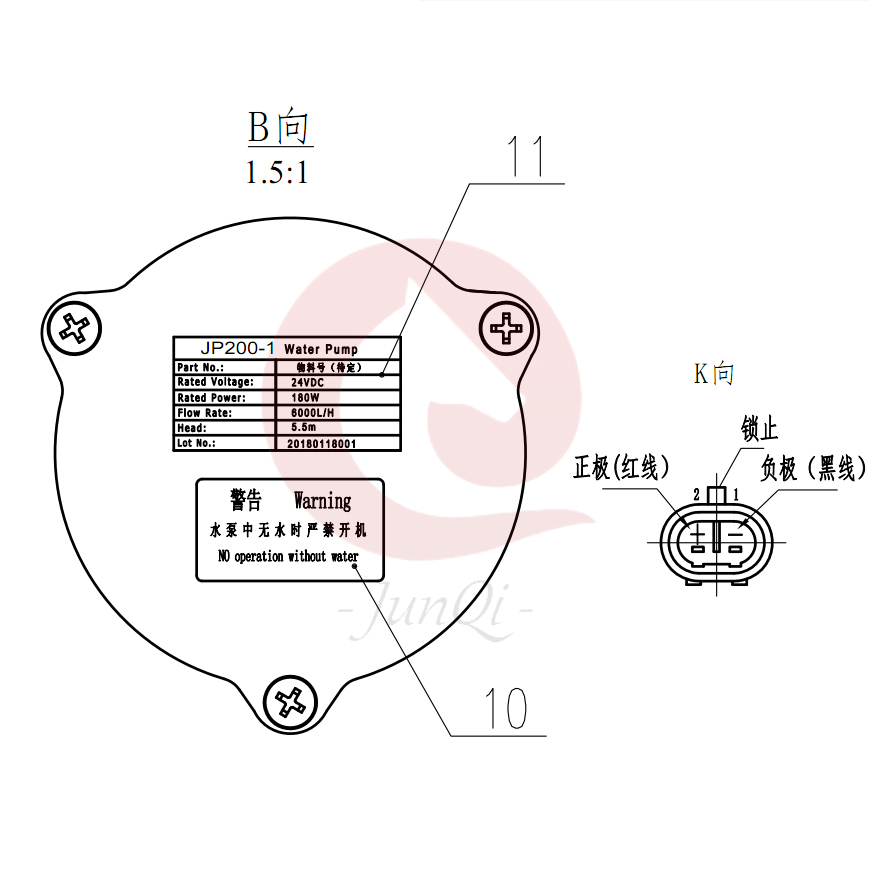

Mechanical Dimensions:

Applications:

1.The engine cooling circulation Pump

2.Motor control cooling cycle of 12m pure electric bus and hybrid bus

3. The New enery automotive cooling cycle

4. Heating vertilation air conditioning

5. Automotive engine cooling circulation

6.Truck motor control cooling cycle.
