| Brand Name : | junqi |
| Model Number : | JP80-12V |
| Certification : | IS9001, TS16949,CE |
| Price : | Negotialbe |
| Payment Terms : | T/T,Western Union,Paypal |
| Supply Ability : | 1000set/month |
| Delivery Time : | base on order, |
Water Pump Quick Techincal Parameters:
| Model | JP80-12V |
| Rated Voltage (V) | 12V |
| Voltage Range (V) | DC9~16V |
| Rated Current(A) | 6.7A |
| Rated Head (m) | 8m |
| Rated Flow (L/min) | 20LP |
| Rated Power (W) | 80W |
| Max Noise (dB) | ≤45dB |
| OD of inlet (mm) | ∅20mm |
| OD of outlet(mm) | ∅20mm |
| Protection Level | IP67 |
| Insulation Level | H |
| Ambient temperature(℃) | -45 to 125℃ |
| Medium | Antifreeze |
| Weight (kg) | 0.65kg |
Water Pump Features:
1.Centrifugal Pump
2.Magnetic force transmission(shield pump structure)
3.Low Noise ( less than 45dB)
4.High Efficiency DC Brushless Motor, Low power consumption,
high efficiency,Long Service life ( 20000 hours)
5.Single-stage structure
6.With wide range operating temperature
7.Dry-running protection (optional)
8.Locked-rotor protection(optional)
Water Pump Performance Curve:
Water Pump Overall Dimensions:
Water Pumps applications:
EV Battery thermal management, Battery energy storage cooling, Fuel Cell cooling, Communication base station cooling
Turbocharger intercooler pump, Immersion cooling, Supercomputer cooling, EV Motor cooling etc...

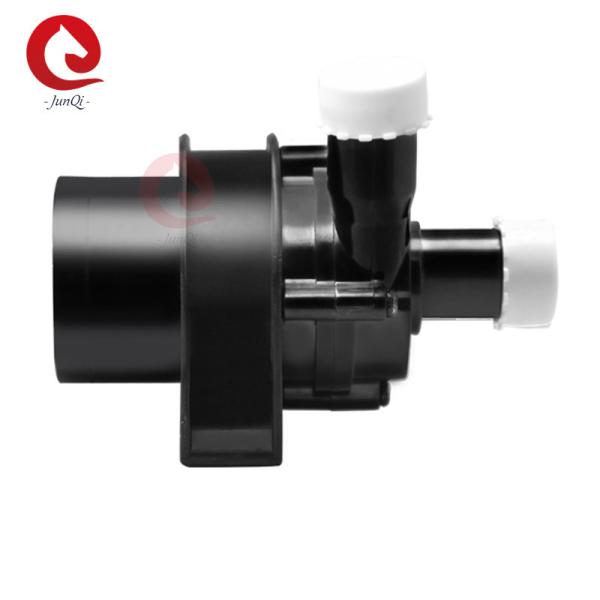

Water Pump View Pictures:
Advanced equipment, good consistency:
High Standard:
FAQ:
Q: How long is your delivery time?
A: Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
Q: How long is your warranty of pump?
A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.
Q: What’s the payment method?
A: Paypal,T/T,
Q: What certificates have your pumps passed?
A: All our products have passed CE, RoHS, Reach.
Parts of pumps met UL.
Q: What certificates have your company passed?
A: Our company has passed IATF16949, ISO9001, ISO14001&OHSAS18001
