| Brand Name : | junqi |
| Model Number : | JQ-BLP6212-24V |
| Certification : | IS9001, TS16949,CE |
| Price : | USD45-USD55 |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 1000set/month |
| Delivery Time : | base on order, |
Water Pump Quick Details:
Rated Voltage (V) | Voltage Range (V) | Rated Current (A) | Rated Head (m) | Rated Flow (L/min) | Rated Power (W) | Max Noise dB(A) |
| 24 | 12~30 | 2.4 | 9 | 35 | 55 | ≤40 |
Water Pump Features:
1.Centrifugal Pump
2.Magnetic force transmission(shield pump structure)
3.Low Noise ( less than 40dB)
4.High Efficiency DC Brushless Motor, Low power consumption,
high efficiency,Long Service life ( 15000 hours)
5.Single-stage structure
6.With wide range operating temperature
7.Dry-running protection (optional)
8.Locked-rotor protection(optional)
9.PWM speed adjustable(optional)
10. FG Signal output(optional)
Water Pump Performance Curve and Overall Dimensions:
Water Pump Techincal Parameters:
| Model | JQ-BLP6212-24V |
| Rated Voltage (V) | 24V |
| Voltage Range (V) | 12-30V |
| Rated Current(A) | 2.4A |
| Rated Head (m) | 9m |
| Rated Flow (L/min) | 35L/min |
| Rated Power (W) | 55W |
| Max Noise (dB) | ≤40dB |
| OD of inlet (mm) | ∅20mm |
| OD of outlet(mm) | ∅20mm |
| Protection Level | IP67 |
| Insulation Level | H |
| Ambient temperature(℃) | -40 to 125℃ |
| Medium Temperature(℃) | -40 to 120℃ |
| Medium | Antifreeze |
| Weight (kg) | 0.68kg |
Water Pumps applications:
1.Heating vertilation air conditioning
2. Auto turbocharger water cooling cycle
3. New energy vehicle cooling cycle
4. Motorcycle electronic water pump

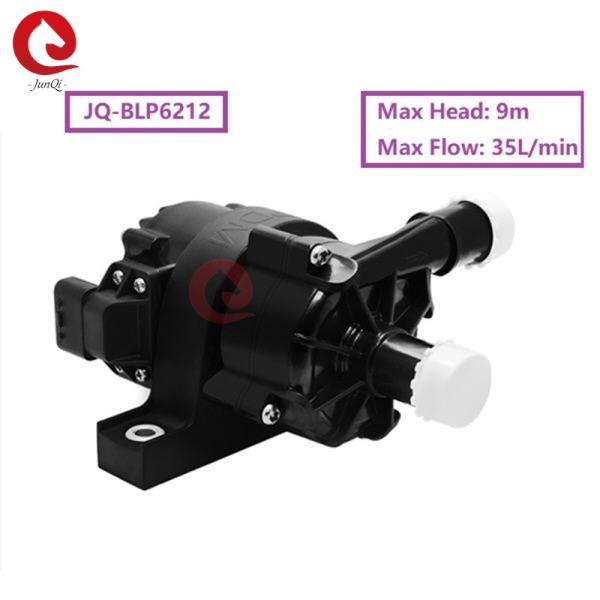

Water Pump View Pictures:
Electric vehicles are undoubtedly one of the most "hot" products nowadays. The world's major automobile manufacturers are struggling to compete for this "new thing". In the process of electric vehicle assembly, the quality of the BLDC Water Pumps directly determines The level of vehicle performance, How to choose a good water pumps, we can supply the high quality products for you, welcome contact with us for deeply talking.
FAQ:
Q: How long is your delivery time?
A: Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
Q: How long is your warranty of pump?
A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.
Q: What’s the payment method?
A: Paypal,T/T,
Q: What certificates have your pumps passed?
A: All our products have passed CE, RoHS, Reach.
Parts of pumps met UL.
Q: What certificates have your company passed?
A: Our company has passed IATF16949, ISO9001, ISO14001&OHSAS18001
