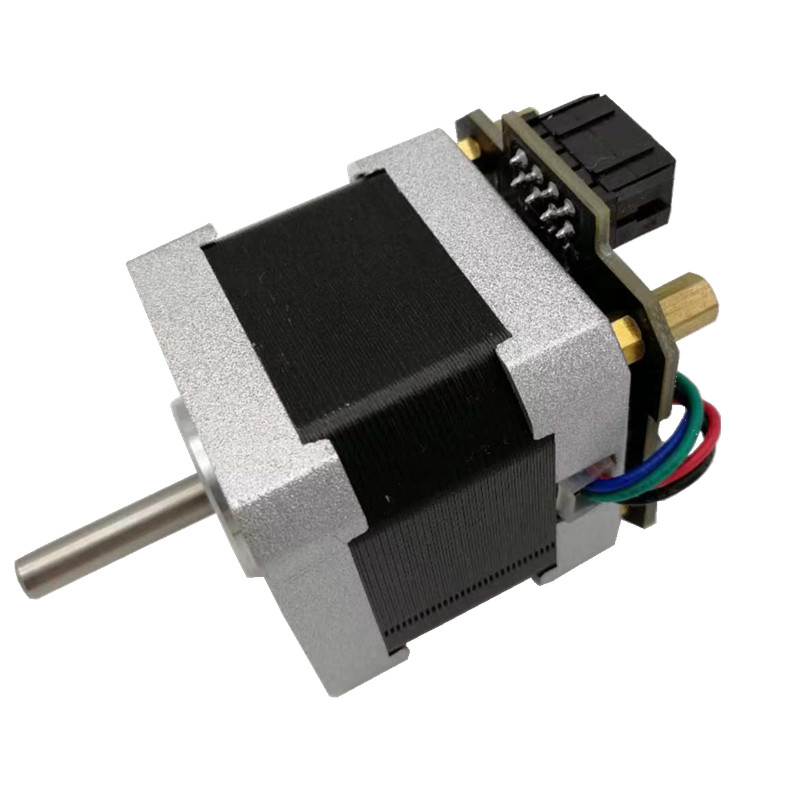

    NEMA17 Integrated Stepper Motor Customized 42mm With Driver

    Ask Lasest Price
    Brand Name : Junqi
    Model Number : JQ42-STD33-1334AF
    Certification : CE, RoHs, REACH
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000set/month
    Delivery Time : 4weeks after get payment (base on order),
    • Product Details
    • Company Profile

    NEMA17 Integrated Stepper Motor Customized 42mm With Driver

    NEMA17 Integrated Stepper Motor, cusotmized 42mm stepper motor with driver integrated


    Features:

    1. Low Inertia, Quick Response

    2. High Torque, High Efficiency

    3. Low Vibration, Low Noise

    4. Small Size


    Stepper motor Electrical Specification:

    Model No.

    Current

    /Phase

    Resistance

    /Phase

    Inductance

    /Phase

    Holding TorqueDetent TorqueLead wires No.Rotor InertiaWeightLength
    Single shaftAΩmHN.mN.m#g-cm²kgmm
    JQ42STD33-1334AF1.332.12.90.220.0124350.2233.5
    JQ42STD38-1684AF1.681.653.20.360.0154540.2839.5
    JQ42-STD47-1684AF1.681.653.30.440.024680.3547.5


    Mechanical Size:


    Wiring Diagram:


    Torque Curve:


    General Specifiaction:

    ItemsSpecification
    Phase2
    Step Angle1.8degree( full step, no load)
    Radial Play 0.02mm@450g
    Axial Play 0.08mm@450g
    Max Radial force28N 5mm from flange
    Max Axial Force10N
    Dielectric Strength600VAC / 1S
    Insulation Resistance100MΩ ,500VDC
    Ambient Temperature-20℃~ +50
    Insulation ClassClass B

    We can supply Extra service:

    If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

    Accessories service: gearbox, connector

    Customized Design: Customized Winding, Customized Flange, Customized Shaft....


    Professional Factory:


    Motor Application Fields:


    Medical: Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift

    Textile: Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.

    Industrial Control: CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.
    Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.
    Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System
    Office Automation: Printer, 3D Printer
    Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System
    Bank Equipment: ATM machine
    New Energy: Solar Tracking System
    Robotics: Telepresence Robot; Humanoid Robot; Lawn Mower Robot; Robot Arm.
    Agriculture Machinery: Fertiliser Distribution System; Harvesting Machines; Hydraulic Equipment Replacement; Precision Seed Drills; Pruning Scissors; Robotic Milking Machines
