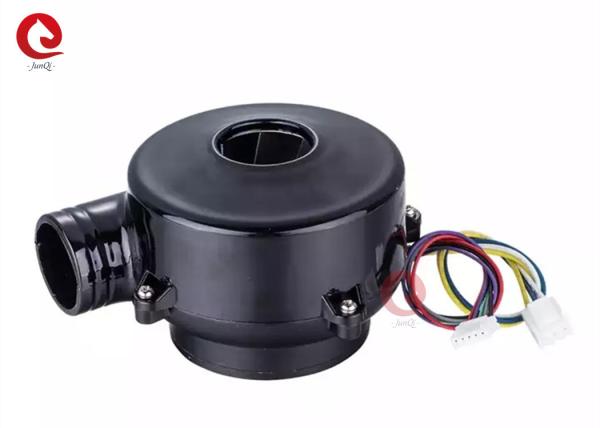

    24V 190W Mini Brushless DC Centrifugal Blower Adjustable Air Purifier OWB9260-24V

    Ask Lasest Price
    Brand Name : junqi
    Model Number : OWB9260-24V
    Certification : CE,Rohs
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 pcs per day
    Delivery Time : 5-30days
    • Product Details
    • Company Profile

    24V 190W Mini Brushless DC Centrifugal Blower Adjustable Air Purifier OWB9260-24V


    Junqi 24V 190W Mini Brushless DC Centrifugal Blower adjustable air purifier OWB9260-24V


    Brushless DC Micro Air Blower Features :

    1: High speed, specialized high-speed ball bearing offering long service life and lower noise

    2: High pressure and airflow output by compact size design

    3: High efficiency, much more efficient than brush motor blower

    4: High reliability, specialized controller make the working more reliable

    5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling

    2: Blower Technical Parameters

    ModelOWB9260-24VOWB9260B-12V
    Rated Voltage24VDC12VDC
    Outlet Open
    Current8A15A
    Rated Speed25000rpm23000rpm
    Air Flow130m³/h120m³/h
    Outlet Sealed
    Current4.3A8A
    Speed29000rpm28000rpm
    Air Pressure7.5Kpa7Kpa
    Resistance/Phase0.14~0.19Ohm0.035~0.05Ohm
    Induction/Phase0.09~0.13mH0.024~0.03mH
    Motor Pole pairs22
    Noise80dB(A)80dB(A)
    Blower Fan Motor Parameters
    Motor TypeThree Phase Brushless DC MotorThree Phase Brushless DC Motor
    Bearing TypeNMB Ball BearingNMB Ball Bearing
    Insulation ClassClass FClass F
    Protect ClassIP54IP54
    Operating Temperature range-20℃~+60℃(No Condensation)-20℃~+60℃(No Condensation)
    Hall Effect Sensor120°120°
    Speed@hall sensor frequency1Hz=30r/min1Hz=30r/min
    Service Life MTTF(25℃ Rated Operation Point)15000hours15000hours
    Weight420g420g
    Matched DriverBLDC2408BLDC1230

    3: Micro DC Air Blower performance



    4: Overall dimensions

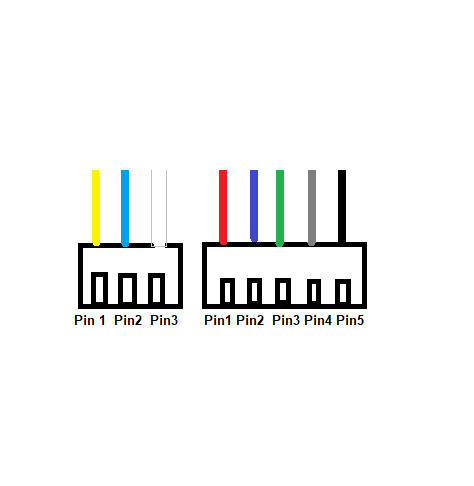

    5: Wiring diagram

    HX25002-5Y
    Pin 126AWGRed+5V
    Pin 226AWGPurleHall A
    Pin 326AWGGreenHall B
    Pin 426AWGGreyHall C
    Pin 526AWGBlackGND
    HX39600-3Y
    Pin 120AWGYellowPhase A
    Pin 220AWGBluePhase B
    Pin 320AWGWhitePhase C


    6: Attentions
    1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
    2: Add a filter attach to the intake makes the blower bearing longer service life.
    3: The correct rotation direction is CCW
    4: Do not use the blower in High temperature ,high humidity, high magnetic fields
    5: Please use suitable power supply for the blower.
