    12-36VDC 15A Dual Brushless DC Motor Driver Board DC Controller For Electric Skateboard

    Ask Lasest Price
    Brand Name : JUYI
    Model Number : JYQD-YL02D
    Certification : CE,
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal
    Supply Ability : 10000sets/Month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    12-36VDC 15A Dual Brushless DC Motor Driver Board DC Controller For Electric Skateboard

    12-36VDC 15A Dual Brushless DC Motor Driver Board, DC Controller For Electric Skateboard



    Model number :JYQD-YL02D
    Operating temp.: -20—85℃
    Operating voltage: 12-36VDC
    Cont.working current: 15A
    PWM speed control PWM frequency:1K-10KHZ; Duty cycle 0-100%
    Analog voltage speed regulation :0-5V
    Speed pulse signal output :YES
    Dual-motor drive mode:540W each

    Features:Can drive two motor at same time,can be single or double controlled.has Reactive power brake function,Brake reverse charging protection release circuit,can be MCU controlled, The "5V" port on the board can offer 300mA current to external MCU


    The Dual driver board has four versions for your choice,please let us know which version you want.

    JYQD-YL02D(8559) direct start version has NO LOCK function,(linear speed regulation 0-5V,liner brake:0-5V)
    JYQD-YL02D(457E) direct start version has NO LOCK function,(linear speed regulation 0-2.5V,liner brake:0-2.5V)
    JYQD-YL-02D(99F2)safety start version has LOCK function.(linear speed regulation 0-5V,liner brake:0-5V)
    JYQD-YL-02D(C737)safety start version has LOCK function.(linear speed regulation 0-2.5V,liner brake:0-2.5V)

    Safety start: if you use a knob~style potentiometer to adjust the speed, if the potentiometer not rest to 0 before stop,the motor will direct start according

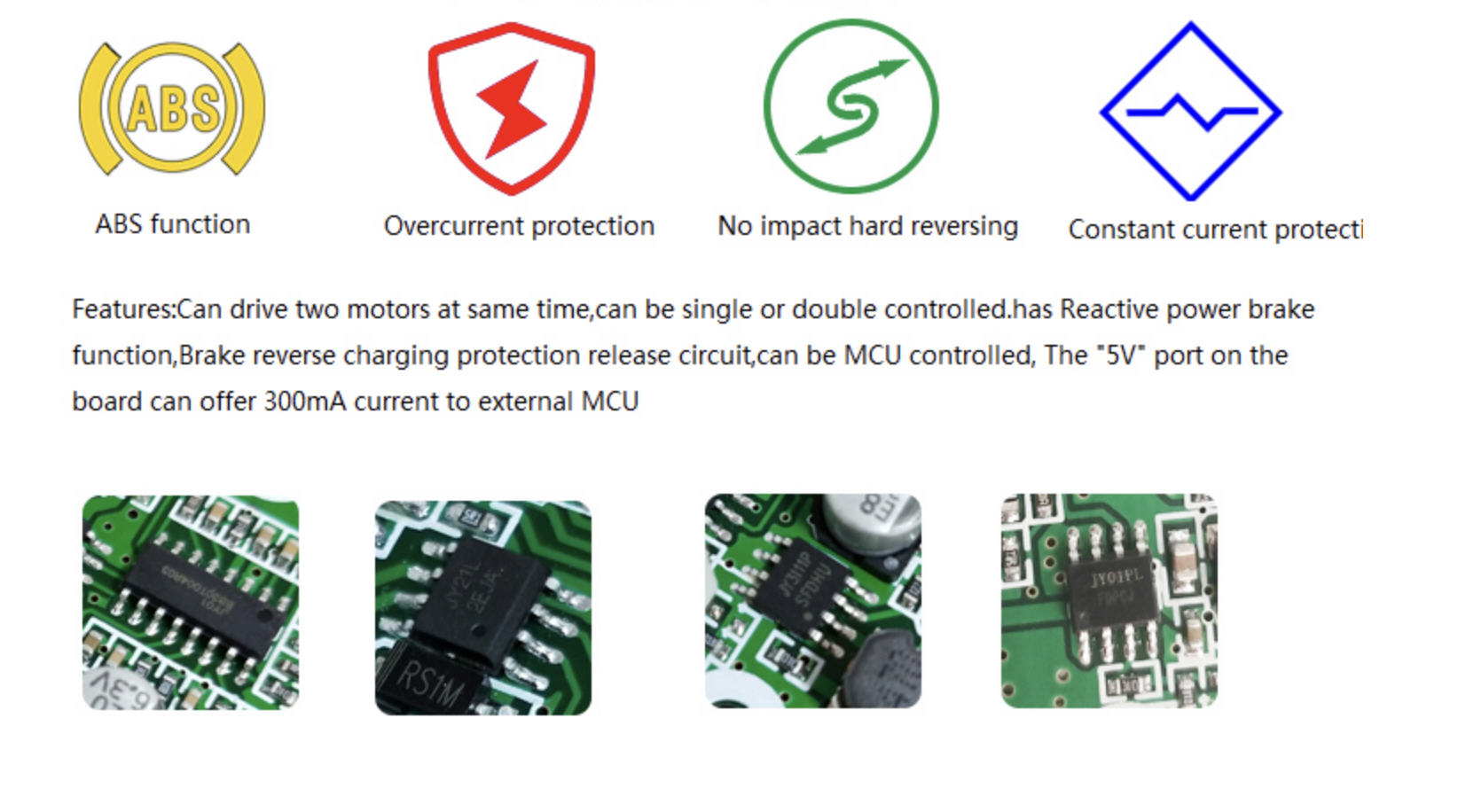

    YL02D BLDC Driver board four protecion functions:

    Driver Dimensions:

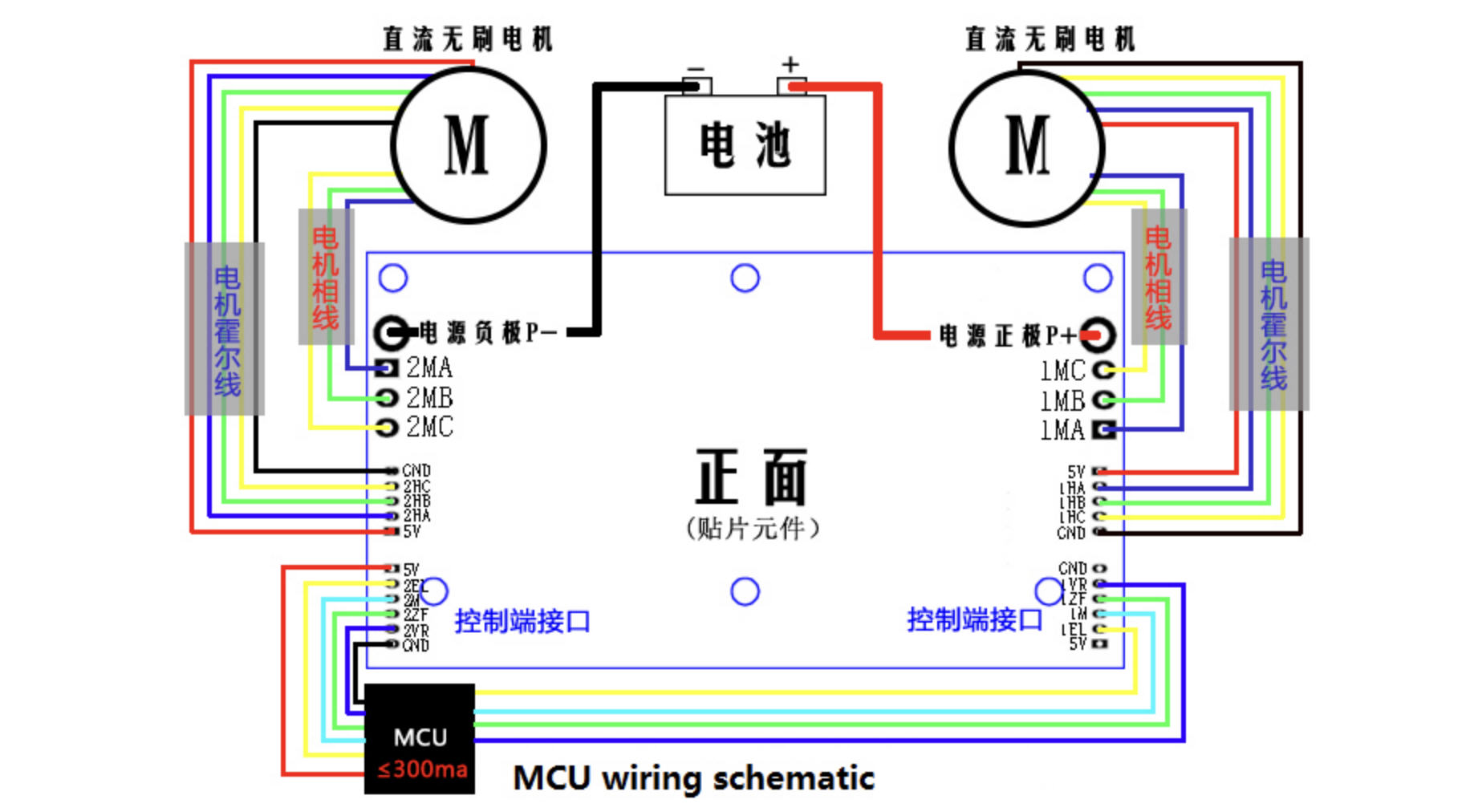

    YL02D BLDC Controller Wiring Instructions:


    Control Port Instroductions:


    1.GND: Only for control signal

    2.VR: Speed regulation(0-2.5v or 0-5v linear speed regulation). PWM frequency: 1KHz-10KHz.

    3.ZF: Forward and backward turning port.(5v high level or 0v low level, if you use 3.3v MCU, you need do adjustment to 5V)

    4. M: Speed pulse signal output

    5. EL: Brake function port, 0-2.5V or 0-5V linear brake

    6. 5V: 5V power source for external control device(≤300mA)
