| Brand Name : | JEUNKEI |
| Model Number : | JQ603P1277-1503A |
| Certification : | CE, Rohs |
| Price : | Negotiable |
| Payment Terms : | T/T, , Western Union, Paypal |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | depend on the order quantity /Negotiable |
General Specification:
| Item | Specifications |
| Step Angle | 1.2° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 75N (20mm from the flange) |
| Max.Axial Force | 15N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electrical Specifications:
| Model No. | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Detent Torque | # of leads | Rotor inertia | Length | Weight |
| Single shaft | A | Ω | mH | N.m | N.m | # | g-cm2 | mm | kg |
| JQ603P1253-1503A | 1.5 | 4.1 | 9.5 | 0.8 | 0.07 | 3 | 260 | 53.5 | 0.8 |
| JQ603P1277-1503A | 1.5 | 4.4 | 10 | 1.1 | 0.09 | 3 | 460 | 77.5 | 1.3 |

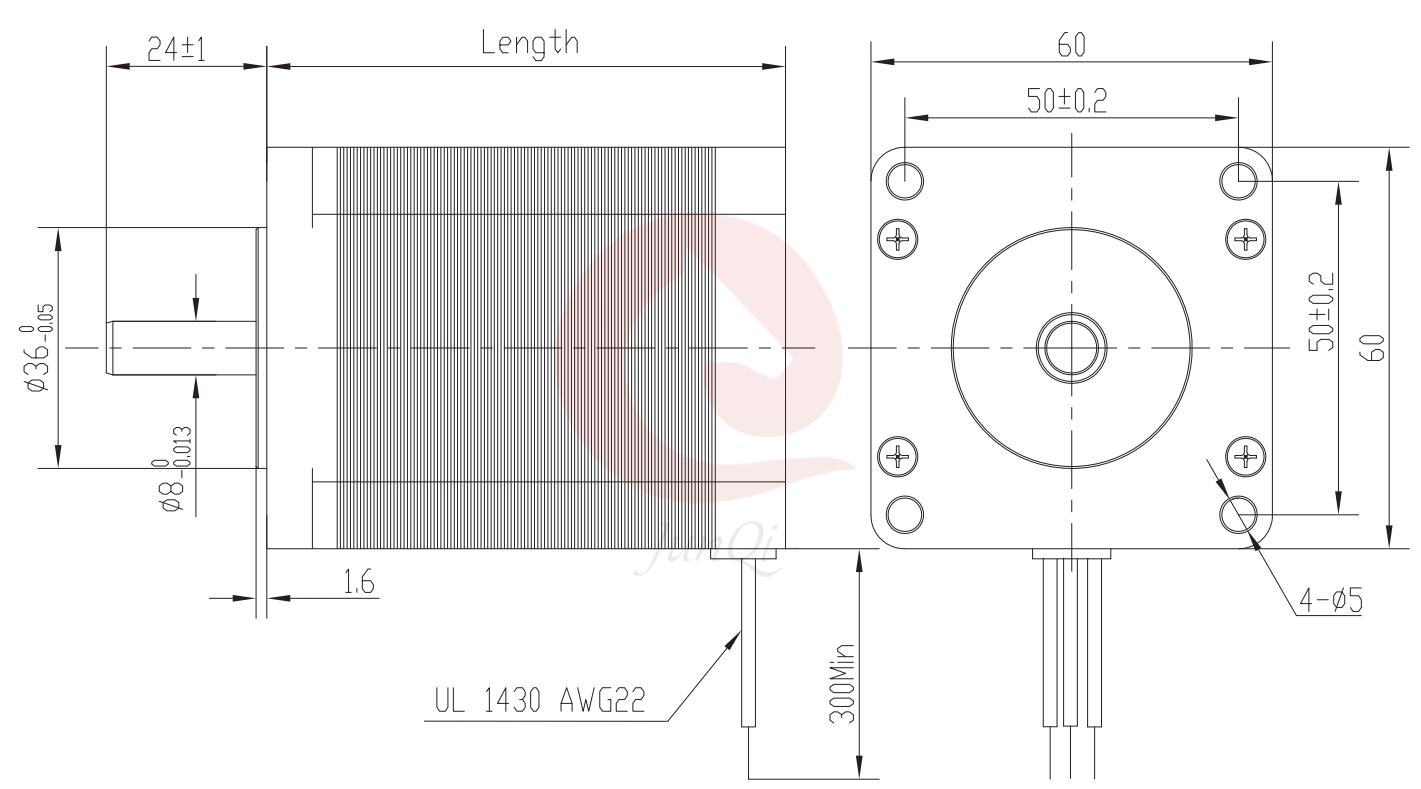

Mechanical Size:
Wiring Diagram:
Motor Pull out Torque Curve:
