| Brand Name : | JUNQI |
| Model Number : | DKB80-24V-4Pin |
| Certification : | IS9001, TS16949,CE |
| Price : | Negotiable |
| Supply Ability : | 300sets per day |
| Delivery Time : | Negotiable |
Junqi 24V Electrick Bus, EV Truck cooling Circulation Water Pump Big Flow Rate 40L/Min
Specifications:
| Rated Voltage(VDC) | Working Voltage Range (VDC) | Rated Power(W) | Max Flow(L/H) | Max Head(m) | Weight(g) |
| 24VDC | 18V-32V | 80W | 40L/min | 11m | 1000g |
Features:
DKB80-12V-4Pin electronic water pump is a low energy consumption and high efficiency water pump launched by our company. The characteristics of this pump are: small size, light weight, compact structure, wide application environment, and platform development design
Water Pump Size Diagram:
H-Q Curve:

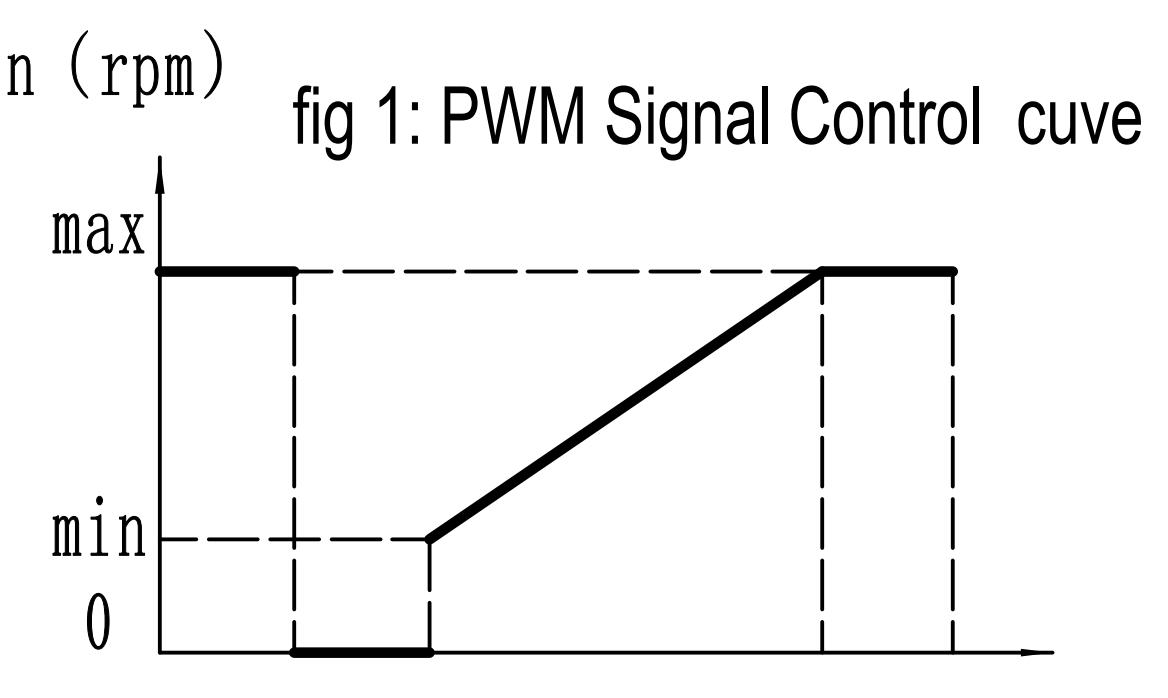

PWM control chart:
PWM Duty Cycle Description:
| Duty Cycle(%) | Description |
| 0%≤Duty＜5% | Default Output(Max Speed) |
| 5%≤Duty＜15% | PWM Mode, halt command |
| 15%≤Duty＜85% | PWM Mode, Linear Speed Regulation range |
| 85%≤Duty＜100% | PWM Mode, Speed limited(Max speed) |
Remarks: PWM duty cycle error range:±2% PWM voltage: DC12V PWM frequency: 1KHz Notes: A: Recommended 10% duty cycle as the stop command B: Recommended 0%,95% duty cycle as default output mode (Max speed, PWM disable) | |

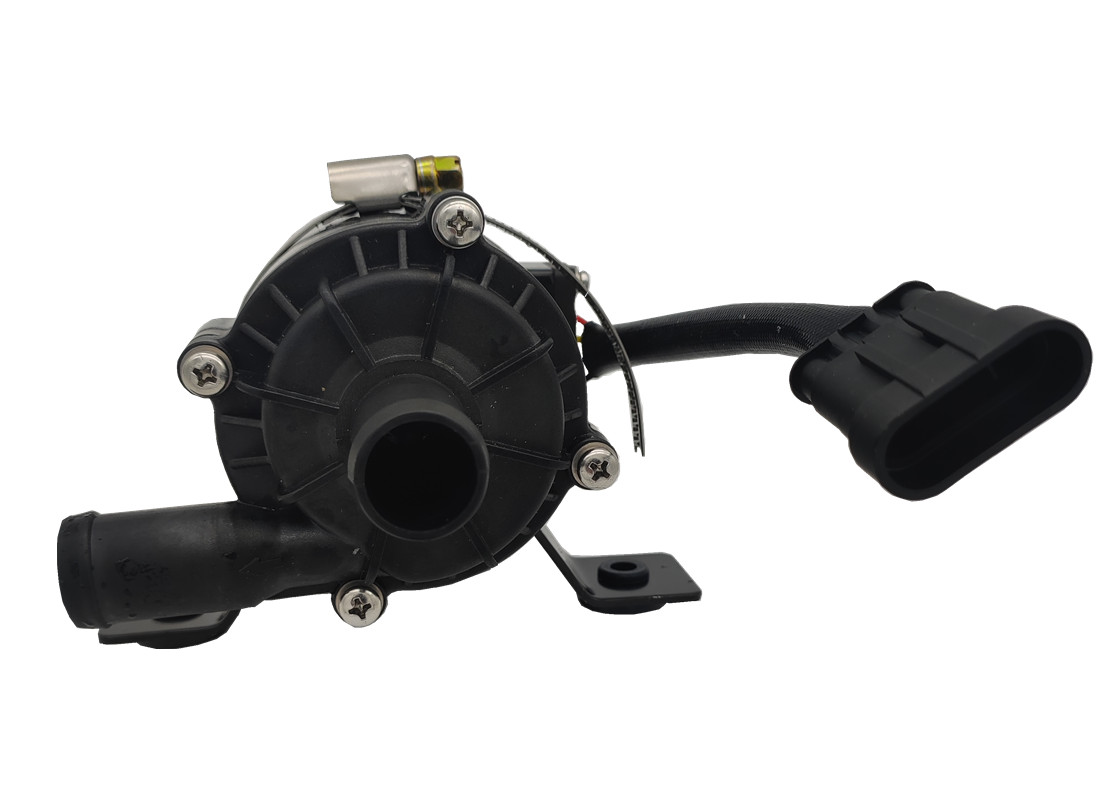

Electrick water pump pictures:
|
|
