    OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell

    Ask Lasest Price
    Brand Name : JEUNKEI
    Model Number : OWB7575-220VAC
    Certification : CE, ROHS, ISO10993
    Price : USD60-USD85/PC
    Payment Terms : T/T, , Western Union, Paypal
    Supply Ability : 1000pcs per month
    Delivery Time : depend on the order quantity /Negotiable
    • Product Details
    • Company Profile

    OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell

    Blower Technical Parameters:

    ModelOWB7575-220VAC
    Rated VoltageV220
    Rated CurrentA1.95
    Rated PowerW435
    No-load Speedrpm80000
    Max.Pressure ( Q=0)kpa50
    Power at Max. PressureW250
    Speed at Max.Pressurerpm100000
    Max.Flow (P=0)L/min666
    Power at Max.FlowW425
    Speed at Max.Flowrpm87128
    Min.FlowL/min10
    Brushless DC Motor Parameters
    ResistanceΩ2.05
    InductancemH7.77
    Rotor Inertiag-cm²14
    Hall Angle120°
    Pairs of Magnets2P=1A
    Insulation Resistance180℃-F
    Temperature Rise40
    IP RatingIP50
    Impeller MaterialsAL
    Housing MaterialsAL
    Oxygen Compatible%21
    Biologically CompatibleYes
    The Blower Performance
    NTCN/A
    Weightg420
    Service Lifehours15000
    NoisedB(A)45
    Decopressionkpa>80
    DirectionCCW
    Using Temperature range-10~45
    Using Ambient Humidity Range%RH10~75
    Storage Temperature-10~40

    Notice:

    1. The pipeline diameter of the air inlet or outlet load shall not be less than 6mm

    2. Do not block the air inlet or outlet completely for more than minutes

    Brushless DC Air Blower Features:


    1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise

    2: High pressure and airflow output by compact size design

    3: High efficiency, much more efficient than brush motor blower

    4: High reliability, specialized controller make the working more reliable

    5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling

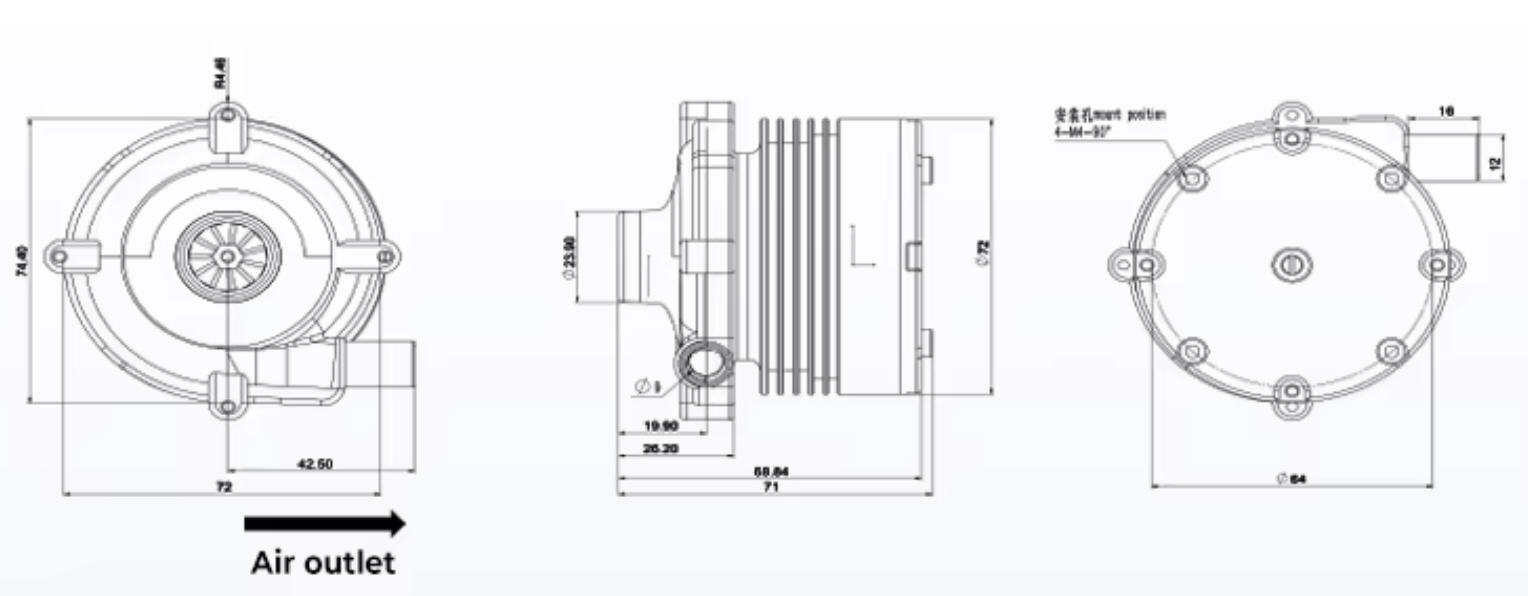

    Dimensions:

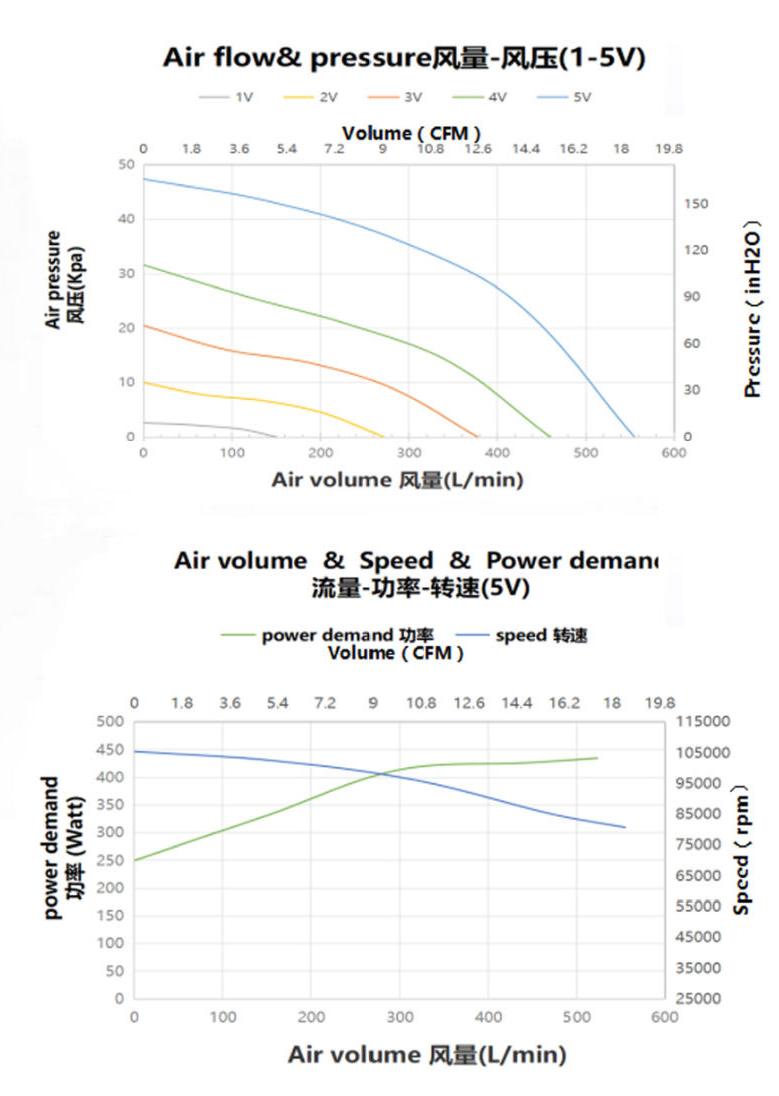

    Performance Curve:

    Application:

    OWB7575 can be used in many applications, such as fuel cell systems, rapid inflation and pumping scenarios, environmental sampling devices, and more.


    DC blower; Cpap blower; Low noise blower; Clinical ventilator; Home ventilator; Breathing machine;Fuel cell;Express air cushion machine;Beauty air cooler;Sampling instrument;Expectorant vest.
