General Descriptions:

The JY12M is the N and P Channel logic enhancement mode power field transistors are produced using high cell density DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management and other battery powered circuits where high-side switching, and low in-line power loss are needed in a very small outline surface mount package.

Features:

*Low Input Capacitance

*Fast Switching Speed

Applications:

● Power Management
● DC/DC Converter
● DC Motor Control
● LCD TV & Monitor Display Inverter
● CCFL inverter

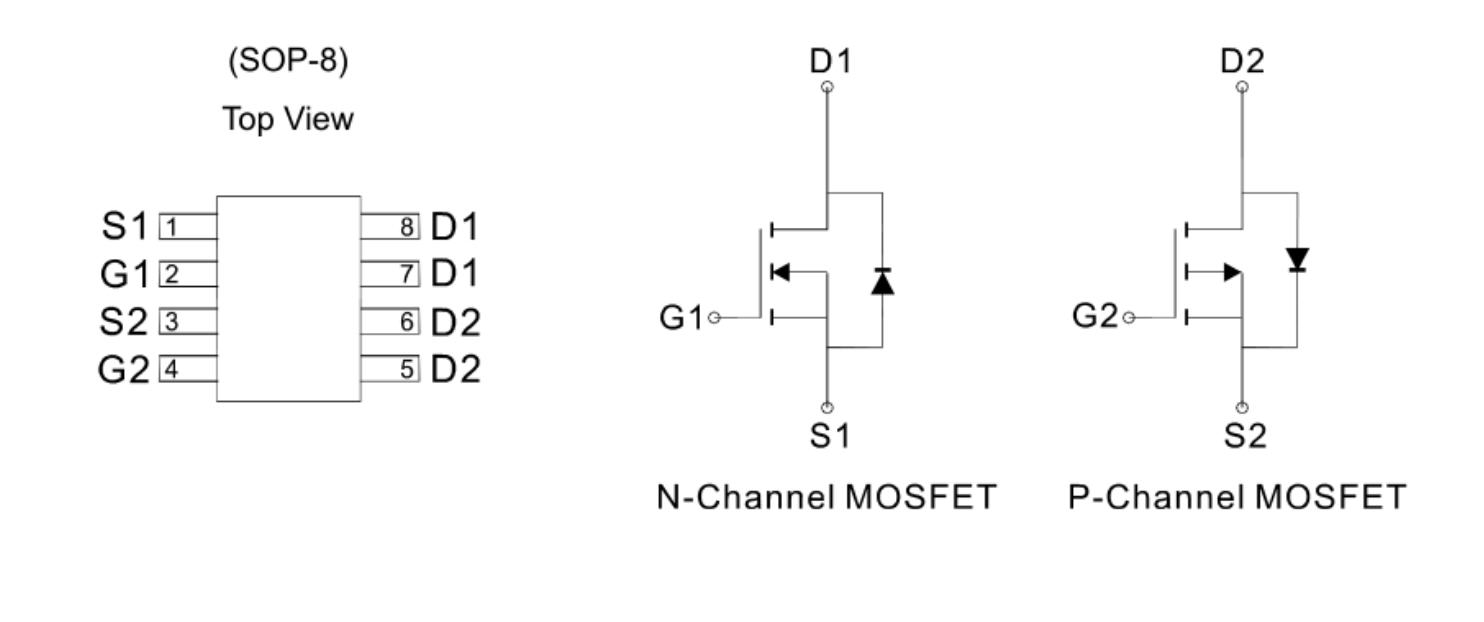

PIN Configuration:

Absolute Maximum Ratings( Ta=25℃ Unless Otherwise Noted):

SOP-8 Package Outline:

For more production information, please contact with us via email: ivanzhu@junqitradinig.com
