JQ22SBL50-G4.29 BLDC Gear Motor Parameters:
| Model | Unit | JQ22SBL50-G4.29 ( H42205021) |
| Rated Speed | rpm | 7695 |
| Rated Torque | mN.m | 89.93 |
| Reduction Ratio | 4.29 | |
| Efficiency | % | 90 |
| Average Backlash No Load | ° | 1 |
| Weight | g | 176 |
JQ22SBL50 motor data
| Model | JQ22SBL50 | |
| Rated Voltage | V | 24 |
| Rated Speed | rpm | 33010 ±10% |
| Rated Current(Max,continuous current) | A | 3.8A |
| Rated Torque(Max.continuous torque) | mNm | 23.3 |
| Rated Power | W | 78.5 |
| No load speed | rpm | 35000±10% |
| No load current | mA | 230±50% |
| Stall current | A | 63.0 |
| Stall torque | mNm | 409.7 |
| Max.efficiency | % | 88 |
| Terminal resistance phase to phase | Ω | 0.38±10% |
| Terminal inductance phase to phase | μH | 128±20% |
| Back-EMF constant | mV/rpm | 0.68 |
| Torque constant | mNm/A | 6.52 |
| Speed constant | rpm/V | 1464 |
| Current constant | A/MnM | 0.153 |
| Speed/torque gradient | rpm/mNm | 85.42 |
| Mechanical time constant | ms | 2.46 |
| Rotor inertia | gcm² | 2.75 |
| Operating temperature range | ℃ | -40~+85 |
| Winding Max permissible | ℃ | +155 |
| Housing material | stainless steel | |
| Number of poles | 2 | |
| Number of Phases | 3 | |
| Weight of motor | g | 126 |

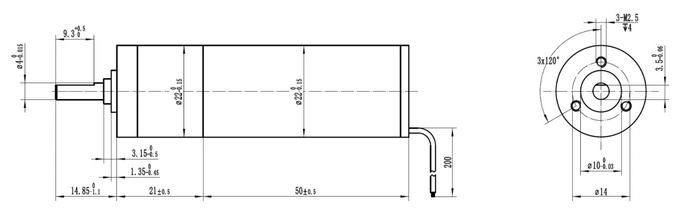

Motor Dimensional Drawing:
| Motor line 0.5mm² | Hall line 0.1mm² | ||||||
| U | V | W | Vhall5-24VDC | GND | HU | HV | HW |
| Yellow | White | Blue | Red | Black | Yellow | White | Blue |
