1: Brushless DC Air Blower Features:
1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise
2: High pressure and airflow output by compact size design
3: High efficiency, much more efficient than brush motor blower
4: High reliability, specialized controller make the working more reliable
5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling

2: Products Parameters

3: Products performance

OWB9250 24V DC brushless blower commutating period

OWB9250 brushless DC blower Performance curves

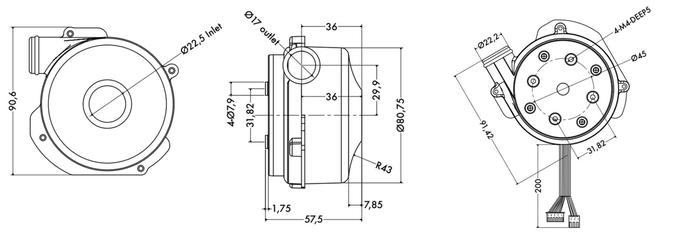

4: Overall dimensions

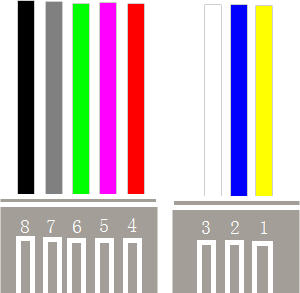

5: Wiring diagram

6: Attentions
1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2: Add a filter attach to the intake makes the blower bearing longer service life.
3: The correct rotation direction is CCW
4: Do not use the blower in High temperature ,high humidity, high magnetic fields
5: Please use suitable power supply for the blower.

FAQ:

Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board

Can we connect this centrifugal air blower directly onto power source?
