Pump Choice:

Features:

1. Flexible start protection, slow start

2. Adopt brushless motor with speed regulation and PWM duty ratio to control different running speed and reduce power output.

3. Fault feedback protection

4. Overvoltage and low voltage protection

5. Blocking protection

6. Low Noise

Technical Parameters:

Rated Voltage: DC24V

Rated Current: 9.2A

Operating Voltage: DC18~32V

Working environment: -40℃~85℃

Special handling ambient temperature: -45℃~105℃

Working Medium: 50% glycol aqueous solution( preferably organic type, particle≯0.35, content≯0.1g/L)

Performance parameters: Q=6000L/h, H=7.5m, P=220W±5% (200W Max)

Protection level: IP68

Working Noise: ≤50dB

Working Life: ≥35000h

Weight: 1.8kg (including bracket)

Protection function: Blocking, reverse connection, Low/ over voltage, over current, idling, over temperature.

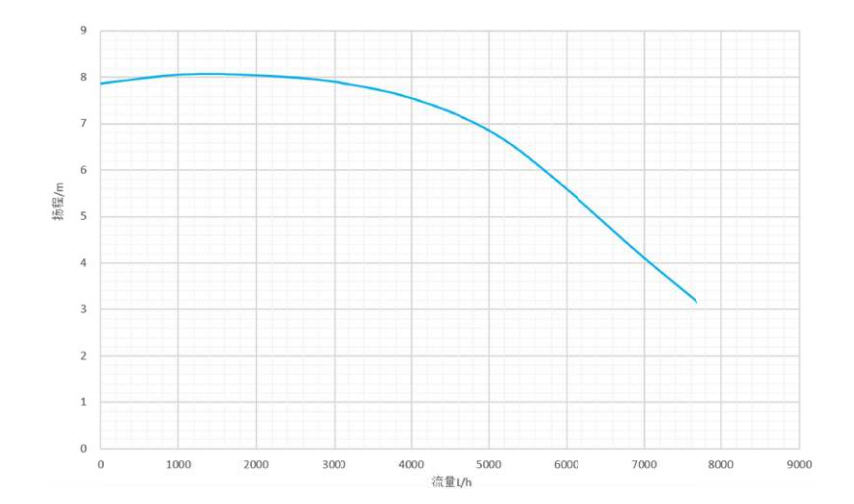

Water Pump P-Q Performance Curve:

Dimensions(mm):

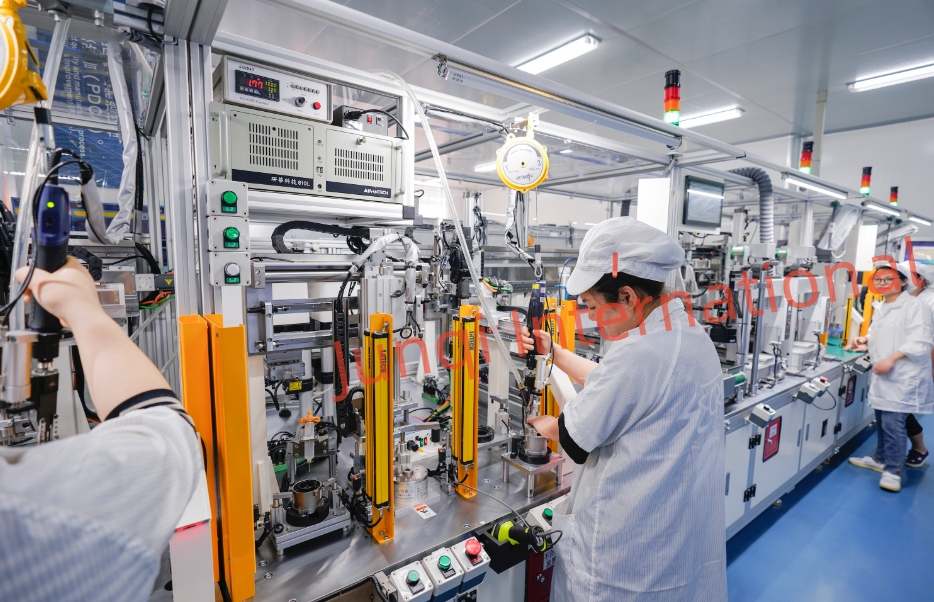

Workshop:

Changzhou Junqi Mechanical Electronics Co.,Ltd  is a professional Exporter relies on five parnter physical factories.

The main products: Auto Parts( Power window switch,Auto electric water pumps, Auto lock, Door handle, Wipper motor and window regulator motor), Stepping motor and driver, Brushless DC motor and driver, DC Gear Motor, PM Step motor, Brushless dc blower and Special power supply ( Deuterium lamp and power supply)

80% of our products are produced by our Production-oriented partner factories,our products are stable and reliable performance with powerful technical support, so we can offer comprehensive product solutions to our clients with competitive development ability.we are specialized and experienced inindustrial electrical products,we have our own superb core technology and mature product line,even we have our own OEM controlling microchip. as most of Junqi products are directly come from the manufacturers (our partner factories),our products are more competitive pricing,more powerful developing ability,faster response and professional service.

Our partner factories can provide talented individuals with access to advanced technology and cutting-edge equipment, ensuring the yield of high-quality products. the partner factories have successfully passed the quality management system certification for the ISO9001, IATF16949 and ISO14001 etc. These are to ensure that all the goods received by our customers pass the inspection.
