| Brand Name : | JEUNKEI |
| Model Number : | JQ86STH65-2808A |
| Certification : | RoHS, ISO9001, CE |
| Price : | USD35-USD50/PC |
| Payment Terms : | T/T, , Western Union, Paypal |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | depend on the order quantity /Negotiable |
General Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 220N@20mm from the flange |
| Max.Axial Force | 60N |
| Dielectric Strength | 1200VAC/1s |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electrical Parameters:
| Model | JQ86STH65-2808A |
| Step Angle | 1.8°/ full step |
| No. of Phase | 4 |
| Rated Voltage | 3.64VDC |
| Rated Current | 2.8A |
| Resistance/Phase | 1.3±10 OHMS@20℃ |
| Inductance/Phase | 3.9±20% mH@1kHz |
| Holding Torque | 2.2N.m |
| Rotor Inertia | 1000g.cm² |
| Weight | 1.7kg |
| Temperature Rise | less than 80K |
| Insulation Class | B 130℃ |

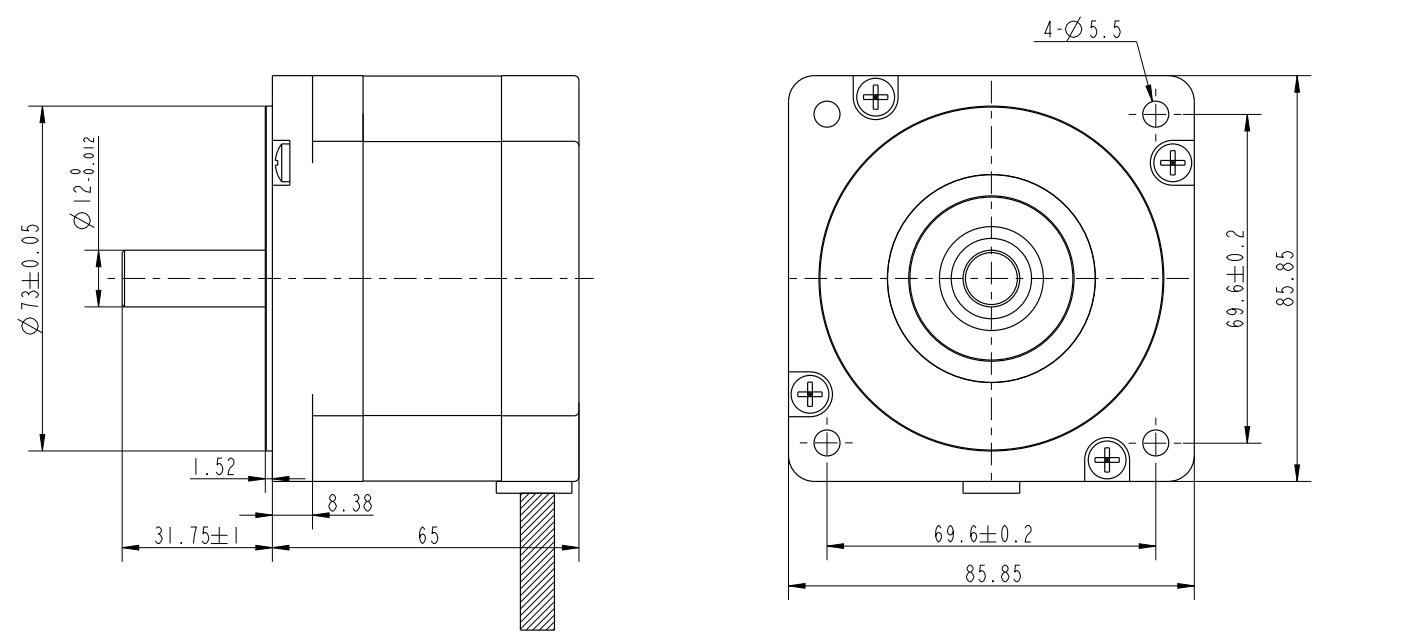

Dimension(mm):
Wiring Diagram:
Our company motors contains hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment...
The motor production Process
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
|
|
