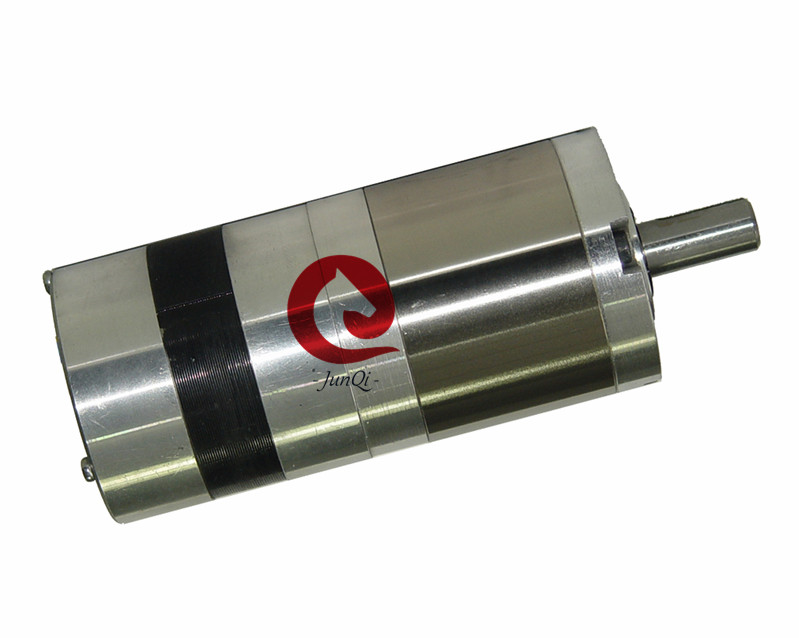

NEMA23(57mm) 74mm body Length 36V 5000RPM 45N.m Torque Brushless DC Planetary Gear Motor for Automatic Industry
Features:
1. Wide Speed Range, Flat Torque
2. Compact And High Power
3. Excellent Speed Stability
4. High Efficiency And Energy-Saving
JQ57BL74-3650/56JM300K Wire Diagram:
| Type | Color | Functions |
UL1430 AWG26 | Reb | Vcc |
| Blue | Ha | |
| Green | Hb | |
| White | Hc | |
| Black | GND | |
UL1430 AWG20 | Yellow | Phase U |
| Red | Phase V | |
| Black | Phase W |
JQ57BL74-3650A/56JM300K Wire Diagram:
| Type | Color | Functions |
UL1430 AWG26 | Reb | Vcc |
| Blue | Ha | |
| Green | Hb | |
| White | Hc | |
| Black | GND | |
UL1332 AWG18 | Yellow | Phase U |
| Red | Phase V | |
| Black | Phase W |
Driving Motor Specification:
| Item | Unit | JQ57BL74-3650 | JQ57BL74-3650A |
| Number of poles | 4 | 6 | |
| Number of Phase | 3 | 3 | |
| Rated Voltage | VDC | 36 | 36 |
| No-Load Speed | rpm | 5000 | 5000 |
| Rated Speed | rpm | 4000 | 4000 |
| Rated Torque | N.m | 0.22 | 0.4 |
| Rated Power | W | 99 | 166 |
| Peak Torque | N.m | 0.7 | 1.2 |
| Peak Current | A | 12 | 27 |
| Line to Line resistance | ohms@20℃ | 0.64 | 0.38 |
| Line to Line Inductance | mH | 2 | 0.55 |
**Notes: Above is standard motor, we can be designed &manufactured with
customized request!!

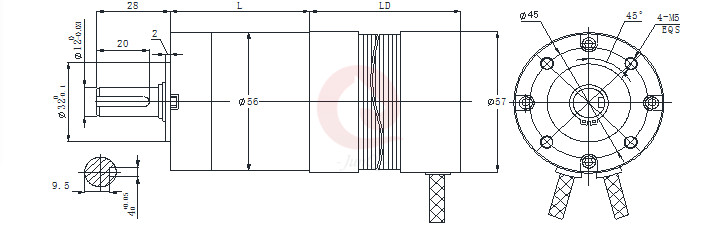

Mechanical Size:
JQ57BL74-3650/56JM300K
JQ57BL74-3650A/56JM450K
Brushless DC Gear Motor Technical Data:
JQ57BL74-3650/56JM300K Gear Motor data(LD=73.6mm)
| Reduction Ratio | 3.60 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | 154 | 187 | 220 | |
| Number of Gear Trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | |
| Gearbox Length(L) | mm | 37.8 | 37.8 | 37.8 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 71.9 | 71.9 | 71.9 |
| Rated Speed | rpm | 1111 | 941 | 750 | 308 | 267 | 222 | 174 | 143 | 93 | 77 | 66 | 56 | 42 | 33 | 26 | 21 | 18 |
| Rated Torque | N.m | 0.71 | 0.84 | 1.1 | 2.3 | 2.7 | 3.2 | 4.1 | 5.0 | 6.9 | 8.4 | 9.8 | 12 | 15 | 19 | 22 | 27 | 30 |
Max.Permissible load in a short time | N.m | 9 | 9 | 9 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 | 90 |
JQ57BL74-3650A/56JM450K Gear Motor data(LD=73.6mm)
| Reduction Ratio | 3.60 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | 154 | 187 | 220 | |
| Number of Gear Trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | |
| Gearbox Length(L) | mm | 37.8 | 37.8 | 37.8 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 71.9 | 71.9 | 71.9 |
| Rated Speed | rpm | 1111 | 941 | 750 | 308 | 267 | 222 | 174 | 143 | 93 | 77 | 66 | 56 | 42 | 33 | 26 | 21 | 18 |
| Rated Torque | N.m | 1.3 | 1.5 | 1.9 | 4.2 | 4.9 | 5.8 | 7.5 | 9.1 | 13 | 15 | 18 | 21 | 28 | 35 | 40 | 45 | 45 |
Max.Permissible load in a short time | N.m | 9 | 9 | 9 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 | 90 |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: Brake, connector , Encoder
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
