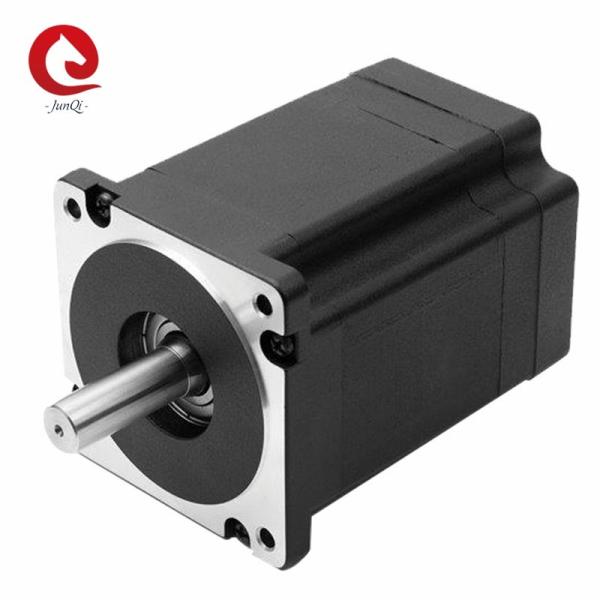

NEMA34 86mm BLDC Motor, JQ86BLA Series 48VDC, 3000RPM torque 0.4~2.22N.m Square Body brushless dc motor
Product Feature: 1.Small size dc gear motor with low speed and big torque 2.50mm gear motor provide 17kg.cm torque and more reliable 3.Suitable to small diameter, low noise and big toque application Application: Robot,lock. Auto shutter, USB fan,Slot machine,Money detector Coin refund devices,Currency count machine,Towel dispensers Automatic doors,Peritoneal machine,Automatic TV rack, Office equipment ,Household appliances,etc.
Quick Details:
| Model | Frame Size | Rated Power W) | Body Length (mm) | Rated Voltage (VDC) | Rated Torque (Nm) | Rated Current (A) | Rated Speed (RPM) |
| JQ86BLA64 | 86mm | 130 | 64 | 48 | 0.4 | 3.3 | 3000 |
| JQ86BLA77 | 86mm | 250 | 77 | 48 | 0.8 | 5.6 | 3000 |
| JQ86BLA105 | 86mm | 500 | 105 | 48 | 1.6 | 12 | 3000 |
| JQ86BLA125 | 86mm | 700 | 125 | 48 | 2.22 | 17 | 3000 |
General Specification:
| Item | Specification |
| Winding Type | Star Connection |
| Hall Effect Angle | Electrical Angle of 120 degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 220N( 20mm from the flange) |
| Max.Axial Force | 45N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electric Connection:
| Type | Color | Functions |
UL1430 AWG24 | Red | Vcc |
| Blue | U(Hu) | |
| Green | V(Hv) | |
| White | W(Hw) | |
| Black | GND | |
UL1332 AWG16 | Yellow | Phase U |
| Red | Phase V | |
| Black | Phase W |
Electricl Specification:
| Item | Unit | JQ86BLA64 | JQ86BLA77 | JQ86BLA105 | JQ86BLA125 |
| Number of poles | 8 | 8 | 8 | 8 | |
| Number of Phase | 3 | 3 | 3 | 3 | |
| Rated Voltage | VDC | 48 | 48 | 48 | 48 |
| Rated Torque | N.m | 0.4 | 0.8 | 1.6 | 2.22 |
Continuous stall torque | N.m | 0.48 | 0.96 | 1.92 | 2.66 |
| Rated Speed | RPM | 3000 | 3000 | 3000 | 3000 |
| Rated Power | W | 130 | 250 | 500 | 700 |
| Peak Torque | N.m | 1.2 | 2.4 | 4.8 | 6.66 |
| Peak Current | A | 10 | 17 | 36 | 51 |
| Line to Line resistance | ohms@20℃ | 1 | 0.34 | 0.14 | 0.1 |
| Line to Line Inductance | mH | 1.4 | 0.6 | 0.36 | 0.24 |
| Torque Constant | N.m/A | 0.122 | 0.149 | 0.135 | 0.131 |
| Back EMF | Vrms/KRPM | 9 | 11 | 10 | 9.7 |
| Rotor Inertia | g.cm2 | 400 | 800 | 1600 | 2400 |
| Motor Length | mm | 64 | 77 | 105 | 125 |
| Weight | kg | 1.5 | 1.85 | 2.7 | 4 |
**Notes: Above is standard motor, we can be designed &manufactured with
customized request!!
Mechanical Size:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
