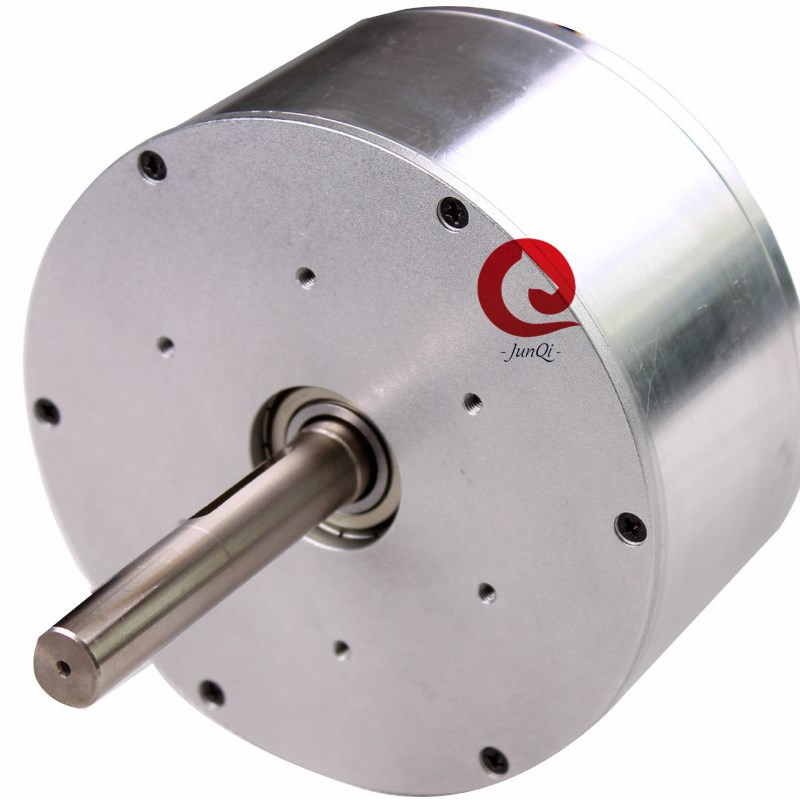

    125mm Round Direct Drive Brushless DC Electric Motor 340W 60VDC 480RPM 6.8N.M

    Ask Lasest Price
    Brand Name : Junqi
    Model Number : JQ125RBL60
    Certification : CE, RoHs, REACH
    Price : USD100-300/PC Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000set/month
    Delivery Time : 4weeks after get payment (base on order),
    • Product Details
    • Company Profile

    125mm Round Direct Drive Brushless DC Electric Motor 340W 60VDC 480RPM 6.8N.M

    125mm Diameter Brushless DC Motor 480W 60VDC 480RPM BLDC motor


    Quick Details:

    Model

    Frame

    Size

    Rated

    Power

    W)

    Body

    Length

    (mm)

    Rated

    Voltage

    (VDC)

    Rated

    Torque

    (Nm)

    Rated

    Current

    (A)

    Rated

    Speed

    (RPM)

    JQ125RBL60125mm34064606.8

    7.7

    480

    Features:

    1. Wide speed range, Smooth torque output.

    2. Excellent Speed Stability.

    3. Small and High Power.

    4. High Efficiency and Energy conservation.


    General Specification:

    ItemSpecification
    Winding TypeStar Connection
    Hall Effect AngleElectrical Angle of 120 degree
    Radial Play0.025mm@450g
    Axial Play0.08mm@450g
    Max.Radial Force220N( 20mm from the flange)
    Max.Axial Force60N
    Dielectric Strength600VAC/1S
    Insulation Resistance100MΩ,500VDC
    Ambient Temperature-20℃~+50℃
    Insulation ClassClass B

    Electric Connection:

    TypeColorFunctions

    UL1322

    AWG22

    RedVcc
    BlueU(Hu)
    GreenV(Hv)
    WhiteW(Hw)
    BlackGND

    UL3135

    AWG14

    YellowPhase U
    RedPhase V
    BlackPhase W

    Electricl Specification:

    ItemUnitJQ125RBL60
    Number of poles28
    Number of Phase3
    Rated VoltageVDC60
    Rated TorqueN.m6.8

    Continuous

    stall torque

    N.m8.16
    Rated SpeedRPM480
    Rated PowerW340
    Peak TorqueN.m40
    Peak CurrentA46
    Line to Line resistanceohms@20℃1.1
    Line to Line InductancemH2.4
    Torque ConstantN.m/A0.88
    Back EMFVrms/KRPM65
    Rotor Inertiag.cm22100
    Motor Lengthmm64
    Weightkg2.9

    **Notes: Above is standard motor, we can be designed &manufactured with customized request!!

    Mechanical Size:



    We can supply Extra service:

    If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

    Accessories service: Brake, connector , Encoder

    Customized Design: Customized Winding, Customized Flange, Customized Shaft....


    Our motor products contain range:


    FAQ:


    Q:How long is the lead time of orders?

    A:Lead time : 4 weeks after receive the deposit


    Q:What is your trade Assurance?

    A:100% product quality protection.

    100% product on time shipment protection.

    100% payment protection for your covered amount.


    Q: What’s Moq?

    A: 5PCS. Small Order Welcome.


    Q:Do You Make Customized Product?

    A:Yes,We Accpet IT.


    Q:About After Sale Serive?

    A: After Sales Services 24/7.


    Q: What should I do if I'm not satisfied with your product?

    A: If there are defects in its quality, we can exchange a good one for you.

    Generally, this problem is rare.


    Q:What is the payment term?

    A:T/T and Paypal is used more,please contact us for details


    Q:What is the quality level of your product?

    A:We produce good quality, refuse to produce low quality.
