Dia 42mm Planetary gearbox, Rated Torque0.5N.m~5.0N.m 24VDC 4000RPM JQ42RBL/42JMG50K Reduction Motor
Features:
High efficiency and low noise.
Durable and long service life.
Suitable for DIY or mechanical work.
Wire Diagram:
| Type | Color | Functions |
UL1007 AWG26 | Blue | Vcc |
| Yellow | Ha | |
| Brown | Hb | |
| Red | Hc | |
| Green | GND | |
UL1007 AWG22 | Red | Phase U |
| Brown | Phase V | |
| Black | Phase W |
Driving Motor Specification:
| Item | Unit | JQ42RBL30-2455 | JQ42RBL60-2454 |
| Number of poles | 8 | 8 | |
| Number of Phase | 3 | 3 | |
| Rated Voltage | VDC | 24 | 24 |
| No-Load Speed | rpm | 5500 | 5400 |
| Rated Speed | rpm | 4000 | 4200 |
| Rated Torque | mN.m | 20 | 56 |
| Rated Power | W | 8.4 | 25 |
| Peak Torque | mN.m | 60 | 170 |
| Peak Current | A | 1.7 | 4.4 |
| Line to Line resistance | ohms@20℃ | 5.9 | 1.6 |
| Line to Line Inductance | mH | 5.1 | 1.94 |
**Notes: Above is standard motor, we can be designed &manufactured with
customized request!!

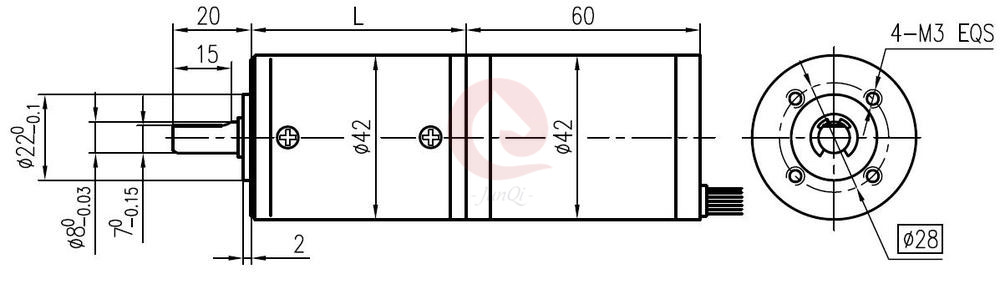

Mechanical Size:
Brushless DC Gear Motor Technical Data:
JQ42RBL30-2445 Gear Motor data
| Reduction Ratio | 3.8 | 4.9 | 15 | 19 | 24 | 56 | 71 | 91 | 116 | 212 | 271 | 346 | 442 | 565 | |
| Number of Gear Trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
| Gearbox Length(L) | mm | 35.2 | 35.2 | 45.7 | 45.7 | 45.7 | 56.0 | 56.0 | 56.0 | 56.0 | 66.3 | 66.3 | 66.3 | 66.3 | 66.3 |
| No-Load Speed | rpm | 1440 | 1127 | 367 | 289 | 229 | 98 | 77 | 60 | 47 | 26 | 20 | 16 | 12 | 9.7 |
| Rated Speed | rpm | 1047 | 820 | 267 | 211 | 167 | 71 | 56 | 44 | 34 | 19 | 15 | 12 | 9.0 | 7.1 |
| Rated Torque | N.m | 0.07 | 0.09 | 0.24 | 0.31 | 0.39 | 0.82 | 1.0 | 1.3 | 1.7 | 2.8 | 3.5 | 4.5 | 5 | 5 |
Max.Permissible load in a short time | N.m | 1.5 | 1.5 | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15 | 15 |
JQ33RBL80-2490 Gear Motor data
| Reduction Ratio | 3.8 | 4.9 | 15 | 19 | 24 | 56 | 71 | 91 | 116 | 212 | |
| Number of Gear Trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | |
| Gearbox Length(L) | mm | 35.2 | 35.2 | 45.7 | 45.7 | 45.7 | 56.0 | 56.0 | 56.0 | 56.0 | 66.3 |
| No-Load Speed | rpm | 1414 | 1107 | 360 | 264 | 225 | 96 | 76 | 59 | 47 | 25 |
| Rated Speed | rpm | 1099 | 861 | 280 | 221 | 175 | 75 | 59 | 46 | 36 | 20 |
| Rated Torque | N.m | 0.19 | 0.25 | 0.68 | 0.86 | 1.1 | 2.3 | 2.9 | 3.7 | 4.7 | 5 |
Max.Permissible load in a short time | N.m | 1.5 | 1.5 | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 15 |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: Brake, connector , Encoder
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
