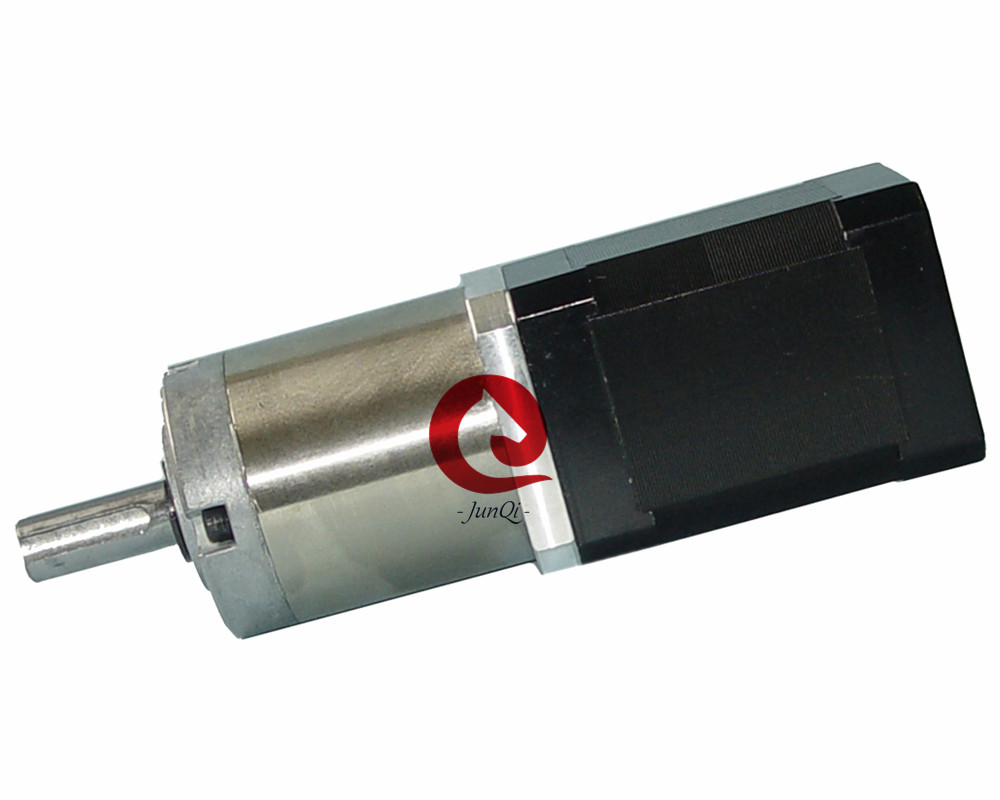

NEMA17(42mm) 60mm body length with Dia 42mm Reducer 42JM100K BLDC Planetary gear Motor 24V 6000RPM 10N.m
Brushless DC motor technology offer several advantages including high torque to weight ratio, increased efficiency and reliability, reduced noise and longer lifetime compared to brushed DC motors. The JUNQI International offers a wide variety of BLDC motors technologies such as Slotted, Slotless, Flat and Frameless motors in sizes from 14 to 90mm diameter.
Wire Diagram:
| Type | Color | Functions |
UL1430 AWG26 | Red | Vcc |
| Blue | Ha | |
| Green | Hb | |
| White | Hc | |
| Black | GND | |
UL1430 AWG20 | Yellow | Phase U |
| Red | Phase V | |
| Black | Phase W |
Driving Motor Specification:
| Item | Unit | JQ42BLS60-2460 | JQ42BLS60-2440A | JQ42BLS60-2440B |
| Number of poles | 8 | 10 | 6 | |
| Number of Phase | 3 | 3 | 3 | |
| Rated Voltage | VDC | 24 | 24 | 24 |
| No-Load Speed | rpm | 6000 | 4000 | 4000 |
| Rated Speed | rpm | 4000 | 3000 | 3000 |
| Rated Torque | mN.m | 125 | 160 | 170 |
| Rated Power | W | 52.5 | 50 | 53.5 |
| Peak Torque | mN.m | 380 | 480 | 510 |
| Peak Current | A | 10.6 | 8 | 9 |
| Line to Line resistance | ohms@20℃ | 0.8 | 1.1 | 1.05 |
| Line to Line Inductance | mH | 1.2 | 0.96 | 0.75 |
**Notes: Above is standard motor, we can be designed
&manufactured with customized request!!
Mechanical Size:
Brushless DC Gear Motor Technical Data:
JQ42BLS60-2460/42JM100K Gear Motor data
| Reduction Ratio | 3.71 | 5.18 | 14 | 19 | 27 | 49 | 59 | 58 | 82 | 95 | 115 | |
| Number of Gear Trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Gearbox Length(L) | mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| Rated Speed | rpm | 1078 | 772 | 286 | 211 | 148 | 82 | 68 | 59 | 49 | 42 | 35 |
| Rated Torque | N.m | 0.42 | 0.58 | 1.4 | 1.9 | 2.7 | 4.4 | 5.3 | 6.2 | 7.4 | 8.7 | 10 |
Max.Permissible load in a short time | N.m | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 25 |
JQ42BLS60-2440A/42JM100K Gear Motor data
| Reduction Ratio | 3.71 | 5.18 | 14 | 19 | 27 | 49 | 59 | 58 | 82 | 95 | 115 | |
| Number of Gear Trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Gearbox Length(L) | mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| Rated Speed | rpm | 809 | 579 | 214 | 158 | 111 | 61 | 51 | 44 | 37 | 32 | 26 |
| Rated Torque | N.m | 0.53 | 0.74 | 1.8 | 2.4 | 3.5 | 5.7 | 6.8 | 7.9 | 9.5 | 10 | 10 |
Max.Permissible load in a short time | N.m | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 25 |
JQ42BLS60-2440B/42JM100K Gear Motor data
| Reduction Ratio | 3.71 | 5.18 | 14 | 19 | 27 | 49 | 59 | 58 | 82 | 95 | 115 | |
| Number of Gear Trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Gearbox Length(L) | mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| Rated Speed | rpm | 809 | 579 | 214 | 158 | 111 | 61 | 51 | 44 | 37 | 32 | 26 |
| Rated Torque | N.m | 0.56 | 0.79 | 1.9 | 2.6 | 3.7 | 6.1 | 7.3 | 8.4 | 10 | 10 | 10 |
Max.Permissible load in a short time | N.m | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 25 |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: Brake, connector , Encoder
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Applications:
Widely used in automation equipment such as Copier ,printing machinery,Engraving machine,packing machine,grinting machine,robot,machine tool,Engraving machine,Medical apparatus,ATM machine,Milling machine,Sewing machine, ect.
|
|
