| Brand Name : | Junqi |
| Model Number : | JQ28HB45-0674A |
| Certification : | CE, RoHs, REACH |
| Price : | USD10-30/PC Negotialbe |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 10000set/month |
| Delivery Time : | 4weeks after get payment (base on order), |

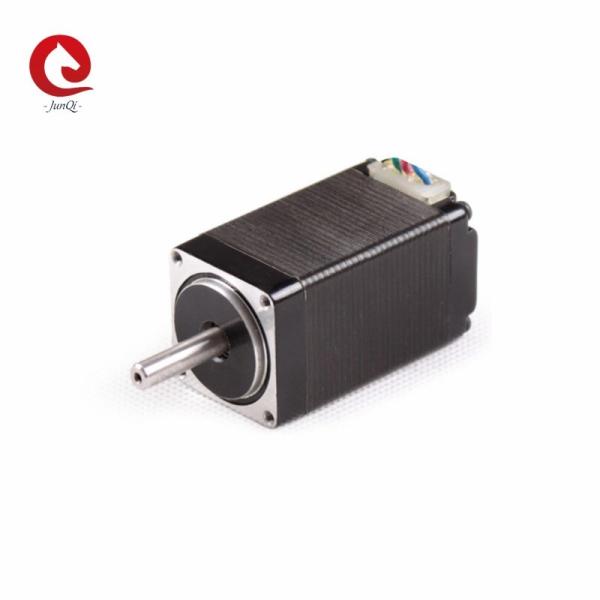

JQ28HB45-0674A 1.8Degree 2-phase stepper motor
Quick Details:
| Model | Frame Size | Phase | Shaft Type | Body Length (mm) | Holding Torque (Nm) | Rated Current (A) |
| JQ28HB45-0956A | NEMA11(28mm) | 2 | Single Shaft | 45 | 0.095 | 0.67 |
Mechanical Size:
Wiring Diagram:
Torque Curve:
| Items | Value |
| Phase | 2 |
| Step Angle | 1.8degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max Radial force | 28N 5mm from flange |
| Max Axial Force | 7N |
| Dielectric Strength | 600VAC / 1S |
| Insulation Resistance | 100MΩ ,500VDC |
| Ambient Temperature | -20℃~ +50℃ |
| Insulation Class | Class B |
| Certification | CE |
| IP Rate | IP30 |
| Lead Wire Type | Leads |
| Shaft Type | Single shaft |
| Rotor Inertia | 12 g.cm^2 |
| Frame Size | 28 mm |
| Body Length | 45 mm |
| Holding Torque | 0.095 N.m |
| Current/Phase | 0.67 A |
| Resistance | 6.8 Ω |
| Inductance | 4.9 mH |
| Winding Type | Bipolar |
| Detent Torque | 0.006 N.m |
| Front Shaft Length | 20 mm |
| Lead Wire No. | 4 |
| Weight | 0.14 kg |
| Shaft Diameter | 5 mm |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Professional Factory:
FAQ:
Q: How long is the lead time of orders?
A: Lead time : 4 weeks after receive the deposit
Q: What is your trade Assurance?
A: 100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q: Do You Make Customized Product?
A: Yes,We Accpet IT.
Q: About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q: What is the payment term?
A: T/T and Paypal is used more,please contact us for details
Q: What is the quality level of your product?
A: We produce good quality, refuse to produce low quality.
Stepper motor technology can be a good choice whenever controlled movement is required. They can be used to an advantage in applications where you need to control rotation angle, speed, position and synchronism. Delta Line portfolio offers wide options of micro stepper motors technology such as Hybrid, Flat, Hollow shaft or IP65 stepper motors, in sizes from 15 to 110mm.
Supply Stepper motor types as below:
1. PM stepper motors
2. Hybrid stepper motors
3. 3-Phase Stepper Motors
4. Hollow shaft stepper motors
5. Flat stepper motors
6. Stepper motors with encoder
7. IP65 Stepper motors
|
|
