| Brand Name : | Junqi |
| Model Number : | JQ28HB45-0956A |
| Certification : | CE, RoHs, REACH |
| Price : | USD10-30/PC Negotialbe |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 10000set/month |
| Delivery Time : | 4weeks after get payment (base on order), |
JQ28HB45-0956A 1.8Degree 2-phase stepper motor
Quick Details:
| Model | Frame Size | Phase | Shaft Type | Body Length (mm) | Holding Torque (Nm) | Rated Current (A) |
| JQ28HB45-0956A | NEMA11(28mm) | 2 | Single Shaft | 45 | 0.075 | 0.95 |
Mechanical Size:
Wiring Diagram:

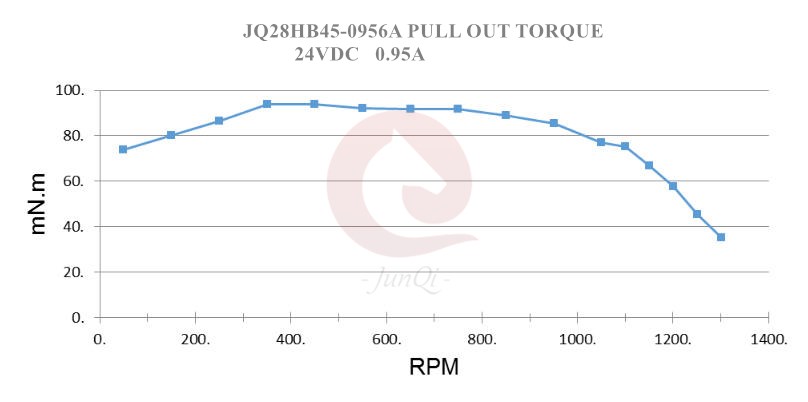

Torque Curve:
| Items | Value |
| Phase | 2 |
| Step Angle | 1.8degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max Radial force | 28N 5mm from flange |
| Max Axial Force | 7N |
| Dielectric Strength | 600VAC / 1S |
| Insulation Resistance | 100MΩ ,500VDC |
| Ambient Temperature | -20℃~ +50℃ |
| Insulation Class | Class B |
| Certification | CE |
| IP Rate | IP30 |
| Lead Wire Type | Leads |
| Shaft Type | Single shaft |
| Rotor Inertia | 12 g.cm^2 |
| Frame Size | 28 mm |
| Body Length | 45 mm |
| Holding Torque | 0.075 N.m |
| Current/Phase | 0.95 A |
| Resistance | 3.4 Ω |
| Inductance | 1.2 mH |
| Winding Type | Unipolar |
| Detent Torque | 0.006 N.m |
| Front Shaft Length | 20 mm |
| Lead Wire No. | 6 |
| Weight | 0.14 kg |
| Shaft Diameter | 5 mm |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Professional Factory:
FAQ:
Q: How long is the lead time of orders?
A: Lead time : 4 weeks after receive the deposit
Q: What is your trade Assurance?
A: 100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q: Do You Make Customized Product?
A: Yes,We Accpet IT.
Q: About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q: What is the payment term?
A: T/T and Paypal is used more,please contact us for details
Q: What is the quality level of your product?
A: We produce good quality, refuse to produce low quality.
Our motor products contain range:
|
|
