| Brand Name : | JEUNKEI |
| Model Number : | JQ60STH68-2008AF |
| Certification : | RoHS,CE |
| Price : | USD15-USD30/PC |
| Payment Terms : | T/T, , Western Union, Paypal |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | depend on the order quantity /Negotiable |
| Item | Specification |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 75N( 20mm from the flange) |
| Max.Axial Force | 15N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |

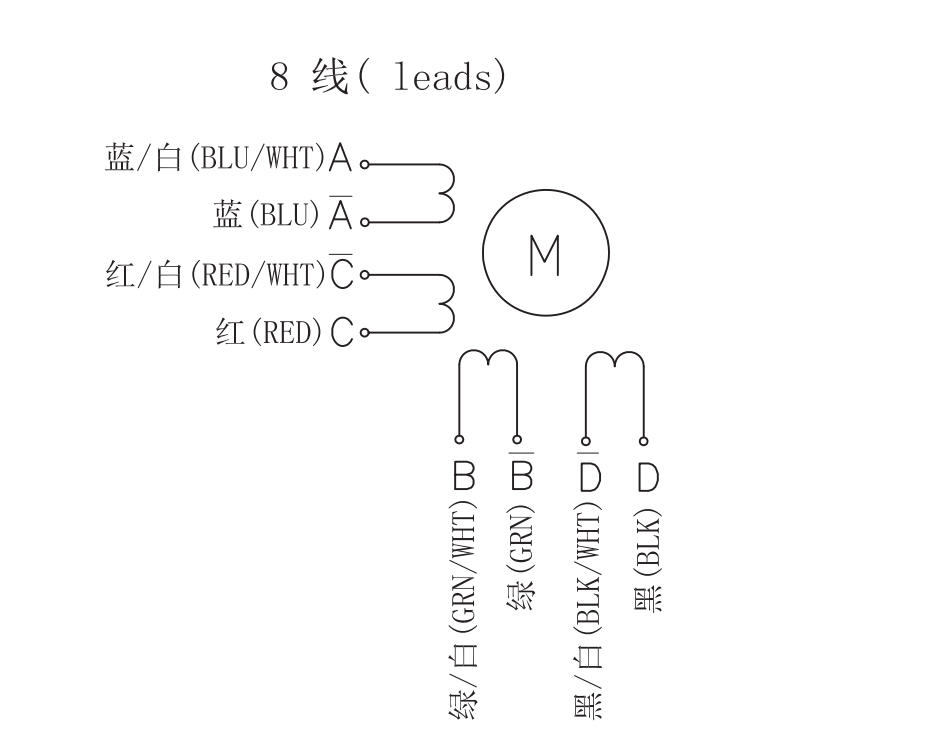

| Model | Current/ Phase | Resistance/ Phase | Inductance/ Phase | Holding Torque | Detent torque | #of Leads | Rotor Inertia | Length | Weight | |
| Single shaft | A | Ω | mH | N.m | N.m | # | g-cm² | mm | kg | |
JQ60STH65-2008AF | unipolar | 2.0 | 2.4 | 4.6 | 1.5 | 0.09 | 8 | 570 | 67 | 1.2 |
| parallel | 2.8 | 1.2 | 4.6 | 2.1 | ||||||
| series | 1.4 | 4.8 | 18.4 | 2.1 |
Applications:
Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.
