    P Channel Enhancement Mode Power MOSFET JY4P7M For High Current Load

    Ask Lasest Price
    Brand Name : JEUNKEI
    Model Number : JY4P7M
    Certification :
    Price : USD0.5-USD0.9/PC
    Payment Terms : T/T, Paypal
    Supply Ability : 10000pcs per month
    Delivery Time : Usually 5-8 working days after get payment
    • Product Details
    • Company Profile

    P Channel Enhancement Mode Power MOSFET JY4P7M For High Current Load


    General Description:
    The JY4P7M utilizes the latest trench processing techniques to achieve the high cell density and reduces the on‐resistance with low gate charge. These features combine to make this design an extremely efficient and reliable device for use in high current
    load applications.
    Features:
    ● ‐40V/‐70A, RDS(ON) ≤10mΩ@VGS=‐10V
    ● High density cell design for ultra low Rdson
    ● Fully characterized avalanche voltage and current
    ● Excellent package for good heat dissipation
    Applications:
    ● Load switch in high current applications
    ● Power Management for Inverter Systems
    PIN Descriptions:
    ‐40V/‐70A P Channel Enhancement Mode Power MOSFET JY4P7M for High Current Load

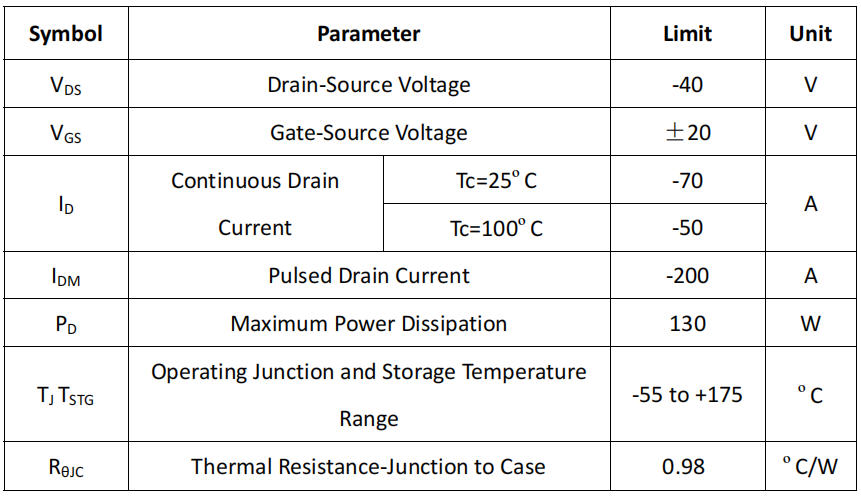

    Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted):
    Electrical Characteristics(Ta=25ºC Unless Otherwise Noted):
    Electrical Characteristics(Ta=25ºC Unless Otherwise Noted):
    TO252 Package Outline
