    JY09M N Channel Enhancement MOS IC TO-220 70V 90A Power MOSFET


    Genernal Description:

    The JY09M utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with low gate charge. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.


    Features:


    ● 70V/90A, RDS(ON) ≤6.8mΩ@VGS=10V
    ● Fast switching and reverse body recovery
    ● Fully characterized avalanche voltage and current
    ● Excellent package for good heat dissipation


    Applications:


    ● Power Switching application
    ● Hard switched and high frequency circuits
    ● Uninterruptible power supply

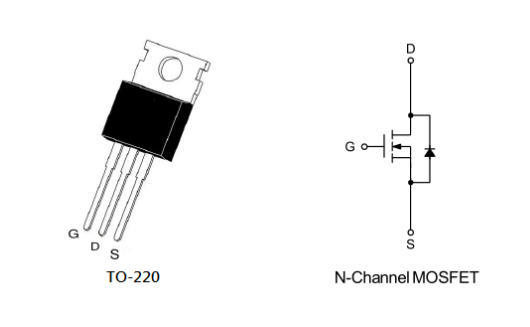

    PIN Description:


    Absolute Maximum Ratings(Tc=25℃ Unless Otherwise Noted):


    SymbolParameterLimitUnit
    VDSDrain-Source Voltage70V
    VGSGate-Source Voltage±20V
    IDContinuous Drain CurrentTC=25℃90A
    TC=100℃65
    IDMPulsed Drain Current315A
    PDMaximum Power Dissipation162W
    TJTSTGOperationg Junction and Storage Temperature Range-55~+175
    RΘJCThermal Resistance-Junction to Case0.85℃/W
    RΘJCThermal Resistance-Junction to Ambient62.5℃/W


    TO220-3 Package Outline


    SYMBOLMMINCHSYMBOLMMINCH
    MINNOMMAXMINNOMMAXMINNOMMAXMINNOMMAX
    A4.404.574.700.1730.1800.185Øp11.401.501.600.0550.0590.063
    A11.271.301.330.0500.0510.052e2.54BSC0.1BSC
    A22.352.402.500.0930.0940.098e15.08BSC0.2BSC
    b0.77-0.900.030-0.035H16.406.506.600.2520.2560.260
    b21.23-1.360.048-0.054L12.75-13.170.502-0.519
    C0.480.500.520.0190.0200.021L1--3.95--0.156
    D15.4015.6015.800.6060.6140.622L2250REF.0.098REF.
    D19.009.109.200.3540.3580.362Øp3.573.603.630.1410.1420.143
    DEP0.050.100.200.0020.0040.008Q2.732.802.870.1070.1100.113
    E9.709.9010.100.3820.3890.398Θ1
    E1-8.70--0.343-Θ2
    E29.8010.0010.200.3860.3940.401
