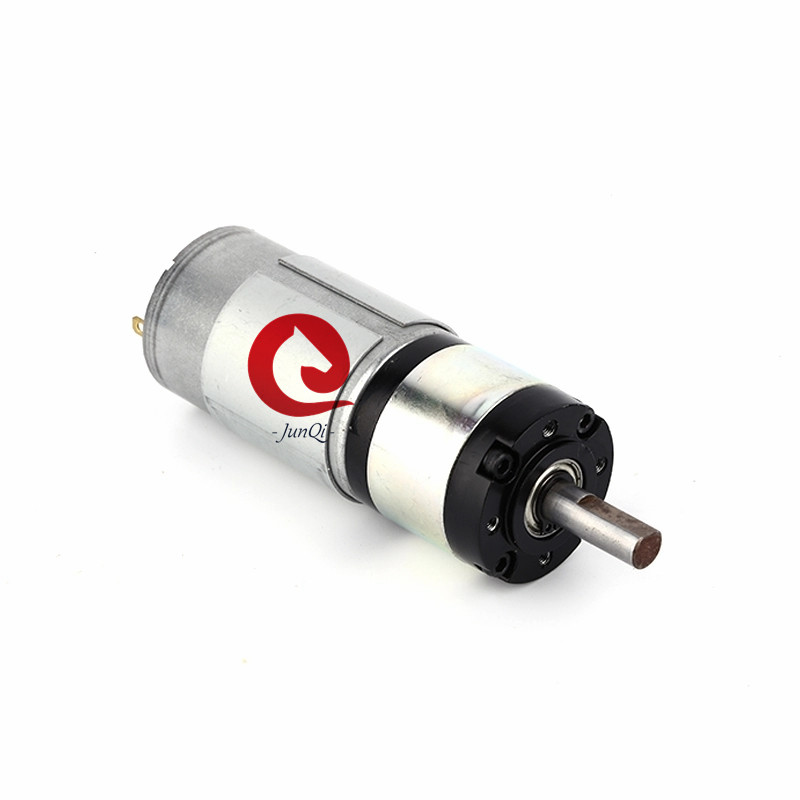

    JQM-36RP 555 36mm Customized 12V24V 1000rpm Brush DC Planetary Gear Box Reducer Motor For Electric Bicycle

    Ask Lasest Price
    Brand Name : Junqi
    Model Number : JQM-36RP555
    Certification : CE,ROHS, UL
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union,PAYPAL
    Supply Ability : 10000PCS/Month
    Delivery Time : as confirmed
    • Product Details
    • Company Profile

    JQM-36RP 555 36mm Customized 12V24V 1000rpm Brush DC Planetary Gear Box Reducer Motor For Electric Bicycle

    JQM-36RP 555 36mm Customized 12V24V 1000rpm Brush DC Planetary gear box reducer motor for Electric bicycle

    JQM-36RP 555 36mm Customized 12V24V 1000rpm Brush DC Planetary Gear Box Reducer Motor For Electric Bicycle


    Technical Data of Gearbox:

    Number of stages
    1
    2
    3
    4
    5
    Reduction ratio
    3.7,5.2
    14,19,27
    51,71 100,139
    189,264,369,515,721
    977,1367,1910,2671,3736
    Gearbox length “L”mm
    26.5
    34.5
    42.5
    50.5
    58.5
    Breaking torque(kgf.cm)
    10
    18
    40
    50
    60
    Gearbox efficiency
    90%
    81%
    73%
    65%
    59%

    Driving Motor Data:

    Motor model
    Rated
    Volt.
    No load
    Load
    Stall
    Current
    Speed
    Current
    Speed
    Torque
    Output power
    Torque
    Current
    V
    mA
    r/min
    mA
    r/min
    gf.cm
    W
    gf.cm
    mA
    JQM-555-012-3000
    12
    ≤140
    3000
    ≤800
    2200
    150
    3.4
    ≥480
    ≥2400
    JQM-555-012-4500
    12
    ≤220
    4500
    ≤1200
    3300
    220
    7.4
    ≥700
    ≥3840
    JQM-555-012-6000
    12
    ≤350
    6000
    ≤2000
    4500
    300
    13.8
    ≥960
    ≥4800
    JQM-555-024-3000
    24
    ≤70
    3000
    ≤400
    2200
    150
    3.4
    ≥480
    ≥1280
    JQM-555-024-4500
    24
    ≤110
    4500
    ≤600
    3300
    220
    7.4
    ≥700
    ≥2400
    JQM-555-024-6000
    24
    ≤180
    6000
    ≤1000
    4500
    300
    13.8
    ≥960
    ≥3200

    Gear Motor Mechanical Size:

    JQM-36RP 555 36mm Customized 12V24V 1000rpm Brush DC Planetary Gear Box Reducer Motor For Electric Bicycle

    Gear Motor Electric Data:

    Model Number Rated Volt. No Load At Max Efficiency Stall
    Speed Current Speed Current Torque Power Current Torque
    rpm mA rpm mA Kgf.cm W mA Kgf.cm
    JQM-36RP5550126000-5.2K 12V 1153 650 960 3000 1.2 11.8 10620 6.3
    JQM-36RP5550128000-14K 12V 571 900 465 3500 4 19.1 11550 19
    JQM-36RP5550126000-26.9K 12V 223 400 175 1600 4.2 7.5 5350 20
    JQM-36RP5550126000-50.9K 12V 117 680 85 2680 13 11.3 8350 60
    JQM-36RP5550126000-71.2K 12V 84 500 70 2400 14 10.1 8380 71
    JQM-36RP5550126000-99.5K 12V 60 450 48 2000 16 7.9 6300 78
    JQM-36RP5550124500-264K 12V 17 400 12 1500 28 3.4 2800 104
    JQM-36RP5550126000-721K 12V 8 400 6 3200 160 9.9 9000 630
    JQM-36RP5550246000-3.7K 24V 1621 500 1216 2000 1.5 18.7 8000 7.5
    JQM-36RP5550246000-5.2K 24V 1153 400 1016 1600 1.25 13.0 5380 8
    JQM-36RP5550124500-26.9K 24V 167 550 147 2000 6 9.1 6500 30
    JQM-36RP5550244500-71.2K 24V 63 220 48 1100 10 4.9 3700 50
    JQM-36RP5550243000-99.5K 24V 30 150 22 550 12 2.7 1180 55
    JQM-36RP5550244500-139K 24V 32 380 26 2000 35 9.3 6800 170
    JQM-36RP5550246000-189K 24V 31 360 26 1800 41 10.9 4730 204
    JQM-36RP5550244500-264K 24V 17 220 14 1000 43 6.2 2700 221
    JQM-36RP5550244500-369K 24V 12 250 9 850 70 6.5 2500 280
    JQM-36RP5550246000-1367K 24V 4.3 450 3.2 2000 250 8.2 6500 1200
    Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in

    Professional Factory:

    JQM-36RP 555 36mm Customized 12V24V 1000rpm Brush DC Planetary Gear Box Reducer Motor For Electric Bicycle

    Certificate Photos :

    JQM-36RP 555 36mm Customized 12V24V 1000rpm Brush DC Planetary Gear Box Reducer Motor For Electric Bicycle

    Packing:

    JQM-36RP 555 36mm Customized 12V24V 1000rpm Brush DC Planetary Gear Box Reducer Motor For Electric Bicycle

    Transportation:

    JQM-36RP 555 36mm Customized 12V24V 1000rpm Brush DC Planetary Gear Box Reducer Motor For Electric Bicycle

    Motor Application Fields:

    JQM-36RP 555 36mm Customized 12V24V 1000rpm Brush DC Planetary Gear Box Reducer Motor For Electric Bicycle

    FAQ:

    Q:How long is the lead time of orders?

    A:Lead time : 4 weeks after receive the deposit

    Q:What is your trade Assurance?

    A:100% product quality protection.

    100% product on time shipment protection.

    100% payment protection for your covered amount.

    Q: What’s Moq?

    A: 5PCS. Small Order Welcome.

    Q:Do You Make Customized Product?

    A:Yes,We Accpet IT.

    Q:About After Sale Serive?

    A: After Sales Services 24/7.

    Q: What should I do if I'm not satisfied with your product?

    A: If there are defects in its quality, we can exchange a good one for you.

    Generally, this problem is rare.

    Q:What is the payment term?

    A:T/T and Paypal is used more,please contact us for details

    Q:What is the quality level of your product?

    A:We produce good quality, refuse to produce low quality.
