    Junqi 2 Phase Stepper Driver M545D 24-50VDC 1.5-4.5A For 57mm/86mm Stepping Motor

    Ask Lasest Price
    Brand Name : JEUNKEI
    Model Number : M545D
    Certification : TS16949,ISO9001, ISO14001,CE, ISO14001
    Price : USD25-USD20/PC
    Payment Terms : T/T, , Western Union, Paypal
    Supply Ability : 1000pcs per month
    Delivery Time : depend on the order quantity /Negotiable
    MOQ : 5pcs
    • Product Details
    • Company Profile

    Junqi 2 Phase Stepper Driver M545D 24-50VDC 1.5-4.5A For 57mm/86mm Stepping Motor

    Junqi 2Phase Stepper Driver M545D 24-50VDC,1.5-4.5A For 57mm/86mm Stepping Motor


    Product Features:


    1. A high performance stepper motor driver useing bipolar constant-current chopper technology.

    2. Low-noise, low-vibration and low temperature rising

    3. Voltage 18~50V DC

    4. With 8 stalls output current setting, peak current 4.5A

    5. With 14 stalls microstep subdivision setting

    6. Automatic Half current, self-test, over voltage, under voltage, over current protection

    7. Internal optical isolation, highest frequency response 200KHZ

    8. Suitable for 2 and 4 phase nema23 and nema43 hybrid stepper motor with currenge range 1.5-4.5A


    Current Selection:
    Junqi Nema23/34 Stepper Driver DM545D 4.5A 24~50VDC For 2Phase Stepper Motor Controller CNC Engraving Machine 0

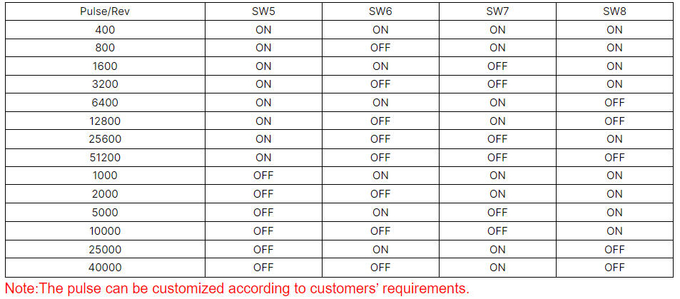

    Mircrostep Selection:
    Junqi Nema23/34 Stepper Driver DM545D 4.5A 24~50VDC For 2Phase Stepper Motor Controller CNC Engraving Machine 1

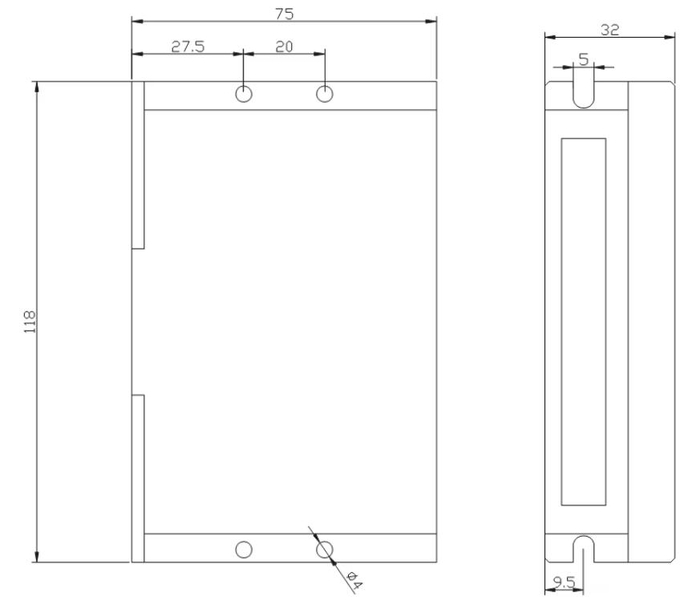

    Dimension:(Unit=mm):

    Junqi Nema23/34 Stepper Driver DM545D 4.5A 24~50VDC For 2Phase Stepper Motor Controller CNC Engraving Machine 2

    Ports instroduction:


    1.Power interface ports:

    Port No.SymbolNameRemark
    1Power input portsGNDInput VoltageDC24V-50V
    2+vdc
    3Motor Phase wire input portsA+Phase A+Motor phase A
    4A-Phase A-
    5B+Phase B+Motor phase B
    6B-Phase B-

    2. Control signal input ports

    Port No.SymbolName
    1PUL+Pulse signal+
    2PUL-Pulse signal-
    3DIR+Direction signal+
    4DIR-Direction signal-
    5ENA+Enable signal+
    6ENA-Enable signal-

    Typical Connections:

    The internal interface circuits of the driver are isolated by the opt coupler signals, R in the figure is an external current limiting resistor. The connection is differential. And it has a good anti-jamming performance.

    Junqi Nema23/34 Stepper Driver DM545D 4.5A 24~50VDC For 2Phase Stepper Motor Controller CNC Engraving Machine 3Junqi Nema23/34 Stepper Driver DM545D 4.5A 24~50VDC For 2Phase Stepper Motor Controller CNC Engraving Machine 4


    Product Descriptions:


    The M545D is a new generation microstep stepper motor driver. Due to the adoption of the advanced bipolar constant-current chopper driver technology, it shows stable operation, provides excellent high torque. Moreover, it significantly reduces the noises and vibration of the operating motor. The M545D has the feature of low-noise, low-vibration and low-heating. The M545D is DC24-48V power supply. It applies to 2-phase hybrid stepper motor under 4.5A current The M545D has 14l kinds of microsteps. The maximum step number is 51200 steps/rev (microstep is 1/256). The peak operating current ranges from 1.5A to 4.5A., and the output current has 8 stalls. The M545D has automatic semi-flow, motor misconnected,over-voltage, under-voltage, and over-current protection functions.


    More Driver Choice:


    Junqi 2 Phase Stepper Driver M545D 24-50VDC 1.5-4.5A For 57mm/86mm Stepping Motor


    FAQ:


    Q:How long is the lead time of orders?

    A:Lead time : 4 weeks after receive the deposit


    Q:What is your trade Assurance?

    A:100% product quality protection.

    100% product on time shipment protection.

    100% payment protection for your covered amount.


    Q: What’s Moq?

    A: 5PCS. Small Order Welcome.


    Q:Do You Make Customized Product?

    A:Yes,We Accpet IT.


    Q:About After Sale Serive?

    A: After Sales Services 24/7.


    Q: What should I do if I'm not satisfied with your product?

    A: If there are defects in its quality, we can exchange a good one for you.

    Generally, this problem is rare.


    Q:What is the payment term?

    A:T/T and Paypal is used more,please contact us for details


    Q:What is the quality level of your product?

    A:We produce good quality, refuse to produce low quality.
