2DM2280 2 Phase Digital stepper motor driver

The 2DM2280 is a two phase digital stepper driver based on DSP. Its Micro step resolutions and output current are programmable. And it has advanced control algorithm, which can brings a unique level of system smoothness, provides
optimum torque and mid-range instability. The control algorithm of Multi-Stepping can make stepper motor has smooth system performance. The control algorithm of torque compensation can improve the torque of motor in the high speed. The control algorithm of motor self-test and parameter auto-setup technology offers optimum responses with different motors and easy-to use. The control algorithm of smoothness can enhance the acceleration and deceleration of motor. Its unique features make the 2DM2280 to be an ideal solution for applications.

Features

1. Parameter auto-setup and motor self-test
2. Multi-Stepping inside
3. Small noise, low heating, smooth movement
4. Torque compensation in high speed
5. Variable current control technology, High current efficiency
6. Accelerate and decelerate control inside, Great improvement in
smoothness of starting or stopping the motor
7. Storage the position of motor
8. Optically isolated input and compatible with 5V or 24V
9. User-defined micro steps
10. Microstep resolutions and Output current programmable
11. Over current, over voltage and low voltage protection
12. Green light means running while red light means protection or off line

Current Selection:

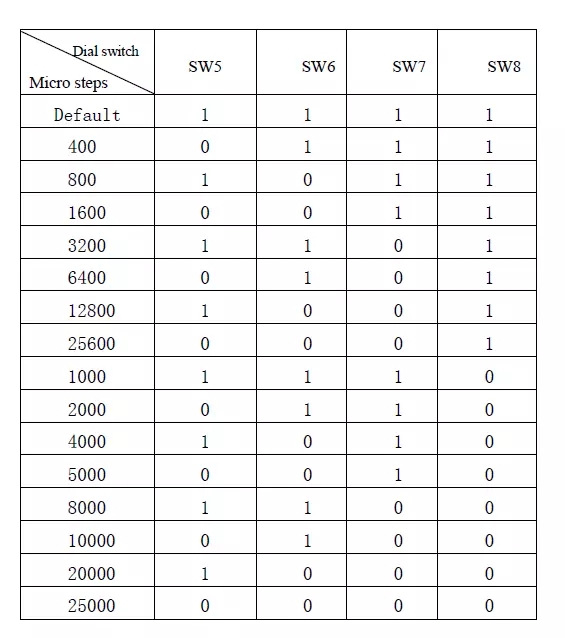

Microstep Selection:

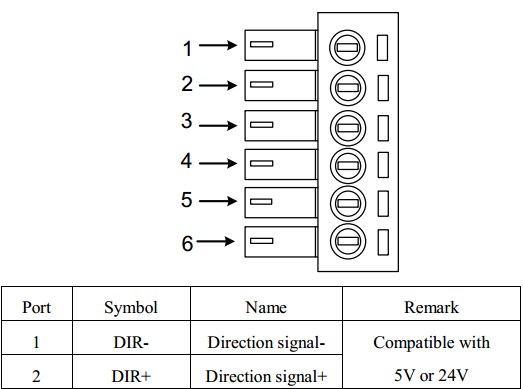

Ports Introduction:

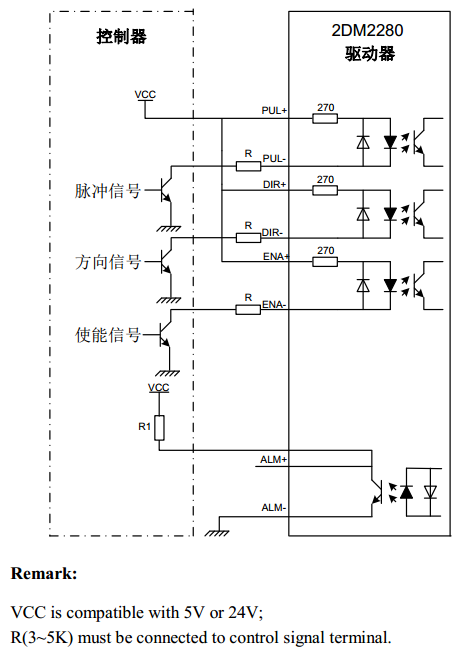

Connections to Control Signal:

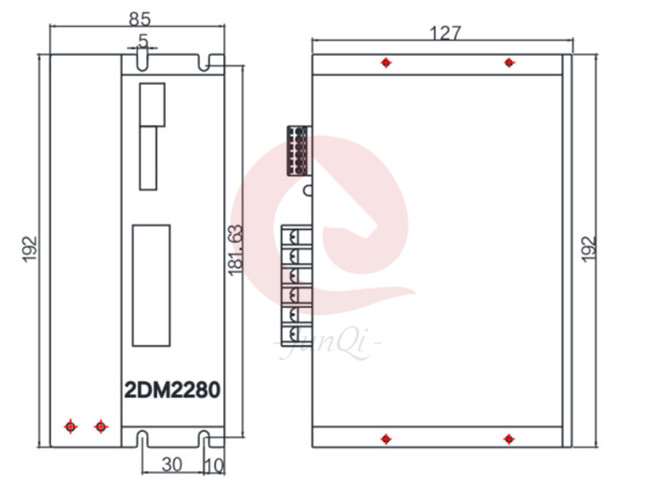

Mechanical Dimension(mm):

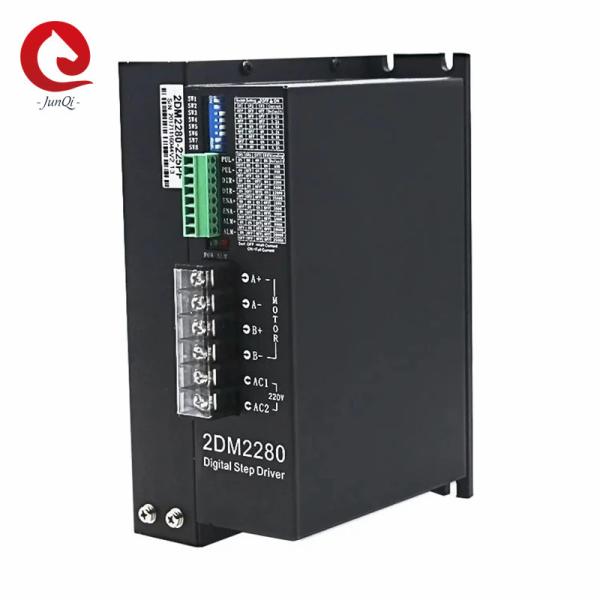

Product Overviews:

More Driver for choosing:

In order to improve the performance of stepper motors, subdivision drives have been widely used. The principle of the subdivision drive is to change the angle of the synthesized magnetic field by changing the magnitude of the phase current, so that a step angle can be subdivided into multiple steps. This driver is mainly used for stepper motors.

Packing:

Cardboard boxes plus foam packaging. We can also pack the goods according to customer's requirements.

Certificate:

Transportation:

At present, our company supports a variety of modes of transport, or according to customer's needs to choose the mode of transportation.

FAQ:

1.Q: Can I get some samples first?

A: Sure, we are honored to offer you samples for your check.

2.Q: Do you have the products in stock?

A: Our products are manufactured according to your order except the normal products.

3.Q: What's the delivery time?

A: It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed
