NEMA24 closed loop stepper motor and driver

Closed Loop Servo Motor:

1. Stepper motor closed loop system, never lose step.
2. Higher output torque and working speed than normal stepper motor.
3. Automatic current adjustment based on load, lower temperature rising.
4. Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter.
5. Motor work smoothly and low vibration, high dynamic performance at acceleration and deceleration.
6. No vibration from high speed to zero speed.

Motor Parameter:

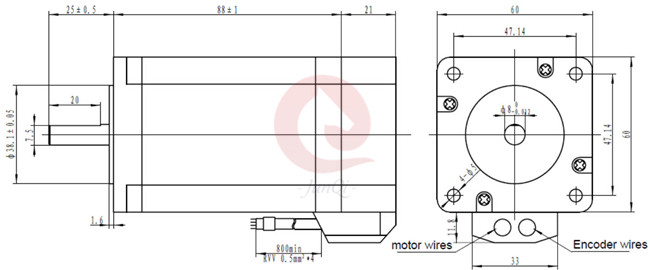

Motor Dimension(mm):

Torque/Frequency Curve:

HSS60 Driver:

Overview:

HSS60 is 2 phase nema 24 series hybrid stepper servo driver. It adopts new generation 32 bit DSP and vector control technology, which can avoid the stepper motor losing steps and ensure the accuracy of the motor. The torque reducing is much lower than open loop stepper motor when it is at higher speed. The high speed performance and torque are enhanced in a great extent. Meanwhile the current control is based on the load, that can reduce the motor temperature rising effectively, then can extend the using life of the motor. The build-in place in position and alarm output signal can help the upper monitor to monitor and control. The function of position ultra difference alarm can ensure the machine work safely. The closed loop system is an ideal improvement and a good replacement of open loop system, Besides that, it also have some function of AC servo motors, but price is just half of AC servo.

Features:

1. Position error correction and never lose steps
2. Quick response and perfect acceleration, High torque at high speed
3. Automatic current adjustment based on load, lower temperature rising
4. Over-current, over-voltage and position ultra difference protection function
5. Pulses response frequency can reach 200KHZ
6. 16 kinds microsteps choice, highest 51200microsteps/rev.
7. Drive nema 24 series 3N.m closed loop stepper motor
8. Voltage range: DC24V~50V

Electrical Parameter:

Applications:

The products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments,

stage light equipment, robot, CNC, music fountain, and other industral automatic equipment

Microstep Selection:

Mechanical Dimension(mm):

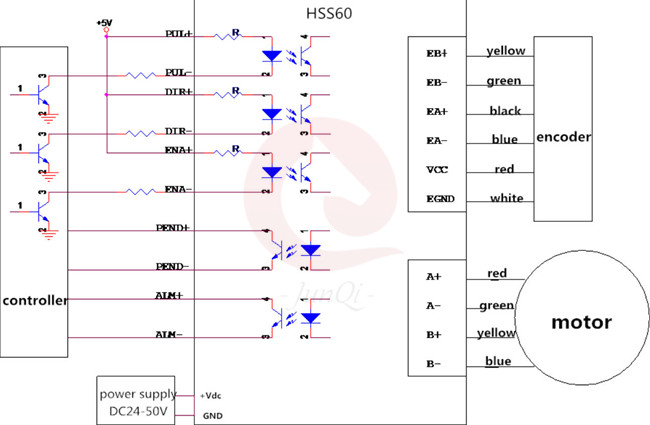

Diagram:

Packing:

Cardboard boxes plus foam packaging. We can also pack the goods according to customer's requirements.

Certificate:

Transportation:

At present, our company supports a variety of modes of transport, or according to customer's needs to choose the mode of transportation.
