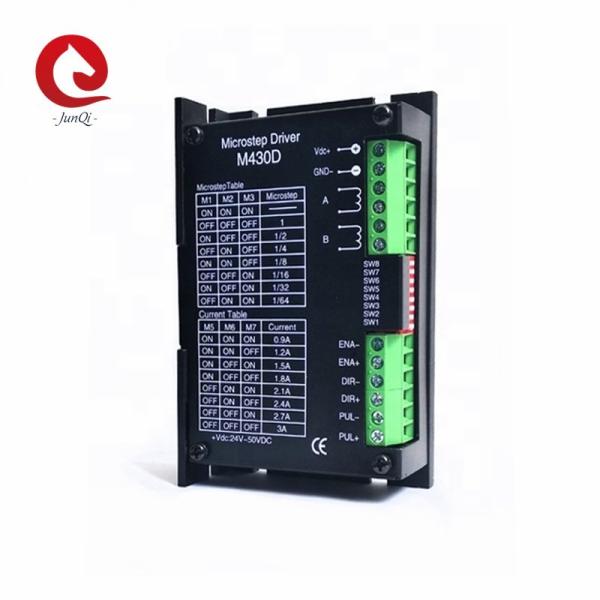

M430D 2 phase stepper motor driver

Features

1. 2phase stepper driver, adoption of bipolar constant-current chopper technology

2. Low-noise, low-vibration and low temperature rising

3. Voltage 18-40VDC

4. With 8 stalls output current setting, current range 0.9-3.0A

5. With 7 stalls microstep subdivision setting

6. Automatic Half current, motor wires misconnected protection

7. Internal optical isolation, highest frequency response 200KHZ

8. Suitable for nema 17, nema 23 stepper motor current under 3.0A

Current Selection:

Microstep Selection:

Driver Functions Descriptions:

Signal Interface Details:

The internal interface circuits of the driver are isolated by the opt coupler signals,

R in the figure is an external current limiting resistor. The Connection is differential.

And it has a good anti-jamming performance.

Control Signal and external interface.

Mechanical Dimension(mm):

Application:

It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It alsways performs well when it is used in quipment which requires for low-vibration, low-noise, high-precision and high-velocity.

Packing:

Cardboard boxes plus foam packaging. We can also pack the goods according to customer's requirements.

Certificate:

Transportation:

At present, our company supports a variety of modes of transport, or according to customer's needs to choose the mode of transportation.

FAQ:

1.Q: Can I get some samples first?

A: Sure, we are honored to offer you samples for your check.

2.Q: Do you have the products in stock?

A: Our products are manufactured according to your order except the normal products.

3.Q: What's the delivery time?

A: It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed
