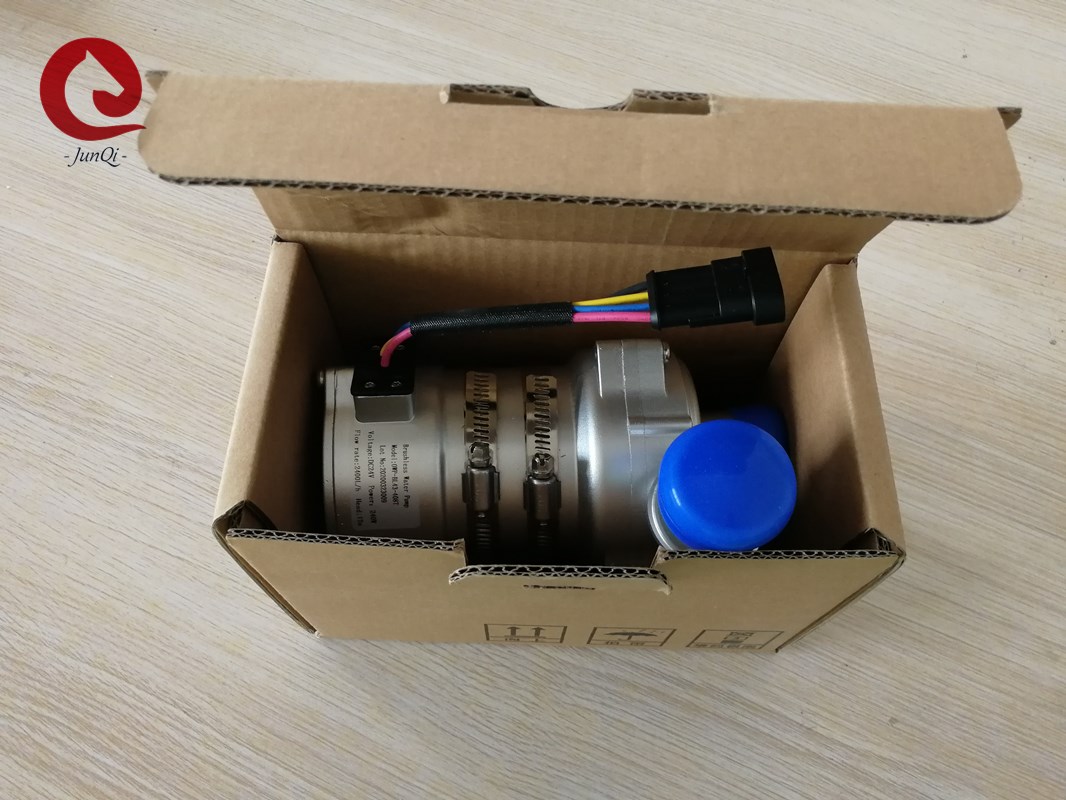

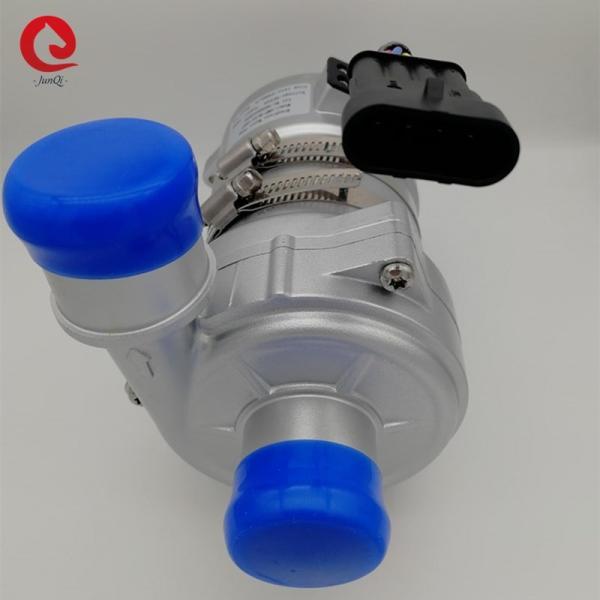

DC 24 V 240W automotive Electric brushless motor Water Pump For BEV Bus / PHEV Vehicles coolant circulation with PWM
Boosting/circulation/Variable-frequency/Low-noise/centrifugal pump
PWM control/Fault diagnosis
■ Applications
Widely used in hybrid bus, hybrid passenger car, electric vehicles,
trains, ships and other heating and cooling circulation system.
■ Technical description (related parts in contact with the liquid)
Pump head housing: Die casting aluminum alloys
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft sleeve: carborundum composite materials
Shaft: stainless steel(3CR14) shaft
Magnet housing: PPS plastic capsulation
Seal ring: EPDM
EMC: Grade 3
Noise:≤61dB
■ Driving device (Including motor)
Driving rotor: PPS plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless DC motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and
anodizing +PE powder coating..
Bracket: steel
Bracket hoop: US 304 stainless steel
Waterproof based on IP68 rating (en60529)
Connector model: AMP282106-1 (matched Plug AMP282088-1)
Nozzle diameter:38mm (1.5 inch)
■ Mounting instruction
OWP-BL43-408T series pumps are centrifugal pumps which require
pre-filled,
The pump installed in the lowest position of the system to ensure
that the impeller is always immersed in the liquid, or pre-filled
the pump before power on .
1: Pump should not be dry-running, even though it can dry-running
for 15 minutes (after 15 minutes dry-running, it will automatically
stop), Dry running will makes noise, also increasing abrasion to
the shaft and shaft sleeve.
2:Use the recommended diameter pipe connecting the pump inlet, if
you use a smaller diameter hose pump inlet, Due to the negative
pressure in the pump, the outside air easier enter to the pump
through the pipeline, it will make the pump performance
degradation, and also the air bubbles make damage to the pump.
3: As viewed from the pump inlet direction, the impeller rotates
clockwise (see the arrow on the outlet port).
4: The pump can be installed vertically or horizontally mounted
(see figure 1 ) When installed vertically, the outlet port should
be upward .
5:In order to avoid the dry- running (air get stuck in
impeller),the water pump outlet port should be vertical or in the
upper of the impeller. (see figure 1 )
6: The connected pipe should be vertically mounted (or no elbow in
20cm )to make the air discharged easily, the outlet pipe should not
be used less than 90 degrees elbow (see figure 2).
7: Can't use the seawater or other heavy pollution with big grain
impurity liquid as the liquid medium .
■ Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +120℃ (-40°F to +248°F)
Storage temperature: -40℃ to +70℃ (-40°F to +158°F)
(up to 100 ℃, but it will shorten the service life)
■ System pressure
-0.2 to 2.5 bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated
voltage and 36℃(86°F) ambient temperature.
■ Voltage range
Rated 24V water pump, workable range 18V - 32V
Although the motor can be used in a wide range of voltage and
temperature, but excessive or too low voltage and temperature will
affect the service life of the motor, the pump can not be exposed
to thermal radiation ambient.
Medium liquid: liquid mixture (Water with below 60% glycol)
■ Electrical parameter
Working Voltage (VDC) | Rated power (W) | Rated flow (L/H) | Dimensions (mm) | Weight (g) |
| 18V-32V(24V) | 240W | Q=2400L/H, H=17m | 185*90*155 | 2200g |
Connector model and the corresponding electrical properties (see
figure 3):
| AMP282106-1 | 1( Black) | 2( Yellow) | 3(Blue) | 4(Red) |
| (matched Plug AMP282088-1) | GND | Fault feedback | PWM | +24V |

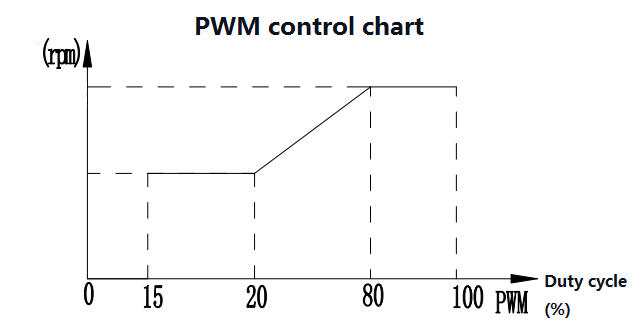

■PWM character
| Duty Cycle | Description | Remark: 1:PWM duty cycle metrical error ±2% 2:PWM voltage:24VDC, frequency:1 KHz 3: Recommended PWM frequency:500Hz 4: Recommended 0% duty as PWM disconnect |
| 0%≤duty≤15% | PWM mode (stop) | |
| 15%≤duty≤20% | PWM mode (Min speed) | |
| 20%≤duty≤80% | PWM mode (Linear speed control range) | |
| 80%≤duty≤100% | PWM mode (max speed limit) |
| Wire dia. | The longest wire used * |
| 24V | |
| 1.5 mm² | 16m |
| 2.5 mm² | 25m |
| 3 mm² | 31m |
| 4 mm² | 40m |
Recommended Wire size is (Based on 3% voltage drop)
* The length of the wire means the distance from pump to the battery
■ Attentions
1. Working ambient temperature:-40℃--120℃, should try to avoid
close to three-element catalytic, gas discharge pipe system and
engine during the installation, ensure the working environment
temperature.
2.The installation position of the water pump should as much as
possible close to the low water level , to extend the service life
of the pump.
4. Please use the pump far from the dusty environment, the dust is
harmful to reduce the service life
5. Pay attention to the purity of the water, avoid to jam and
impeller-blocked to reduce the service life of pump
■ Performance parameter
■External dimension
|
|
