DM756D 2 phase Digital stepper motor driver

Features

1. Adoption of 32-bit DSP, pure sine wave subdivision technology
2. Low-noise, low-vibration and low temperature rising
3. Voltage 24-70VDC
4. With 8 stalls output current setting, current range 2.1-5.6A
5. With 16 stalls microstep subdivision setting
6. Automatic half current, self-test, over voltage, under voltage, over current protection
7. Internal optical isolation, highest frequency response 200KHZ
8. Suitable for nema 23, nema 34 stepper motor current under 5.6A

Current Selection:

Microstep Selection:

Default: Customized according to customers’ requirements.

Mechanical Dimension(mm):

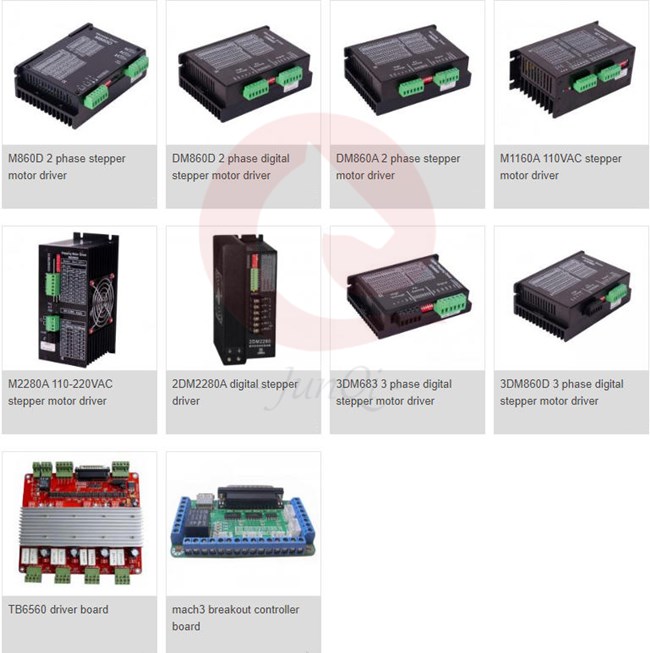

More Driver for choosing:

In order to improve the performance of stepper motors, subdivision drives have been widely used. The principle of the subdivision drive is to change the angle of the synthesized magnetic field by changing the magnitude of the phase current, so that a step angle can be subdivided into multiple steps. This driver is mainly used for stepper motors.

Packing:

Cardboard boxes plus foam packaging. We can also pack the goods according to customer's requirements.

Certificate:

Transportation:

At present, our company supports a variety of modes of transport, or according to customer's needs to choose the mode of transportation.

FAQ:

1.Q: Can I get some samples first?

A: Sure, we are honored to offer you samples for your check.

2.Q: Do you have the products in stock?

A: Our products are manufactured according to your order except the normal products.

3.Q: What's the delivery time?

A: It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed
