| Brand Name : | Junqi |
| Model Number : | JQM-32RS385 |
| Certification : | CE,ROHS, UL |
| Price : | USD6-usd8/pc (Negotiable) |
| Payment Terms : | L/C, T/T, Western Union,PAYPAL |
| Supply Ability : | 10000PCS/Month |
| Delivery Time : | as confirmed |
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| JQM-3850123000 | 12 | ≤70 | 3000 | ≤260 | 1950 | 50 | 1.02 | ≥128 | ≥520 |
| JQM-3850124500 | 12 | ≤90 | 4500 | ≤460 | 3500 | 50 | 1.83 | ≥202 | ≥1300 |
| JQM-3850129000 | 12 | ≤200 | 9000 | ≤670 | 7800 | 50 | 4.00 | ≥340 | ≥2900 |
| JQM-3850243300 | 24 | ≤80 | 3300 | ≤250 | 2750 | 74 | 2.13 | ≥400 | ≥440 |
| JQM-3850247400 | 24 | ≤120 | 7400 | ≤370 | 6400 | 60 | 4.02 | ≥400 | ≥1580 |
Technical Data of Gearbox:
| Reduction Stage | 2 | 3 | 4 | 5 | 6 | 7 |
| Reduction Ratio | 5.75K | 13K, 15K | 28K, 32K, 38K | 61K, 71K, 82K, 95K | 135K, 156K, 181K, 211K, 245K | 296K, 344K, 400K, 464K, 540K, 627K |
| Length of Gearbox "L" mm | 17.5 | 20 | 22.5 | 25 | 27.5 | 30 |
| Gearbox Efficiency | 81% | 73% | 65% | 59% | 53% | 48% |

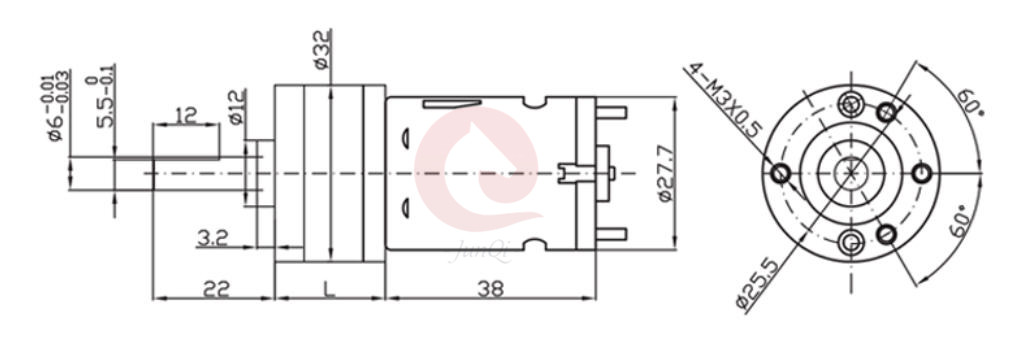

Gear Motor Mechanical Size:
Gear Motor Electric Data:
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
| JQM-32RS38500610500-13K | 6V | 807 | ≤1000 | 601 | ≤3600 | 0.91 | 5.61 | ≥6800 | 3.3 |
| JQM-32RS3850129000-82K | 12V | 110 | ≤360 | 90 | ≤1300 | 2.7 | 2.49 | ≥3000 | 12 |
| JQM-32RS3850244500-400K | 24V | 11 | ≤105 | 7 | ≤300 | 11 | 0.79 | ≥600 | 30 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
Notes: Above is our standard models for your reference, we can make as customer request.
Professional Factory:
Certificate Photos :
Packing:
Transportation:
Motor Application Fields:
Our motor products contain range:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
|
|
