| Brand Name : | Junqi |
| Model Number : | JQM-12SSN30 |
| Certification : | CE,ROHS, UL |
| Price : | USD4-usd5/pc (Negotiable) |
| Payment Terms : | L/C, T/T, Western Union,PAYPAL |
| Supply Ability : | 10000PCS/Month |
| Delivery Time : | as confirmed |
JQM-12SSN30 micro metal gear motor
1. Main voltage: 1.5V,2.5V,3V,6V,12VDC
2. Typical applications: Automatic door-lock,projector, hairdressing equipment
3. Square Gearbox size:12mm*10mm*L
4. Torque:50gf.cm~2000gf.cm
5. Direction: CW,CCW
6. Voltage, speed, and shaft can be customized based
7. Encoder 3PPR available
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | |
| JQM-N30-006-10000 | 6 | ≤30 | 10000 | ≤110 | 7500 | 4 | 0.3 | ≥16 | ≥280 |
| JQM-N30-006-15000 | 6 | ≤55 | 15000 | ≤200 | 11250 | 6 | 0.7 | ≥24 | ≥490 |
| JQM-N30-006-25000 | 6 | ≤100 | 25000 | ≤370 | 18750 | 8 | 1.5 | ≥32 | ≥1500 |
Technical Data of Gearbox:
| Number of stages | 2 | 4 | 5 | 7 |
| Reduction ratio | 3,5,10 | 17,20,30,36 50,63,100 | 110,150,210 250,298,380 | 372,625,1000 |
| Gearbox length “L”mm | 9 | 9 | 9 | 12 |
| Breaking torque(kgf.cm) | 0.6 | 0.9 | 1.2 | 2 |
| Gearbox efficiency | 81% | 65% | 59% | 48% |
Gear Motor Mechanical Size:
Gear Motor Electric Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | A | r/min | A | r/min | kgf.cm | W | kgf.cm | A | |
| JQM-12SSN3000315000-250K | 3.0 | 0.06 | 57.3 | 0.28 | 45.9 | 0.60 | 0.28 | 2.90 | 1.18 |
| JQM-12SSN3000317500-50K | 3.0 | 0.12 | 322.7 | 0.46 | 246.6 | 0.21 | 0.52 | 0.88 | 1.55 |
| JQM-12SSN303.322000-100K | 3.3 | 0.11 | 220.2 | 0.53 | 178.2 | 0.38 | 0.69 | 1.97 | 2.33 |
| JQM-12SSN303.322500-100K | 3.3 | 0.13 | 219.1 | 0.59 | 174.1 | 0.37 | 0.66 | 1.80 | 2.36 |
| JQM-12SSN304.520500-50K | 4.5 | 0.08 | 393.5 | 0.41 | 321.0 | 0.25 | 0.82 | 1.40 | 1.85 |
| JQM-12SSN304.523400-63K | 4.5 | 0.11 | 360.1 | 0.48 | 294.2 | 0.30 | 0.93 | 1.70 | 2.15 |
| JQM-12SSN304.526300-63K | 4.5 | 0.15 | 398.3 | 0.70 | 316.3 | 0.43 | 1.41 | 2.10 | 2.83 |
| JQM-12SSN3000517500-50K | 5.0 | 0.03 | 356.5 | 0.17 | 301.9 | 0.11 | 0.35 | 0.73 | 0.94 |
| JQM-12SSN3000520000-100K | 5.0 | 0.05 | 196.9 | 0.30 | 164.4 | 0.42 | 0.71 | 2.60 | 1.58 |
| JQM-12SSN3000610000-100K | 6.0 | 0.02 | 105.9 | 0.08 | 86.0 | 0.17 | 0.15 | 0.90 | 0.33 |
| JQM-12SSN3000610000-150K | 6.0 | 0.02 | 67.8 | 0.08 | 53.4 | 0.35 | 0.19 | 1.63 | 0.32 |
| JQM-12SSN3000610000-250K | 6.0 | 0.02 | 42.7 | 0.09 | 33.6 | 0.57 | 0.20 | 2.68 | 0.32 |
| JQM-12SSN3000610000-298K | 6.0 | 0.02 | 36.3 | 0.08 | 29.1 | 0.61 | 0.18 | 3.10 | 0.33 |
| JQM-12SSN3000612000-30K | 6.0 | 0.04 | 390.0 | 0.13 | 291.8 | 0.07 | 0.20 | 0.26 | 0.37 |
| JQM-12SSN3000615000-100K | 6.0 | 0.03 | 159.7 | 0.12 | 132.2 | 0.19 | 0.26 | 1.10 | 0.58 |
| JQM-12SSN3000615000-150K | 6.0 | 0.03 | 105.9 | 0.12 | 87.8 | 0.34 | 0.31 | 2.00 | 0.59 |
| JQM-12SSN3000615000-250K | 6.0 | 0.03 | 64.8 | 0.15 | 51.5 | 0.70 | 0.37 | 3.40 | 0.60 |
| JQM-12SSN3000615000-298K | 6.0 | 0.03 | 50.9 | 0.13 | 40.6 | 0.73 | 0.31 | 3.60 | 0.54 |
| JQM-12SSN3000623500-298K | 6.0 | 0.06 | 78.6 | 0.30 | 64.4 | 0.97 | 0.64 | 5.38 | 1.39 |
Notes: Above is our standard models for your reference, we can make as customer request.
Professional Factory:
Certificate Photos :
Packing:
Transportation:

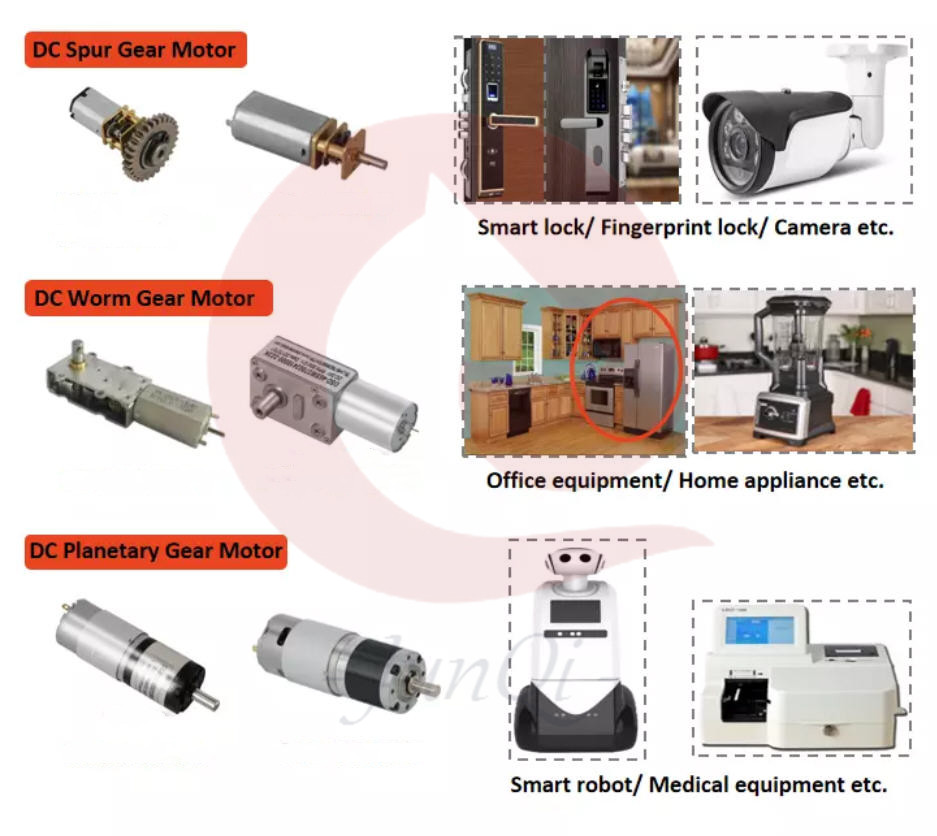

Motor Application Fields:
Our motor products contain range:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
|
|
