| Brand Name : | Junqi |
| Model Number : | JQM-16RS050 |
| Certification : | CE,ROHS, UL |
| Price : | USD4-usd6/pc (Negotiable) |
| Payment Terms : | L/C, T/T, Western Union,PAYPAL |
| Supply Ability : | 10000PCS/Month |
| Delivery Time : | as confirmed |
JQM-16RS050 micro Spur gear motor
1. Main voltage: 3-24VDC
2. Typical applications: Automatic door-lock, projector,
hairdressing equipment
3. Round Gearbox size: φ16mm*L
4. Torque: 0.05kgf.cm~2.5kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based
7. Encoder 3PPR available
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | |
| JQM-050-006-9000 | 6 | ≤60 | 9000 | ≤260 | 7500 | 8 | 0.6 | ≥30 | ≥550 |
| JQM-050-006-12000 | 6 | ≤70 | 12000 | ≤300 | 9300 | 10 | 1.0 | ≥40 | ≥1000 |
| JQM-050-012-9000 | 12 | ≤30 | 9000 | ≤130 | 7500 | 8 | 0.6 | ≥30 | ≥300 |
| JQM-050-012-12000 | 12 | ≤50 | 12000 | ≤200 | 10000 | 10 | 1.0 | ≥40 | ≥600 |
Technical Data of Gearbox:
| Number of stages | 3 | 4 | 5 | 6 | 7 |
| Reduction ratio | 10,14 | 23,28,32,40 | 46,56,65 79,91,112 | 130,159,183 224,257,315 | 365,448,515 631,725,889 |
| Gearbox length “L”mm | 11 | 12.5 | 14 | 15.5 | 17 |
| Breaking torque(kgf.cm) | 1 | 2 | 3 | 4 | 4 |
| Gearbox efficiency | 73% | 65% | 59% | 53% | 48% |

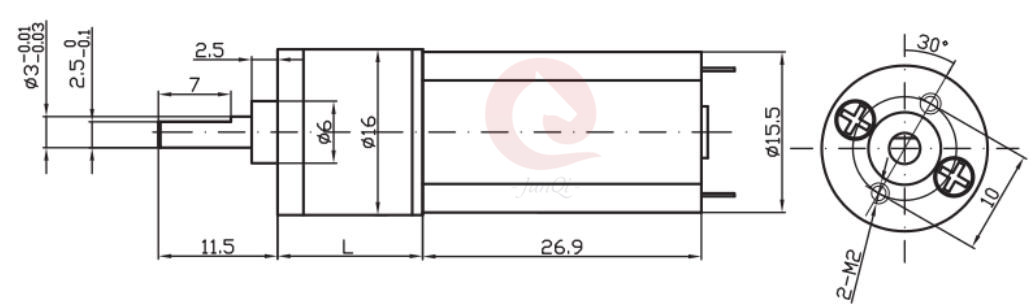

Gear Motor Mechanical Size:
Gear Motor Electric Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | A | r/min | A | r/min | kgf.cm | W | kgf.cm | A | |
| JQM-16RS05000611400-365K | 6.00 | 0.07 | 32.2 | 0.27 | 25.5 | 1.20 | 0.32 | 5.82 | 1.04 |
| JQM-16RS0500068000-365K | 6.00 | 0.07 | 23.4 | 0.26 | 17.8 | 1.90 | 0.35 | 7.88 | 0.86 |
| JQM-16RS0500088300-46K | 8.00 | 0.02 | 183.1 | 0.11 | 144.6 | 0.16 | 0.24 | 0.76 | 0.42 |
| JQM-16RS05001210500-515K | 12.00 | 0.03 | 20.0 | 0.11 | 15.5 | 1.30 | 0.20 | 5.70 | 0.35 |
| JQM-16RS05001215000-40K | 12.00 | 0.03 | 376.3 | 0.16 | 303.7 | 0.23 | 0.73 | 1.21 | 0.70 |
| JQM-16RS05001216000-315K | 12.00 | 0.07 | 56.9 | 0.29 | 47.2 | 2.30 | 1.14 | 13.70 | 1.35 |
| JQM-16RS05001216000-889K | 12.00 | 0.06 | 20.4 | 0.12 | 13.8 | 2.16 | 0.31 | 6.70 | 0.25 |
| JQM-16RS0500128000-112K | 12.00 | 0.02 | 70.6 | 0.07 | 52.4 | 0.35 | 0.19 | 1.35 | 0.21 |
| JQM-16RS0500128000-448K | 12.00 | 0.02 | 18.6 | 0.06 | 13.4 | 0.92 | 0.13 | 3.32 | 0.17 |
| JQM-16RS0500128000-515K | 12.00 | 0.02 | 15.9 | 0.065 | 12 | 0.97 | 0.12 | 3.93 | 0.20 |
| JQM-16RS0500128000-631K | 12.00 | 0.03 | 12.2 | 0.07 | 8.0 | 1.43 | 0.12 | 4.20 | 0.15 |
Notes: Above is our standard models for your reference, we can make as customer request.
Professional Factory:
Certificate Photos :
Packing:
Transportation:
Motor Application Fields:
Our motor products contain range:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
|
|
