| Brand Name : | Junqi |
| Model Number : | JQM-65ss3530 |
| Certification : | CE,ROHS, UL |
| Price : | USD6-usd10/pc (Negotiable) |
| Payment Terms : | L/C, T/T, Western Union,PAYPAL |
| Supply Ability : | 10000PCS/Month |
| Delivery Time : | as confirmed |

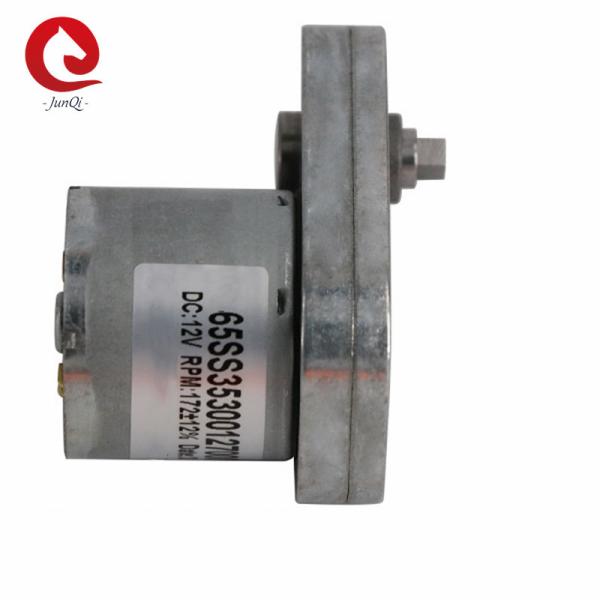

Gear Motor Mechanical Size:
Technical Data of Gearbox:
| Reduction Stage | 3 | 4 | 5 |
| Reduction Ratio | 40.5K, 67.5K | 135K, 225K | 450K |
| Length of Gearbox "L" mm | 12 | 12 | 12 |
| Gearbox Efficiency | 73% | 65% | 59% |
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| JQM-35300123000 | 12 | ≤23 | 3000 | ≤170 | 2250 | 40 | 0.5 | ≥144 | ≥400 |
| JQM-35300124500 | 12 | ≤45 | 4500 | ≤211 | 3600 | 46 | 1.7 | ≥207 | ≥1060 |
| JQM-35300126000 | 12 | ≤54 | 6000 | ≤367 | 4800 | 62 | 3.1 | ≥279 | ≥1840 |
| JQM-35300243000 | 24 | ≤20 | 3000 | ≤50 | 2400 | 45 | 1.1 | ≥202 | ≥210 |
| JQM-35300244500 | 24 | ≤33 | 4500 | ≤114 | 3600 | 50 | 1.9 | ≥225 | ≥480 |
| JQM-35300246000 | 24 | ≤30 | 6000 | ≤200 | 4800 | 76 | 3.8 | ≥342 | ≥840 |
Gear Motor Electric Data:
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
| JQM-65SS35300126000-225K | 12V | 26 | ≤120 | 22 | ≤530 | 9 | 2.0 | ≥1300 | ≥41 |
| JQM-65SS35300126000-450K | 12V | 13.3 | ≤130 | 10.6 | ≤250 | 16 | 1.7 | ≥1200 | ≥50 |
| JQM-65SS35300124500-67.5K | 12V | 66 | ≤100 | 51 | ≤420 | 2.6 | 1.4 | ≥950 | ≥10.5 |
| JQM-65SS35300124500-225K | 12V | 20 | ≤75 | 16 | ≤300 | 6 | 1.0 | ≥800 | ≥30 |
| JQM-65SS35300123000-450K | 12V | 6.6 | ≤90 | 5.2 | ≤160 | 8 | 0.4 | ≥340 | ≥32 |
| JQM-65SS35300246000-101K | 24V | 60 | ≤100 | 50 | ≤200 | 3 | 1.5 | ≥800 | ≥20 |
| JQM-65SS35300243000-450K | 24V | 6.6 | ≤30 | 4.8 | ≤110 | 8.6 | 0.4 | ≥210 | ≥32 |
| JQM-65SS35300243500-225K | 24V | 15 | ≤50 | 10 | ≤130 | 8.8 | 0.9 | ≥380 | ≥38 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
Notes: Above is our standard models for your reference, we can make as customer request.
Professional Factory:
Certificate Photos :
Packing:
Transportation:
Motor Application Fields:
Our motor products contain range:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
|
|
