To Create Value For Customers. Integrity and Win-Win.
5 Years
| Ask Lasest Price | |
| Brand Name : | Junqi |
| Model Number : | JQM-33RS385 |
| Certification : | CE,ROHS, UL |
| Price : | USD4-usd8/pc (Negotiable) |
| Payment Terms : | L/C, T/T, Western Union,PAYPAL |
| Supply Ability : | 10000PCS/Month |
| Delivery Time : | as confirmed |
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| JQM-3850123000 | 12 | ≤70 | 3000 | ≤260 | 1950 | 50 | 1.02 | ≥128 | ≥520 |
| JQM-3850124500 | 12 | ≤90 | 4500 | ≤460 | 3500 | 50 | 1.83 | ≥202 | ≥1300 |
| JQM-3850129000 | 12 | ≤200 | 9000 | ≤670 | 7800 | 50 | 4.00 | ≥340 | ≥2900 |
| JQM-3850243300 | 24 | ≤80 | 3300 | ≤250 | 2750 | 74 | 2.13 | ≥400 | ≥440 |
| JQM-3850247400 | 24 | ≤120 | 7400 | ≤370 | 6400 | 60 | 4.02 | ≥400 | ≥1580 |
Technical Data of Gearbox:
| Reduction Stage | 3 | 4 | 5 | 6 | 7 |
| Reduction Ratio | 20K | 50K | 125K | 312.5K | 781K |
| Length of Gearbox "L" mm | 17.7 | 19.9 | 22.2 | 24.4 | 26.75 |
| Gearbox Efficiency | 73% | 65% | 59% | 53% | 47% |

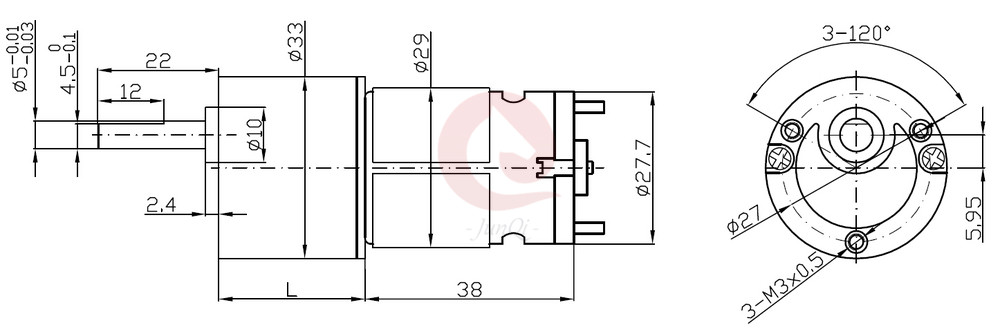

Gear Motor Mechanical Size:
Gear Motor Electric Data:
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
| JQM-33RS3850125000-20K | 12V | 250 | ≤200 | 176 | ≤460 | 0.9 | 1.63 | ≥910 | 2.9 |
| JQM-33RS3850246000-312.5K | 24V | 19 | ≤100 | 16 | ≤400 | 12.6 | 2.07 | ≥900 | 48 |
| JQM-33RS3850243000-312.5K | 24V | 10 | ≤50 | 9 | ≤100 | 3 | 0.28 | ≥300 | 25 |
| JQMD-33RS3850243000-781K | 24V | 3.8 | ≤60 | 2.8 | ≤130 | 20 | 0.57 | ≥300 | 80 |
| C | |||||||||
Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox
efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's
requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects
Notes: Above is our standard models for your reference, we can make as customer request.
Professional Factory:
Certificate Photos :
Packing:
Transportation:
Motor Application Fields:
FAQ:
Q: How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q: What is your trade Assurance?
A: 100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q: Do You Make Customized Product?
A: Yes,We Accpet IT.
Q: About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q: What is the payment term?
A: T/T and Paypal is used more,please contact us for details
Q: What is the quality level of your product?
A: We produce good quality, refuse to produce low quality.
|
|
