| Brand Name : | Junqi |

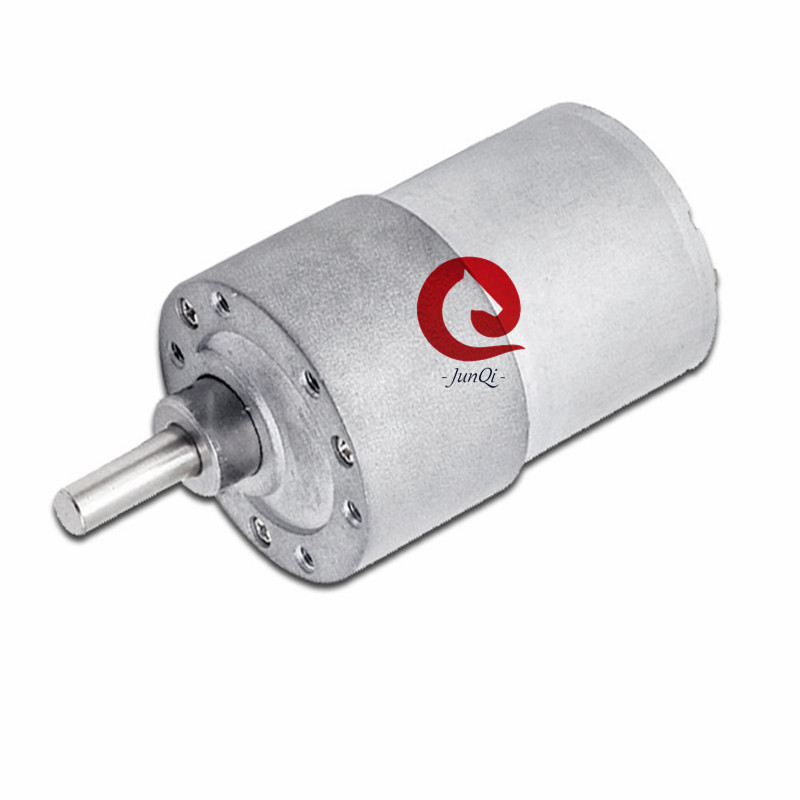

| Model Number : | JQM-37RS3530 |
| Certification : | CE,ROHS, UL |
| Price : | USD5-usd8/pc (Negotiable) |
| Payment Terms : | L/C, T/T, Western Union,PAYPAL |
| Supply Ability : | 10000PCS/Month |
| Delivery Time : | as confirmed |
Technical Data of Gearbox:
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | |
| JQM-3530-012-3000 | 12 | ≤40 | 3000 | ≤240 | 2200 | 40 | 0.9 | ≥160 | ≥700 |
| JQM-3530-012-4500 | 12 | ≤60 | 4500 | ≤450 | 3300 | 50 | 1.7 | ≥300 | ≥1400 |
| JQM-3530-012-6000 | 12 | ≤90 | 6000 | ≤700 | 4500 | 60 | 2.8 | ≥350 | ≥2000 |
| JQM-3530-024-3000 | 24 | ≤20 | 3000 | ≤150 | 2200 | 40 | 0.9 | ≥160 | ≥400 |
| JQM-3530-024-4500 | 24 | ≤30 | 4500 | ≤230 | 3300 | 50 | 1.7 | ≥220 | ≥600 |
| JQM-3530-024-6000 | 24 | ≤45 | 6000 | ≤360 | 4500 | 60 | 2.8 | ≥330 | ≥900 |
Gear Motor Mechanical Size:
1.Main voltage : 6VDC,12VDC,24VDC
2.Typical applications :Smart Instrument, Digital product, Automatic door-lock, Medical equipment, Security monitoring,Smart home applicances,Robots…
3. Round Gearbox size: φ37mm*L
4. Torque: 0.5-20kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based
7. Encoder 13PPR available
Gear Motor Electric Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | A | r/min | A | r/min | kgf.cm | W | kgf.cm | A | |
| JQM-37RS35300068000-61K | 6.0 | 0.19 | 126.0 | 0.78 | 103.7 | 1.5 | 1.60 | 8.5 | 3.54 |
| JQM-37RS35300123000-270K | 12.0 | 0.03 | 10.1 | 0.14 | 8.5 | 6.8 | 0.60 | 41.6 | 0.73 |
| JQM-37RS35300123000-310K | 12.0 | 0.04 | 8.7 | 0.14 | 6.9 | 7.6 | 0.54 | 35.9 | 0.52 |
| JQM-37RS35300123000-61K | 12.0 | 0.02 | 44.3 | 0.10 | 36.5 | 1.3 | 0.49 | 7.4 | 0.47 |
| JQM-37RS35300123000-810K | 12.0 | 0.06 | 3.3 | 0.15 | 2.4 | 16.4 | 0.41 | 59.7 | 0.41 |
| JQM-37RS35300123000-90K | 12.0 | 0.03 | 33.2 | 0.13 | 26.6 | 2.1 | 0.58 | 10.6 | 0.54 |
| JQM-37RS35300124500-270K | 12.0 | 0.06 | 16.4 | 0.23 | 13.6 | 7.2 | 1.01 | 41.6 | 1.08 |
| JQM-37RS35300124500-310K | 12.0 | 0.07 | 13.7 | 0.33 | 11.1 | 13.1 | 1.50 | 69.9 | 1.49 |
| JQM-37RS35300125500-90K | 12.0 | 0.03 | 58.2 | 0.22 | 50.9 | 2.0 | 1.09 | 16.8 | 1.56 |
| JQM-37RS35300126000-30K | 12.0 | 0.09 | 208.0 | 0.40 | 176.3 | 1.1 | 2.10 | 7.6 | 2.14 |
| JQM-37RS35300126000-61K | 12.0 | 0.04 | 92.3 | 0.26 | 78.5 | 1.7 | 1.39 | 11.5 | 1.55 |
| JQM-37RS35300126000-90K | 12.0 | 0.04 | 63.5 | 0.24 | 53.2 | 2.5 | 1.34 | 15.0 | 1.25 |
| JQM-37RS35300126000-184K | 12.0 | 0.06 | 31.4 | 0.33 | 26.3 | 5.7 | 1.55 | 35.0 | 1.70 |
| JQM-37RS35300129000-61K | 12.0 | 0.09 | 149.3 | 0.48 | 128.9 | 1.9 | 2.60 | 14.3 | 2.96 |
| JQM-37RS35300129000-90K | 12.0 | 0.08 | 100.7 | 0.46 | 86.7 | 2.7 | 2.41 | 19.4 | 2.79 |
| JQM-37RS35300129500-184K | 12.0 | 0.19 | 50.1 | 0.78 | 38.7 | 8.1 | 3.24 | 36.0 | 2.80 |
| JQM-37RS35300243000-270K | 24.0 | 0.03 | 10.4 | 0.08 | 7.5 | 6.0 | 0.47 | 21.6 | 0.21 |
| JQM-37RS35300244500-552K | 24.0 | 0.02 | 9.1 | 0.09 | 7.1 | 10.4 | 0.76 | 47.0 | 0.34 |
| JQM-37RS35300246000-184K | 24.0 | 0.04 | 34.1 | 0.19 | 28.7 | 4.91 | 1.44 | 30.7 | 0.98 |
| JQM-37RS35300246000-270K | 24.0 | 0.05 | 21.8 | 0.20 | 18.4 | 10.46 | 1.97 | 65.4 | 1.04 |
| JQM-37RS35300246000-534K | 24.0 | 0.04 | 10.9 | 0.22 | 9.4 | 19.70 | 1.90 | 137.0 | 1.37 |
| JQM-37RS35300247000-10K | 24.0 | 0.04 | 699.2 | 0.23 | 603.7 | 0.45 | 2.79 | 3.2 | 1.45 |
| JQM-37RS35300249000-810K | 24.0 | 0.06 | 11.1 | 0.30 | 9.7 | 28.19 | 2.79 | 216.8 | 1.93 |
Notes: Above is our standard models for your reference, we can make as customer request.
