To Create Value For Customers. Integrity and Win-Win.
5 Years
| Ask Lasest Price | |
| Brand Name : | Junqi |
| Model Number : | JP400C-48V |
| Certification : | TS16949,ISO9001,CE |
| Price : | USD210-USD195 |
| Payment Terms : | T/T,,Western Union,Paypal |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | depend on the order quantity /Negotiable |
JUNQI 48V JP400C BLDC Water Pump 3500LPH H=20m 400W Stainless Pump For Energy Storage Battery Thermal Management Liquid Cooling System
Technical Parameter:
| Model | JP400C-48V |
| Rated Voltage | 48VDC |
| Rated Current | 9.3A |
| Operating Voltage | DC 36~58V |
| Rated Power | 400W |
| Workign environment | -40℃~85℃ |
| Working Medium | Antifreezing solution |
| Protection level | IP68 |
| Working Noise | ≤60dB ( Distance 1m) |
| Working life | ≥20000h |
| Weight | 3.3KG |
| Protection function | Blocked rotation, reverse connection, over voltage, low voltage, over current, over temperature, idling. |
Pumps Features:
1. Built-in a variety of protection functions and power reverse protection function;
2. Troubleshooting: When there is a fult, the fault feedback line is high, and when there is no fault, the fault feedback line is low ( the fault level is based on customer requirements.)
Working Performance Curve:
Port Description:
PWM Control Chart:
Application:
Commerical Vehicle Battery Energy Storage Battery Vehicle Thermal Management Data Center
Thermal Management Liquid Thermal Management Liquid System
Cooling Systme Cooling System
Work shop:

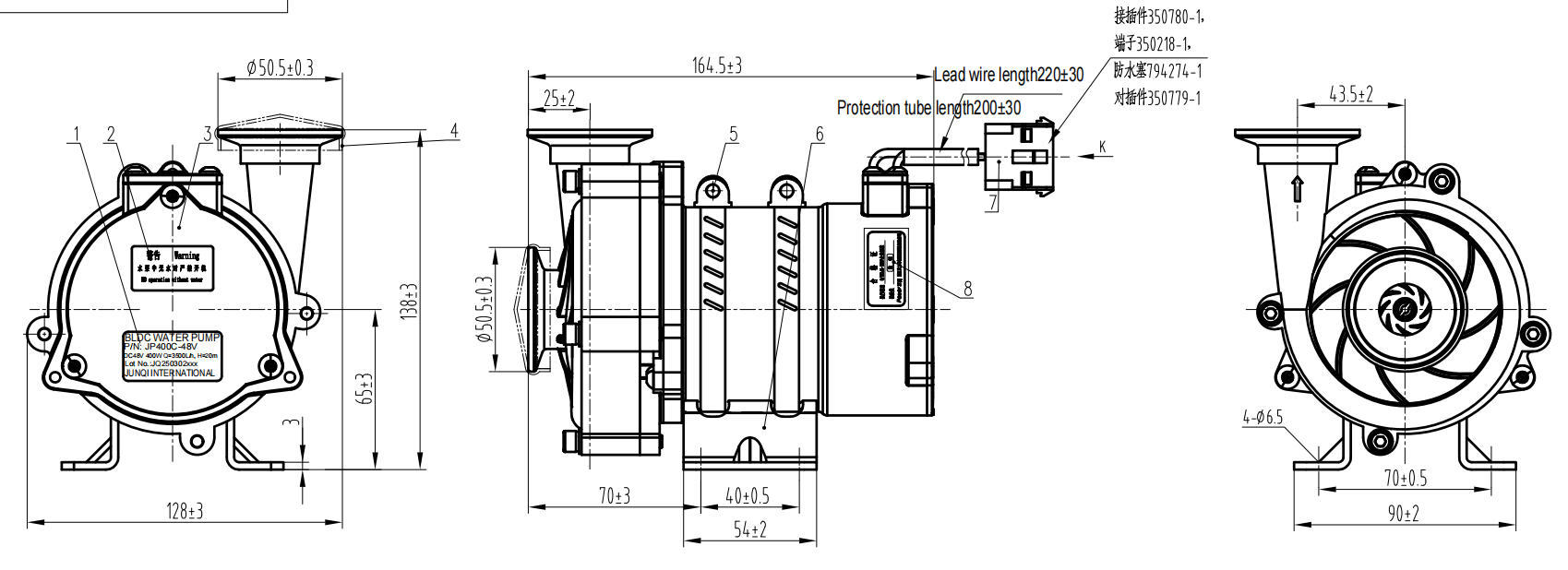

Dimensions(mm):
Certificate: Applications:
For more product information, please feel free contact with us via email: ivanzhu@junqitrading.com
|
|
