| Brand Name : | junqi |
| Model Number : | JP100-24V |
| Certification : | IS9001, TS16949,CE |
| Price : | USD100/PC ~USD120/PC |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 1000set/month |
| Delivery Time : | base on order, |

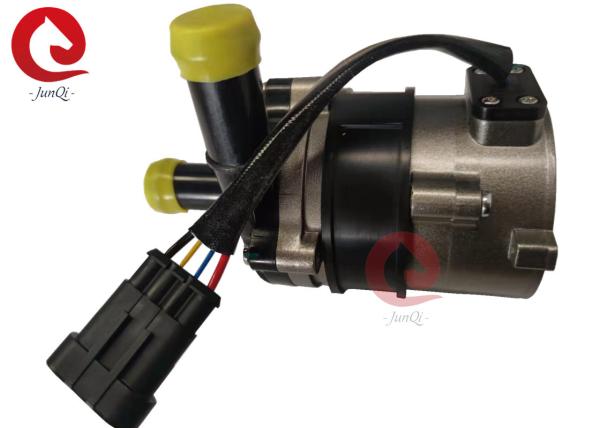

♣ Features
♦ Single stage centrifugal pump
♦ Magnetic force transmission (shield pump structure)
♦ High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
♦ With wide range operating temperature
♦ PWM signal speed controlling (optional PG signal feedback )
♦ With constant flow controlling
♦ Reverse polarity protection
♦ Dry running protection
♦ Over Voltage, over current protection
♦ Overload, over temperature protection
♦ Automobile grade electronic components
♣ Technical description (parts in contact with the liquid)
Pump head housing: PPS+GF
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft bearing: Carbon resin composite materials+ zirconia ceramic washer
Shaft: hollow stainless steel shaft
Rotor: nylon injection packed
Seal ring: EPDM
♣ Driving device (Including motor)
Driving electromagnet: magnet+nylon injection packed
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
Motor wire frame: PPA+GF (white)
Pump housing: aluminum alloy
Bracket: SUS 304 stainless steel
Bracket hoop: US 304 stainless steel+ Damping rubber ring
Waterproof based on IP68 rating (en60529)
Connector:3 Pins or 4Pins (with PG signal feedback)
Nozzle diameter:22.2mm (inner diameter:20mm)
♣Basic information
| Item | Value |
| Product Name | Electric Water Pump |
| Part No. | JP100-24V |
| Working Temperature | -40~85℃ |
| Medium(antifreeze) Temperature | ≤90℃ |
| Rated Voltage | 24VDC |
| Working voltage range | DC18~32V |
| Rated Currrent | ≤4.6A |
| Rated Flow Rate | 1800L/h |
| Rated Head | 8m |
| Rated Power | 100W |
| Noise | ≤45dB |
| Protection Level | IP68 |
| Service Life | more than 20000hours |
| Function | PWM Speed control / fauilt feedback (customized)/ fixed speed |

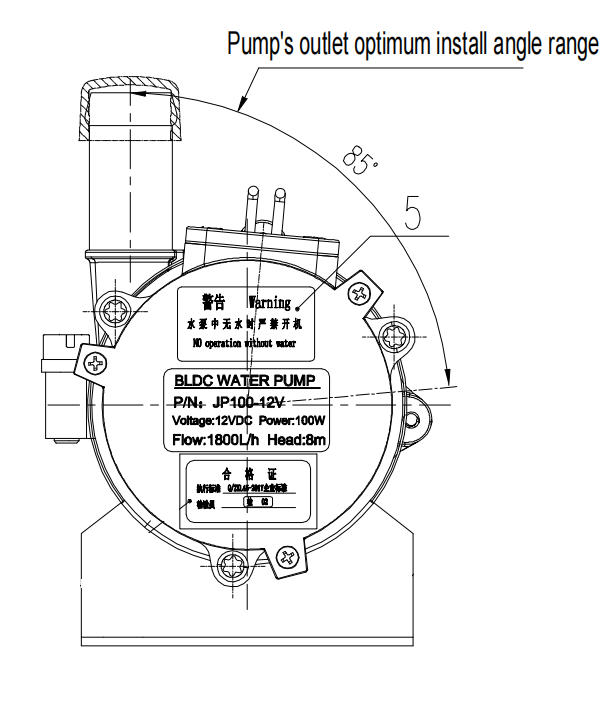

♣ Mounting instruction:
♣ Temperature parameter
Medium liquid temperature: -40℃ to +120℃ (-40°F to + 248°F)
Working ambient temperature: -40℃ to +100℃ (-40°F to +212°F)
Storage temperature: -40℃ to +70℃ (-40°F to +158°F)
(up to 100 ℃, but it will shorten the service life)
♣ System pressure
-0.2 to 2.5 bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.
♣ Connector model and Pins
♣ Attentions
1. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
2. The installation position of the water pump should as much as possible close to the low water level, to extend the service life of the pump.
3. In order to reduce water resistance, should as much as possible to reduce the number elbow in piping in the installation, ensure no any elbow within 20 cm from the pump.
4. Please use the pump far from the dusty environment, the dust is harmful to reduce the service life
5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump.

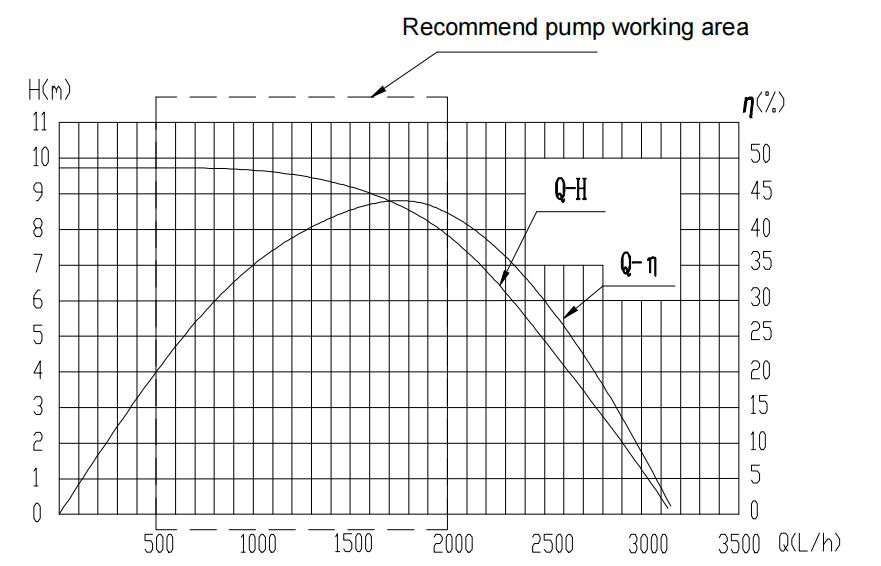

♣ Curve chart
♣PWM Control Description:
♣Overall dimensions
♣Water pump production Line:
♣Applications:
Apply to HEV(Hybrid Electrical Vehicle),EV(Electric Vehicles), trains, ships and other heating circulation and cooling circulation system.
|
|
